Vacuum drying oven, also known as (vacuum oven), combines the company's years of successful experience in box heating. Through continuous research and innovation, it breaks through traditional technology and creatively solves the “bottleneck“ in the heat conduction process

Product Introduction:

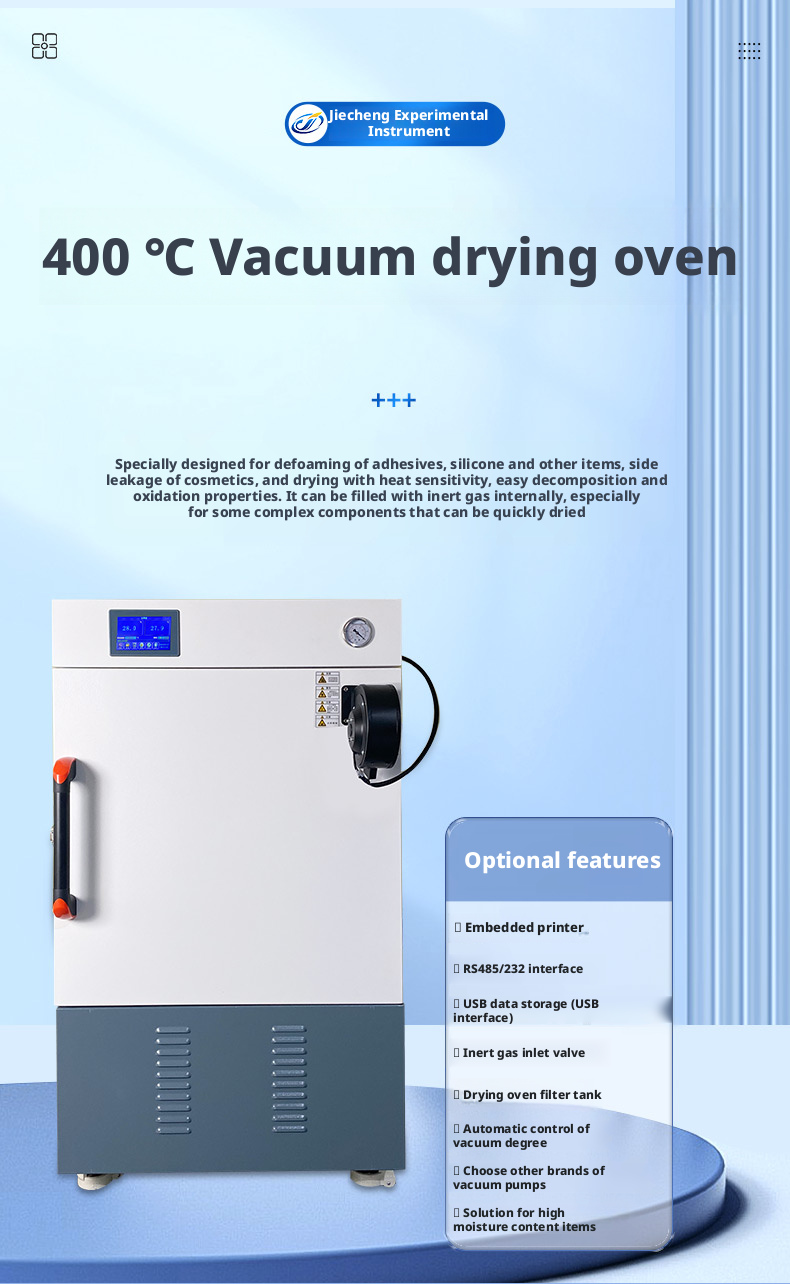

Vacuum drying oven, also known as vacuum drying oven, is designed for defoaming glue, silicone and other items, side leakage of cosmetics, and drying heat sensitive, easily decomposable and oxidizable substances. It can be filled with inert gas inside, especially for some complex components that can be quickly dried.

structural characteristics：

shellcomplete machinethickendesignThe outer box is made of cold-rolled steel plateElectrostatic spray box,Strong corrosion resistance.

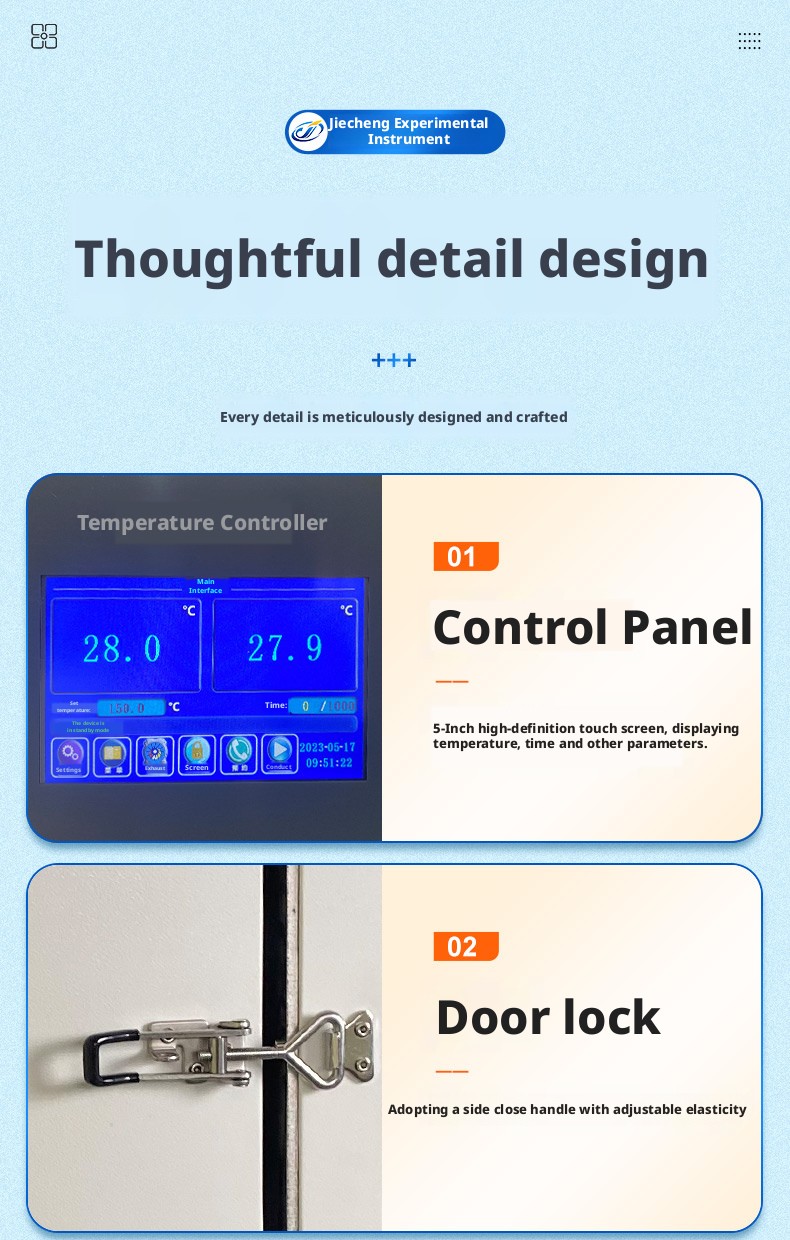

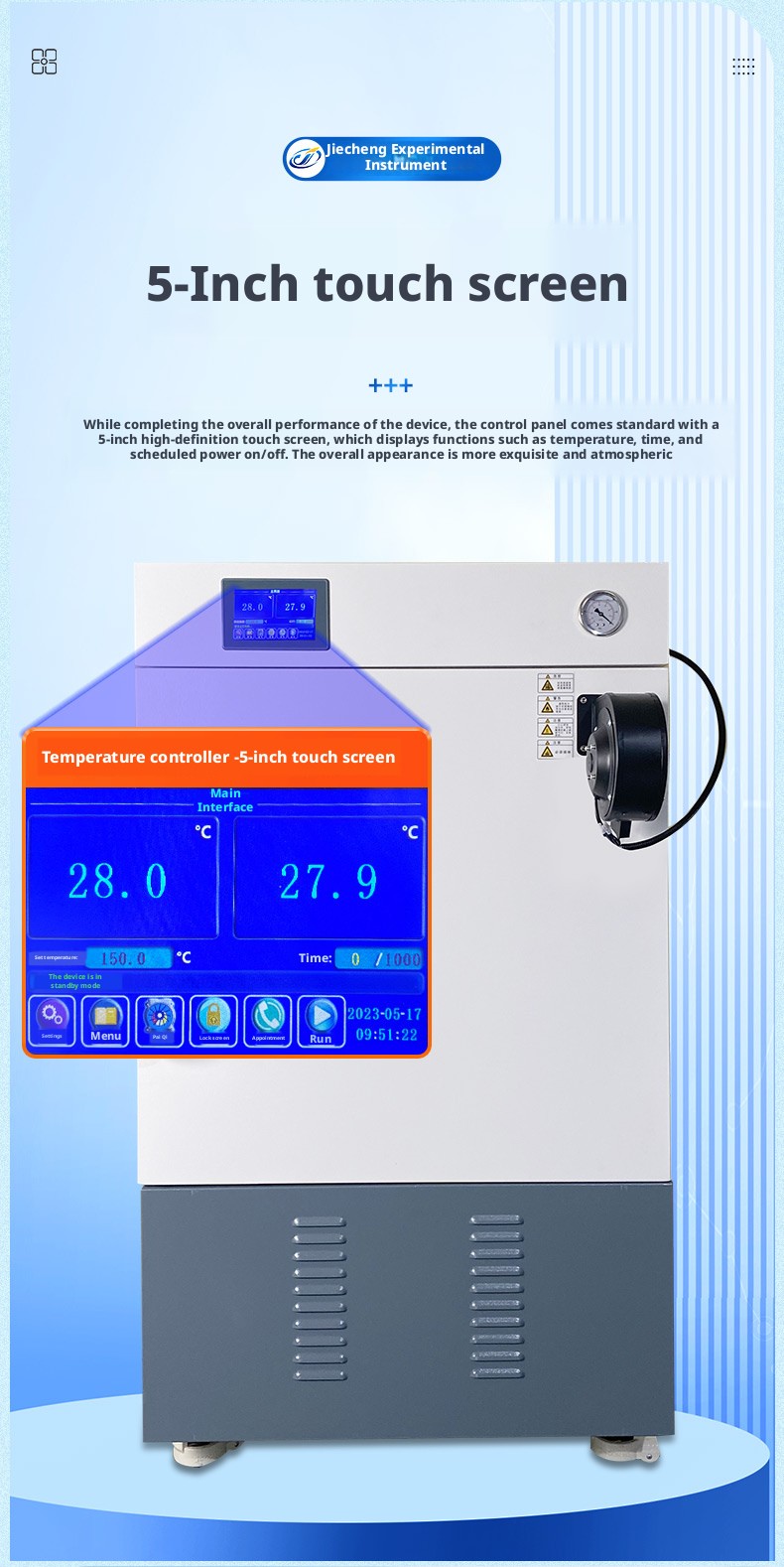

controlPanel making:5-inch high-definition touch screen，displayTemperature and time、Curve and scheduled power on/offWaiting for parameters，Standard 9999 cycles, 10 segment programming,Custom mode/Program control mode switchChange.

Semi automatic vacuum mode:The time interval for vacuum pumping can be adjusted, and the start time of the vacuum pump can be adjusted. (It can save the time and energy wasted by personnel repeatedly manually filling the vacuum)

Door:Internal 304 material thickened stainless steel door panel.

Door lock:Adopting a side close handle with adjustable elasticity.

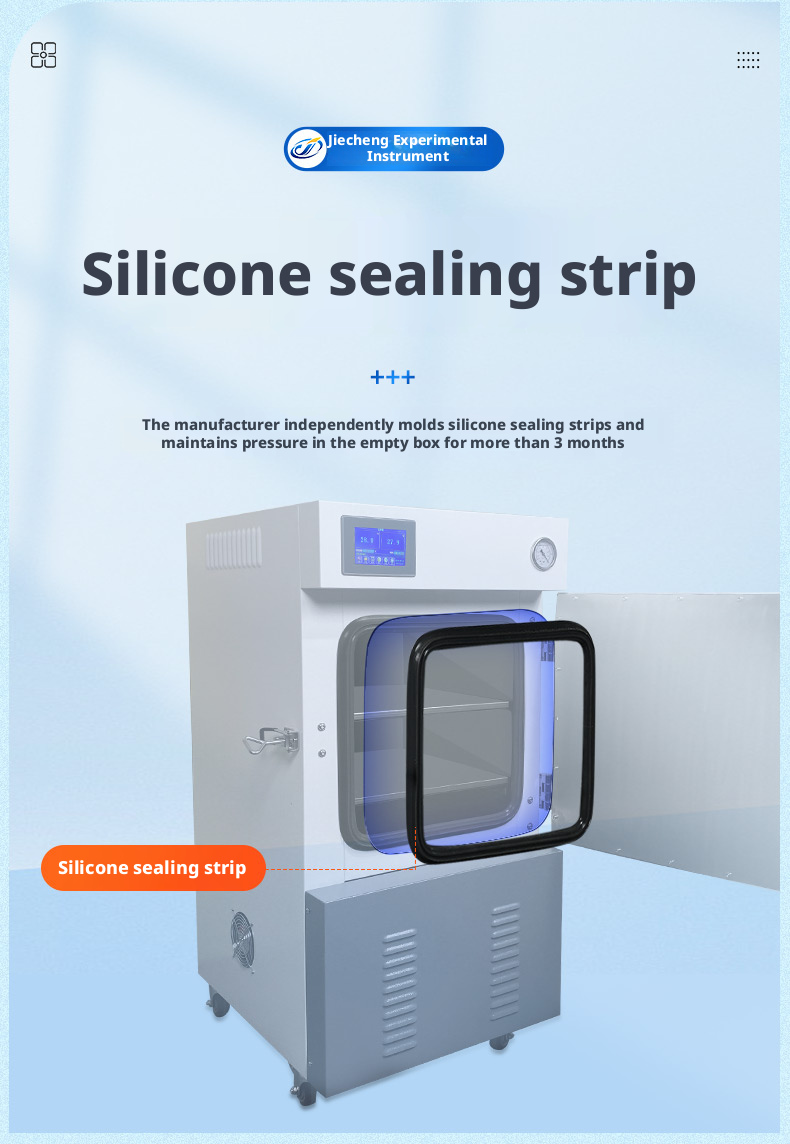

sealing strip：Our company independently molds silicone sealing strips,Empty container pressurized for 3 monthsabove.

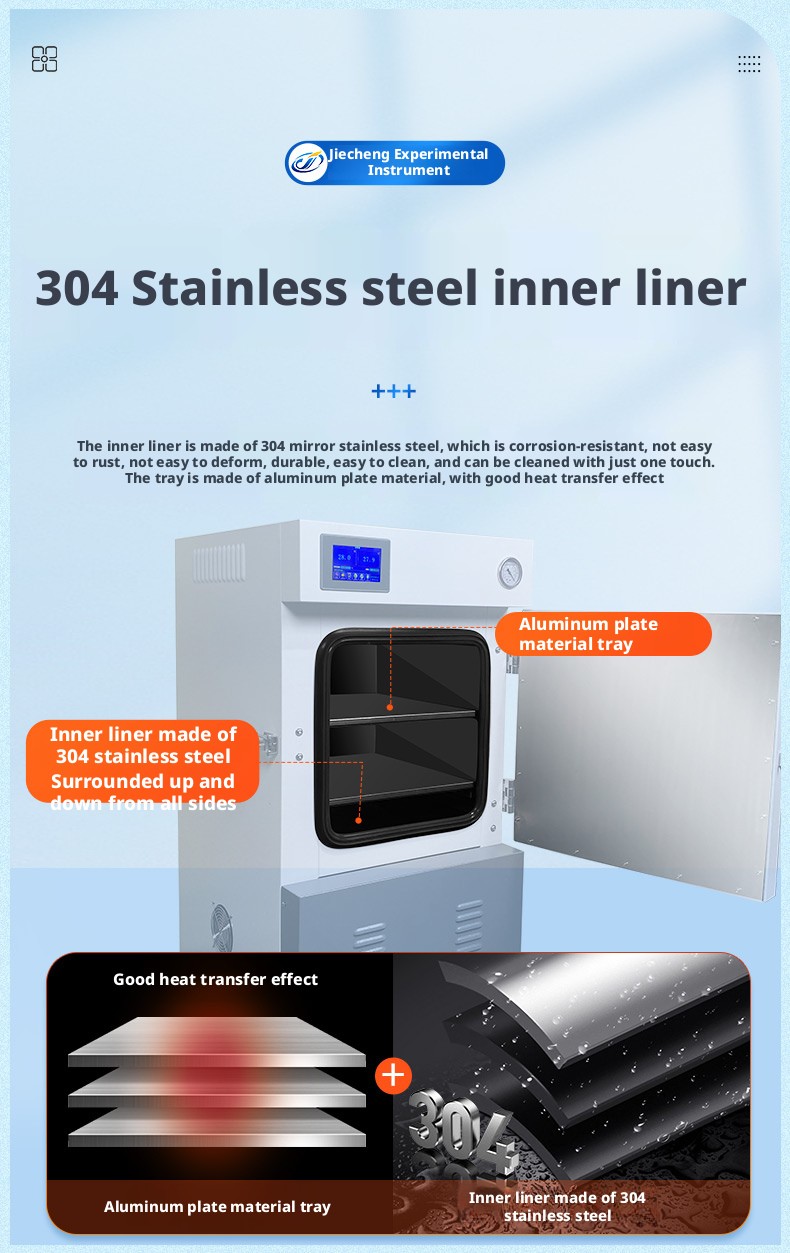

Inner container:Using 304Mirror stainless steel interiorGallbladder, external reinforcement welding of inner liner.

Cooling system:Adopting an air-cooled system, the sealing strip can work normally at high temperatures

partitionBoard:The tray is made of 304 material, which has good heat transfer effect.

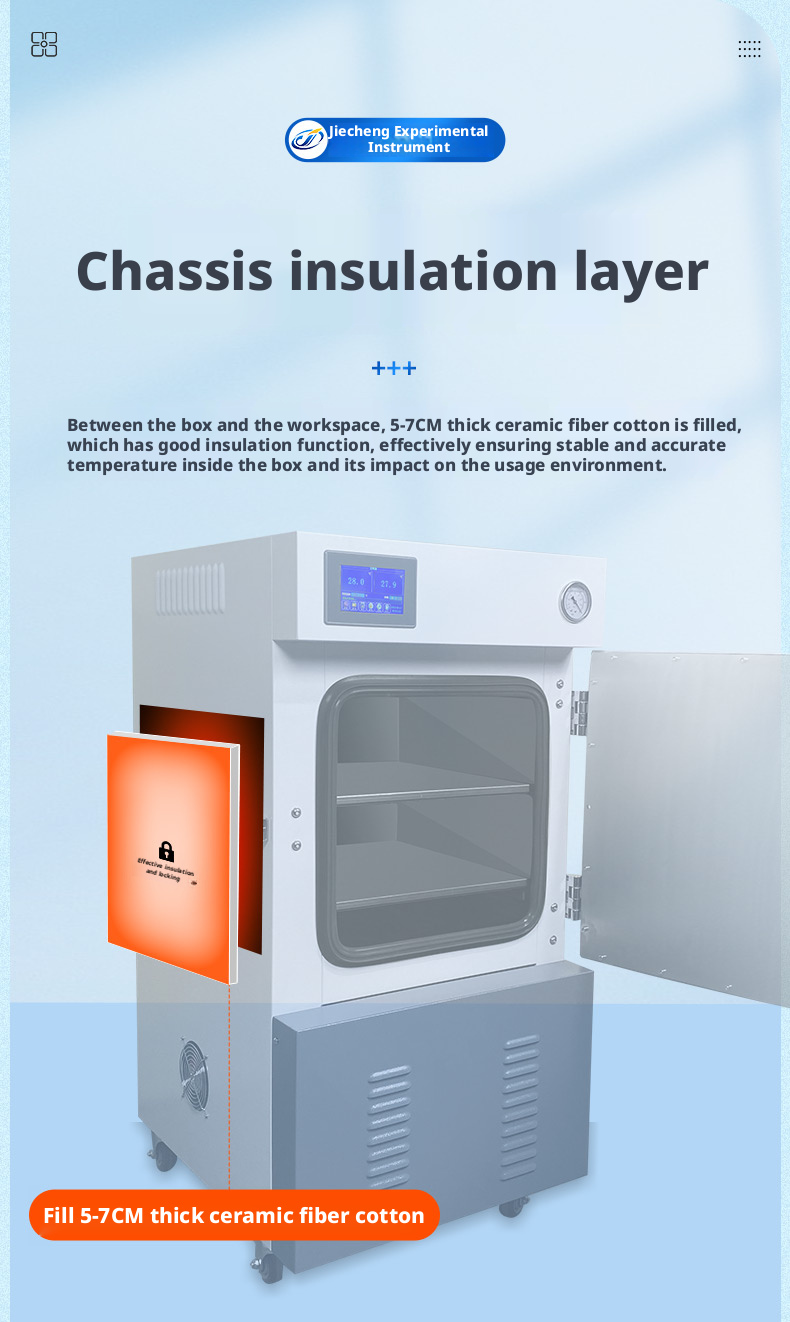

Insulation layer:Fill between the box and the studio8-10 cm thick ceramic fiber cottonIt has good insulation function, effectively ensuring stable and accurate temperature inside the box and its impact on the usage environment.

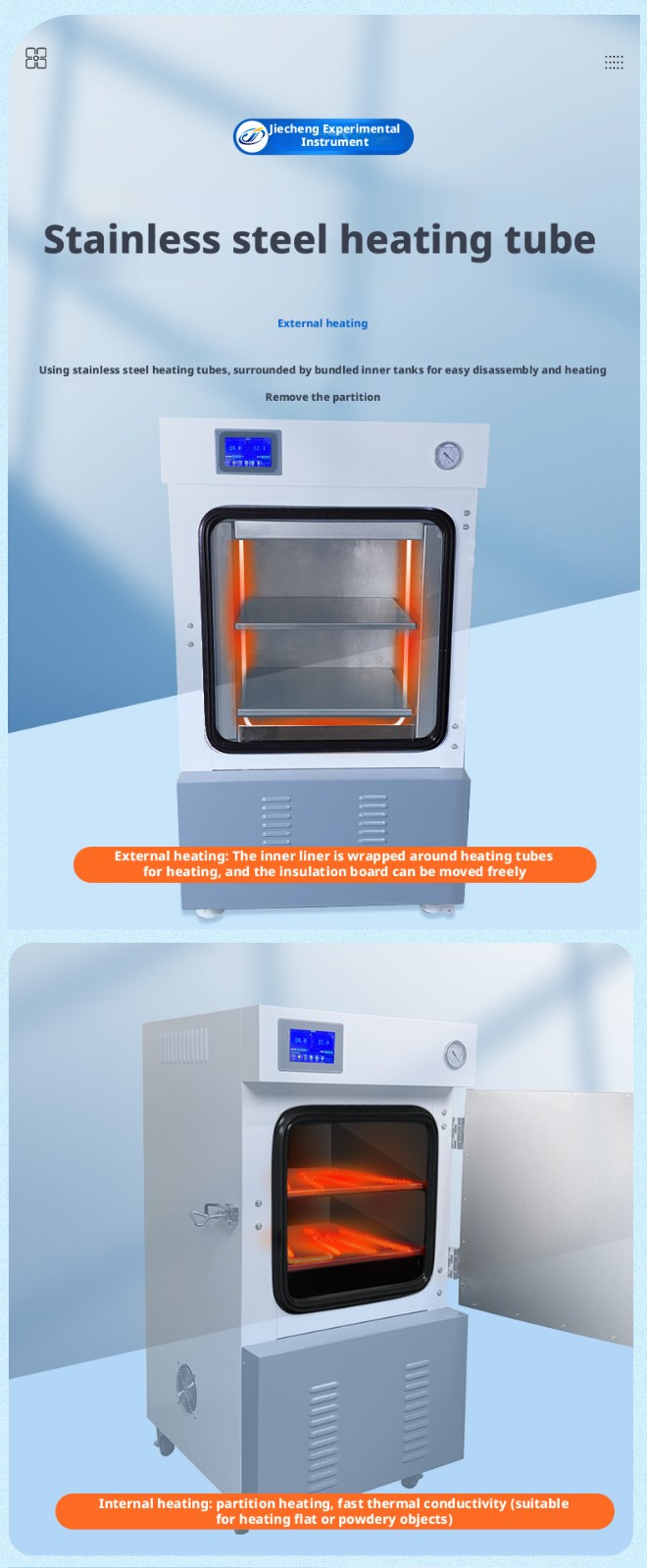

heatTube:Using stainless steel heating tubes.

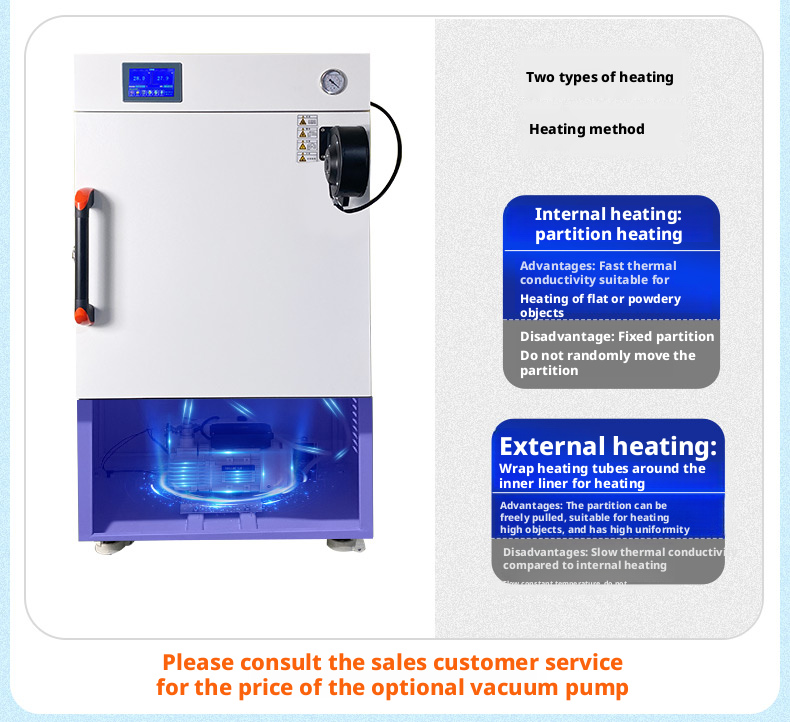

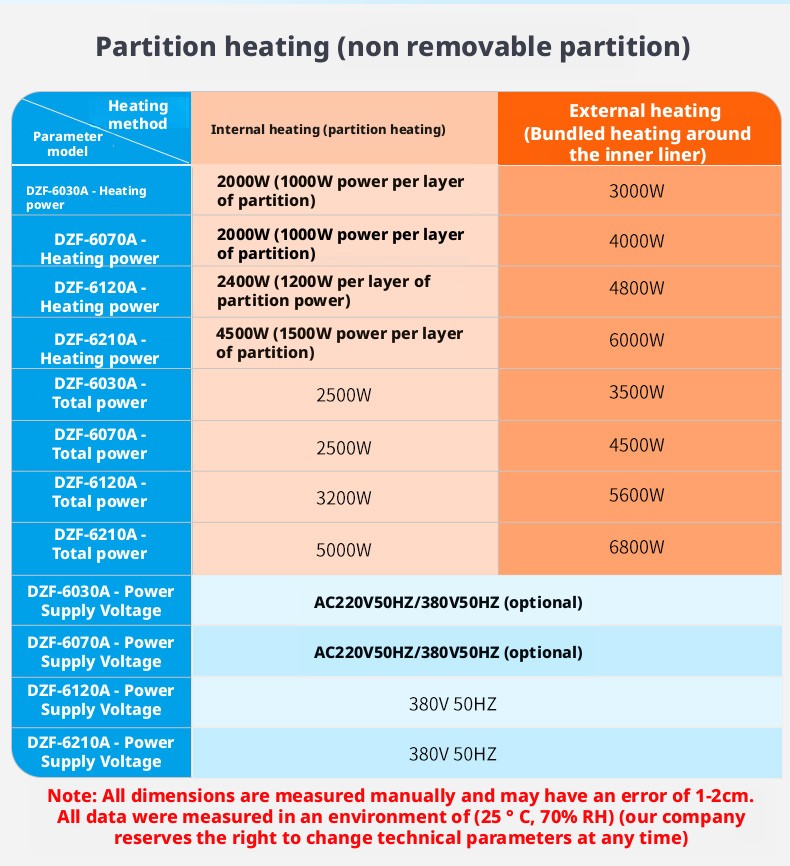

Heating methods can be selected:Internal heating (partition heating)Equipped with temperature multi-point correction function, commonly used temperature points can be individually corrected/External heating (bundled heating around the inner container).

intake valve：The side adopts a new type of ball valve control, which is easy to operate. (Inert gas inlet valve can be added).

Solenoid valve:Replace traditional manual ball valves to prevent improper operation, vacuum pump suction or oil leakage.

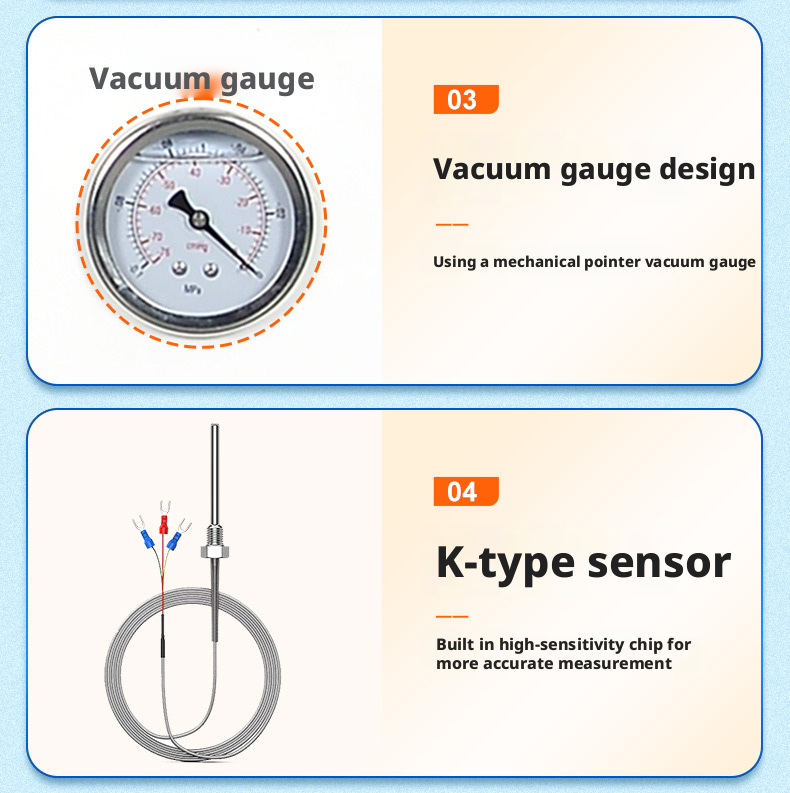

vacuum meter:Adopting a mechanical pointer vacuum gauge.

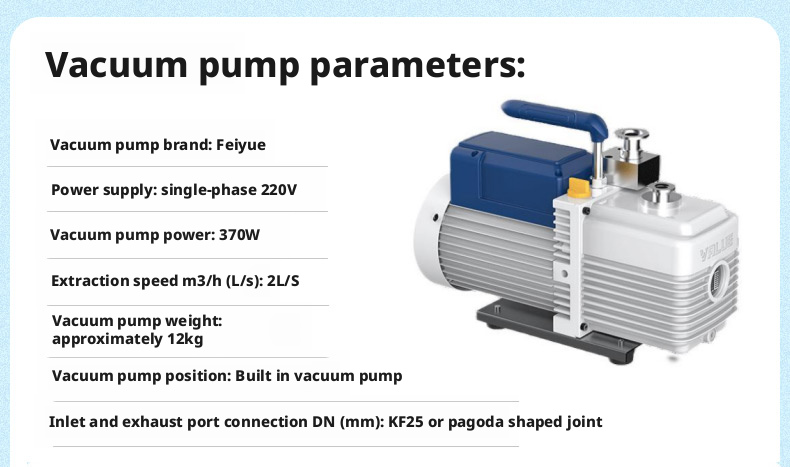

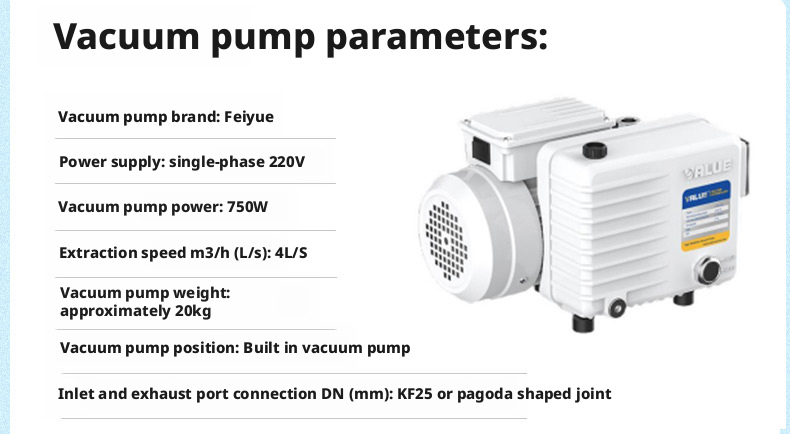

Lower body cabinet:The standard configuration uses Zhejiang Feiyue vacuum pump. (Other brands of vacuum pumps can also be specified).

Introduction to Control System：

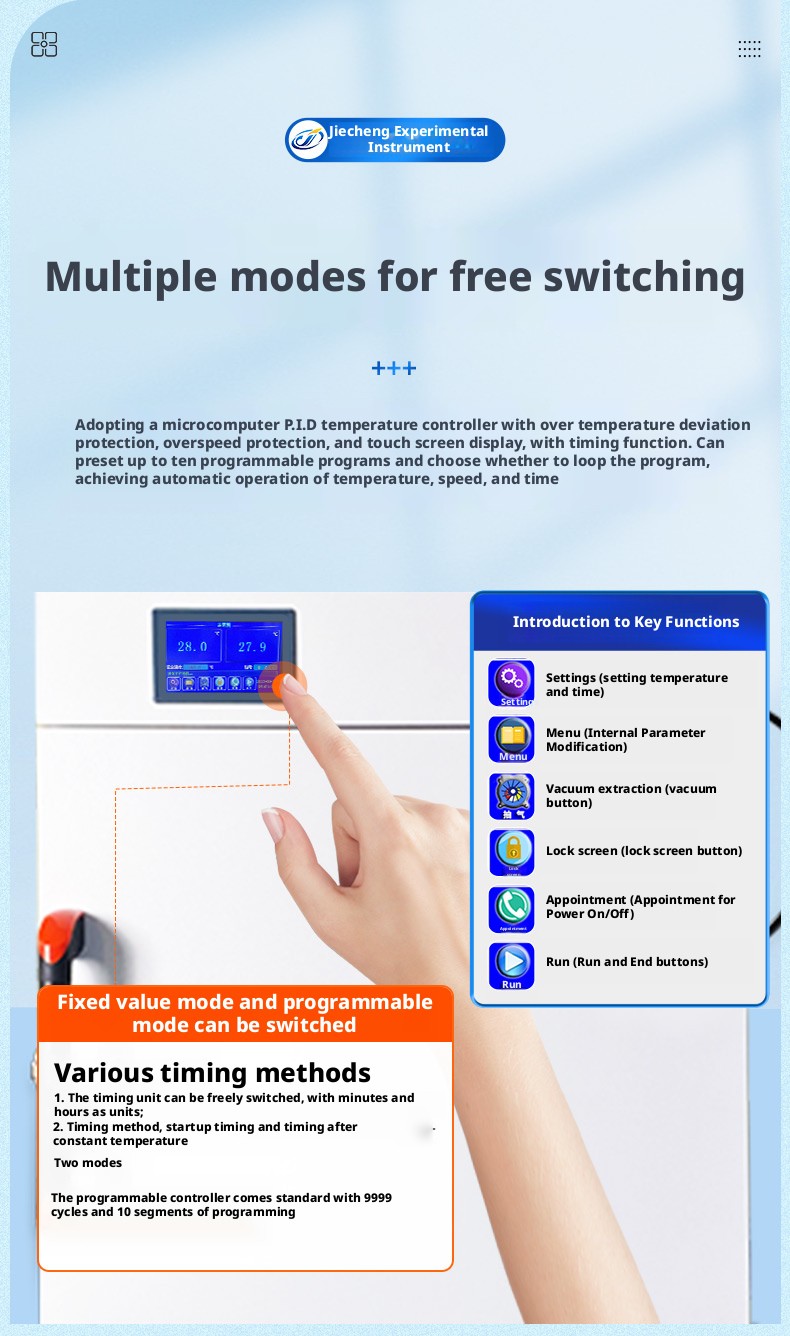

★ Personalized program design：Fixed value mode and programmable mode can be switched.Programmable programs with up to ten pre-set segmentsAnd you can choose whether to loop the program or notTo achieve temperature and time controlautomaticrun

★ Adopting over temperature deviation protection and over temperatureWenProtectiontouch screenMicrocomputer P.I.D temperature controller with timing function displayed.

★There are various timing methods: 1. The timing unit can be freely switched, with minutes and hours as units;2.Timing method, startup timing and timing after constant temperaturetwoType of pattern.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★Set parameters with password lock to prevent personnel from tampering with set values and other information.

★ Over temperature alarm, over temperatureWenAlarm, scheduled shutdown, call recovery, parameter additionFeatures such as encryption, temperature correction, and speed correction.

★ Equipped with power-off recovery function：After the external power supply suddenly loses power and returns to power, the device can automatically resume operation according to the original set program

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc.

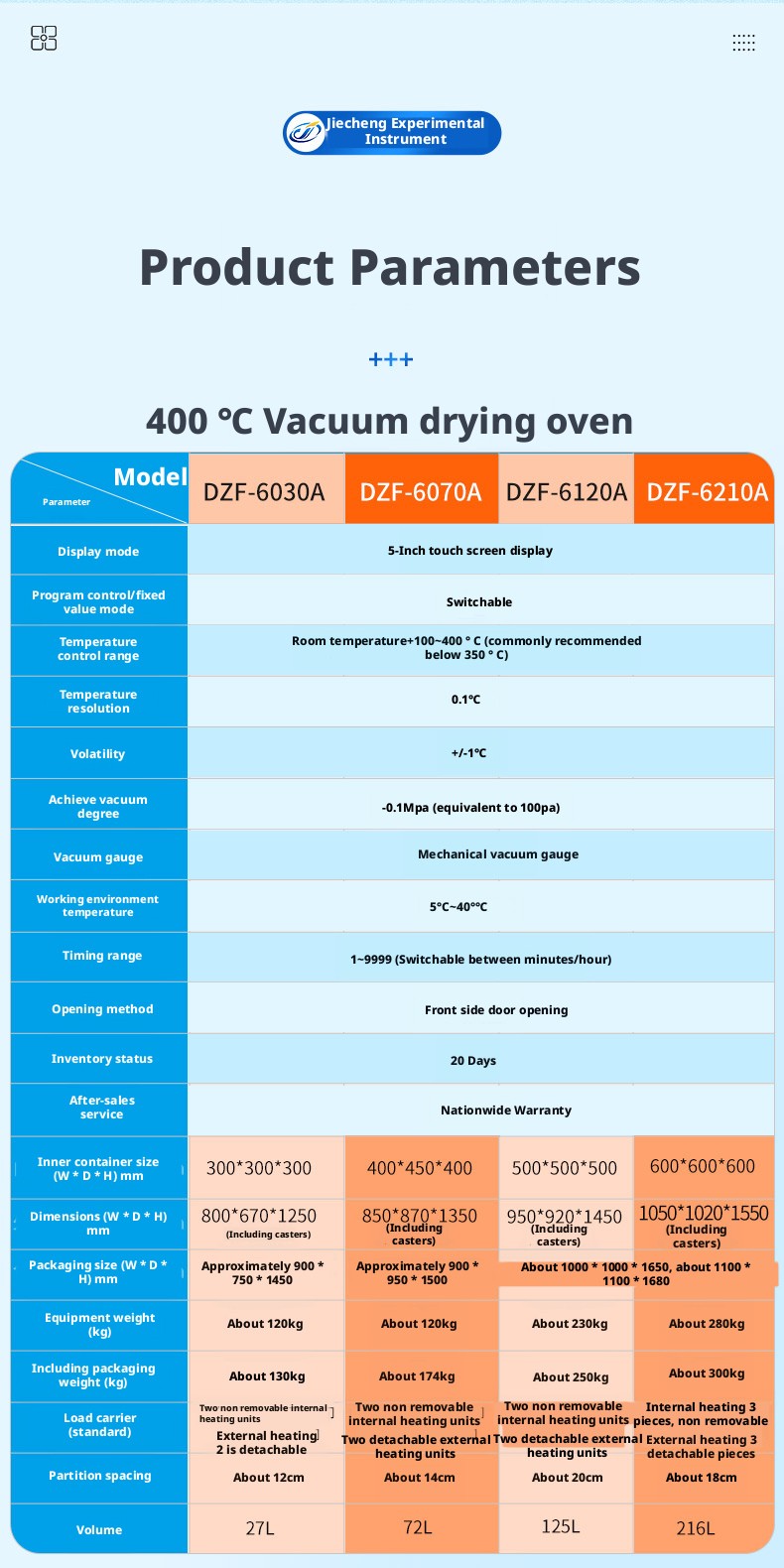

Parameter Introduction：
