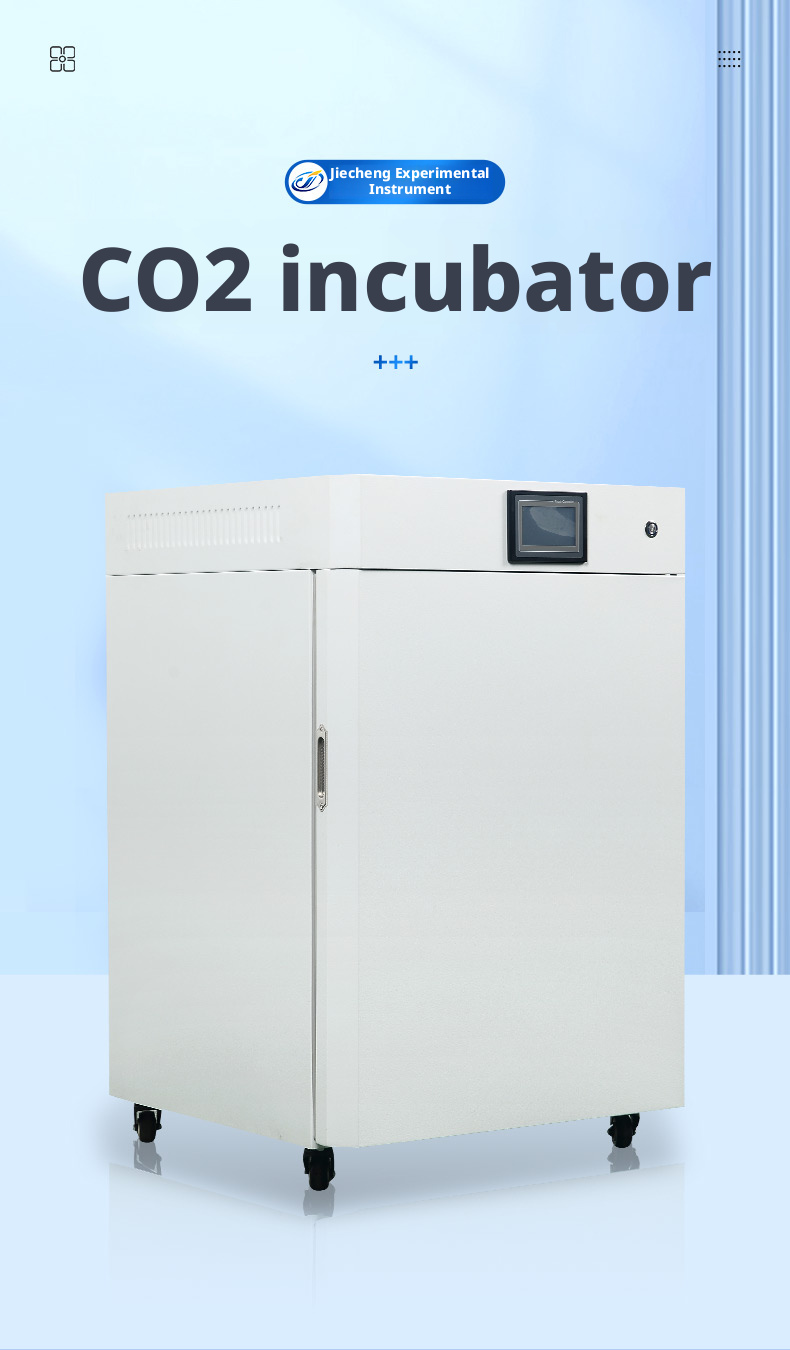

The carbon dioxide incubator is an instrument that simulates the growth environment of cells/tissues in organisms by creating a stable temperature of 37 ℃, a stable CO2 level of 5%, a constant pH value (7.2-7.4), and a high relative saturation humidity (95%) to culture cells/tissues in vitro. Carbon dioxide incubator is a key equipment necessary for immunology, oncology, genetics, and bioengineering. It is widely used in cell and tissue culture, as well as the cultivation of certain special microorganisms. It is commonly used in cell dynamics research, collection of mammalian cell secretions, carcinogenic or toxic effects of various physical and chemical factors, antigen research and production, cultivation of hybridoma cells for antibody production, in vitro fertilization (IVF), stem cells, tissue engineering, drug screening, and other research fields.

Product Introduction:

The carbon dioxide incubator simulates the formation of cells inside the incubator/An instrument used for in vitro cultivation of cells/tissues in living organisms that requires a stable temperature of 37 ℃, a stable CO2 level of 5%, a constant pH value (7.2-7.4), and a relatively high saturation humidity (95%). Carbon dioxide incubator is a key equipment necessary for immunology, oncology, genetics, and bioengineering. It is widely used in cell and tissue culture, as well as the cultivation of certain special microorganisms. It is commonly used in cell dynamics research, collection of mammalian cell secretions, carcinogenic or toxic effects of various physical and chemical factors, antigen research and production, cultivation of hybridoma cells for antibody production, in vitro fertilization (IVF), stem cells, tissue engineering, drug screening, and other research fields.

Instrument selling points：

1. The inner liner is made of 304 stainless steel,

2. Imported carbon dioxide sensor；

3. touchOne screen display, temperatureConcentration of carbon dioxide,Time and other parameters

4. Manufacturing with integrity, products are durable, and parameters are presented without reservation.

5. After sales guarantee, after-sales service is available throughout the country (except for towns and villages)

6. Provide video tutorials to reduce users' time spent reading instruction manuals.

user-friendly design：

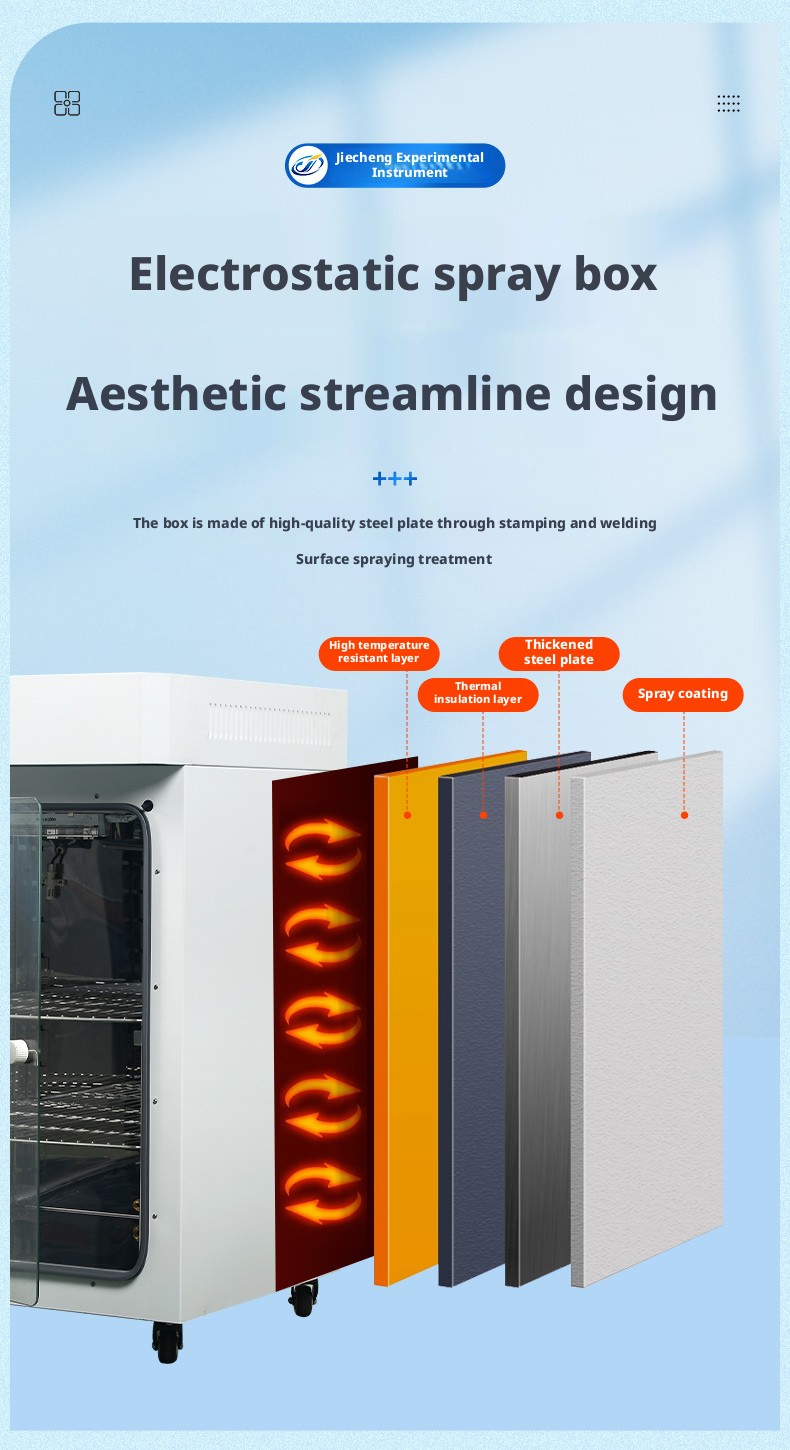

★ A streamlined luxury whole machine shape with aesthetic design concept, electrostatic spray box body, double-layer door structure

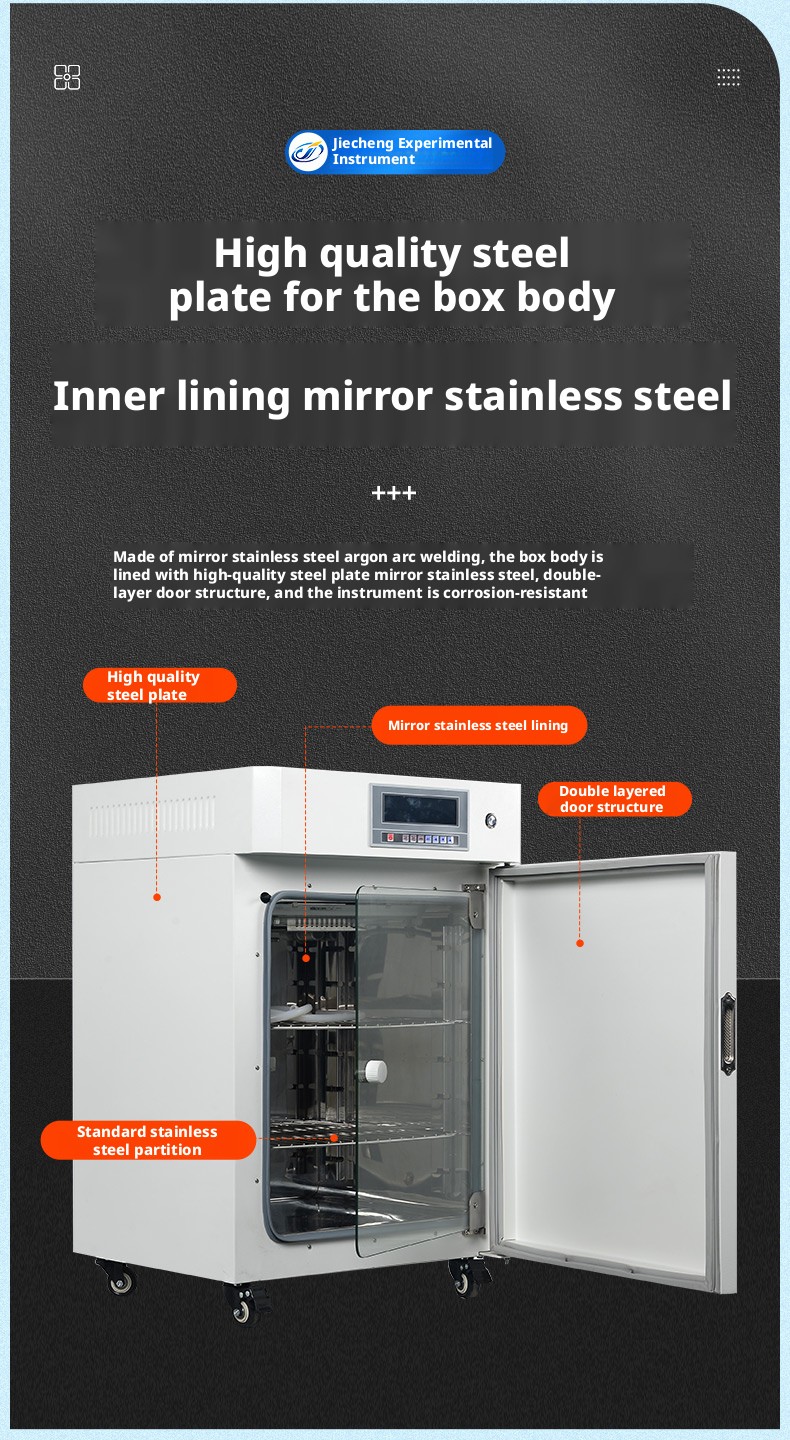

★ Made of mirror stainless steel argon arc welding, the box body is made of high-quality steel plate, with a beautiful and innovative shape. Mirror stainless steel lining, corrosion-resistant instrument.

★ LCD large screen LCD display shows various set parameters and measured parameters

★The air intake is equipped with an efficient air filter for particle size≥ 0.3um particle stage filtration efficiency up to 99.99%

★The box is equipped with a humidifying water tray as standard, which has a large humidity evaporation area and is easy to reach relative saturation humidity. The humidity recovers quickly after opening and closing the door

★The use of a door heating control system can effectively prevent condensation on the inner glass door, thus avoiding the possibility of microbial contamination caused by it

★When the device is heated, the heating indicator light is on, and the heating output power can be digitally displayed and automatically frequency converted to adjust the heating power percentage, which is intelligent and energy-saving

★The built-in ozone free ultraviolet sterilization lamp can kill floating bacteria in the circulating air inside the box and the water vapor in the humidification tray, effectively preventing contamination during cell culture

★It has multiple reminder functions, including the reservation indicator light on when the reservation time is turned on, the fan indicator light on when the fan is running, the alarm indicator light flashing when the fan is stopped or abnormal, the water level alarm light on when there is water shortage, the lock keyboard light on when the keyboard is locked, and the program indicator light on when the controller is set to program control

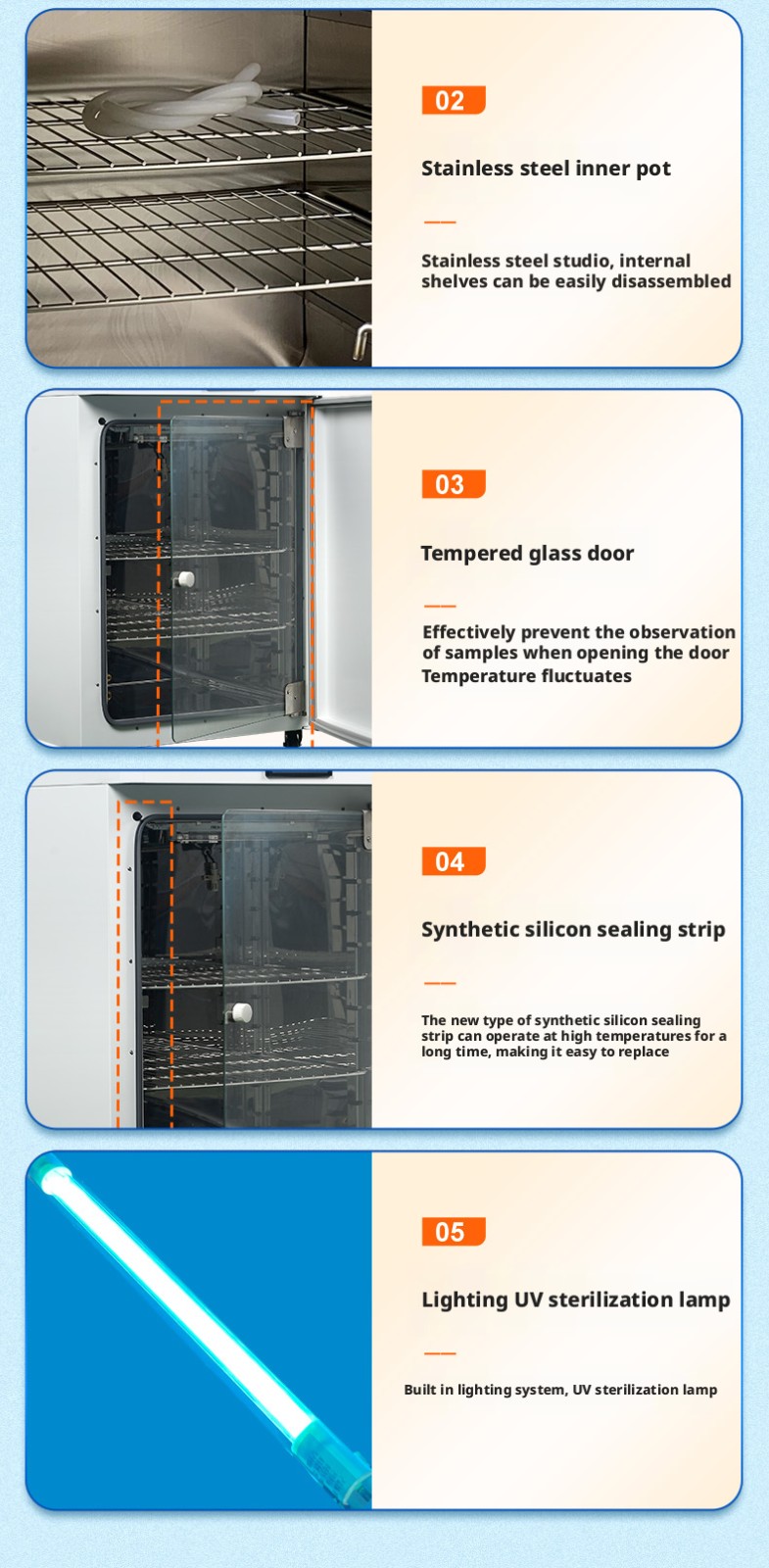

★ Adopting a new type of synthetic silicon sealing strip, it can operate at high temperatures for a long time, has a long service life, and is easy to replace.

★ Adopting a double-layer door structure, with a tempered glass door inside, effectively preventing temperature fluctuations when opening the door to observe the sample.

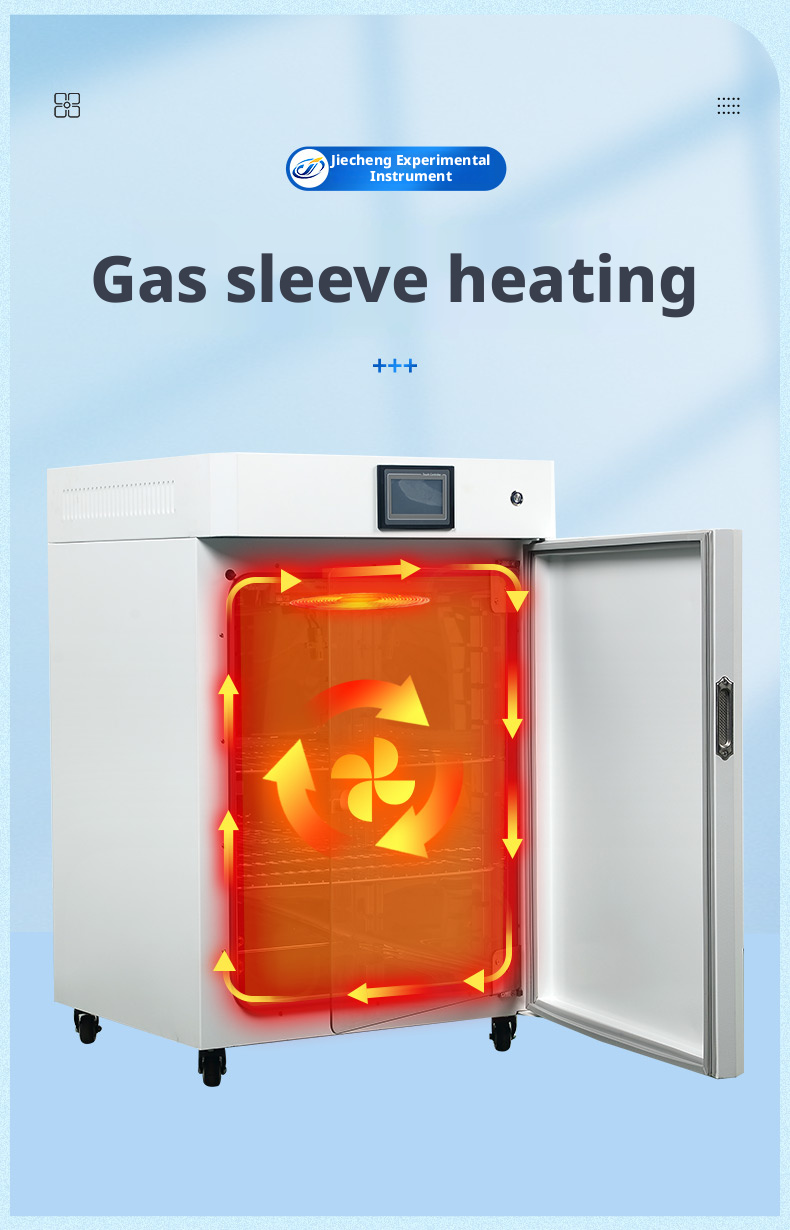

The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct, which improves the temperature uniformity in the working room.

★ The cargo tray inside the box can be freely adjusted

Introduction to Control System：

★ Adopting a microcomputer P.I.D temperature controller with over temperature deviation protection and digital display, with timing function, stable and reliable temperature control.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★ Functions such as over temperature alarm, scheduled shutdown, call recovery, parameter encryption, temperature correction, etc.

★ Equipped with power-off recovery function, the device can automatically resume operation according to the original set program after the external power supply suddenly loses power and then resumes power

★Equipped with automatic temperature compensation, built-in atmospheric and zero calibration functions, zero drift and full-scale drift compensation, concentration measurement, and response speed ＜20S， No oxygen dependence and poisoning phenomenon of catalytic sensors, long lifespan, high accuracy, strong anti-interference ability, overvoltage and reverse connection protection for power supply and output, safe and reliable.

★The monitoring of CO2 concentration is not affected by temperature and humidity. During the experiment, when the box door needs to be frequently opened, the temperature and concentration values can be quickly restored. If the door is opened for 30 seconds and then closed, it can be restored to 37 ℃ within 3 minutes and 5% CO2 concentration within 10 minutes.

★UV sterilization system

★When the ultraviolet lamp is used for sterilization, the ultraviolet lamp indicator light is on. The ultraviolet sterilization lamp can be set to be normally on or timed, and it will automatically turn on according to the set time interval;

★During the disinfection process, if the door is opened, disinfection will automatically stop, and if the door is closed, disinfection will automatically start. The UV light on time can be recorded. After exceeding the specified value, it will automatically prompt to replace the UV sterilization light.

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc

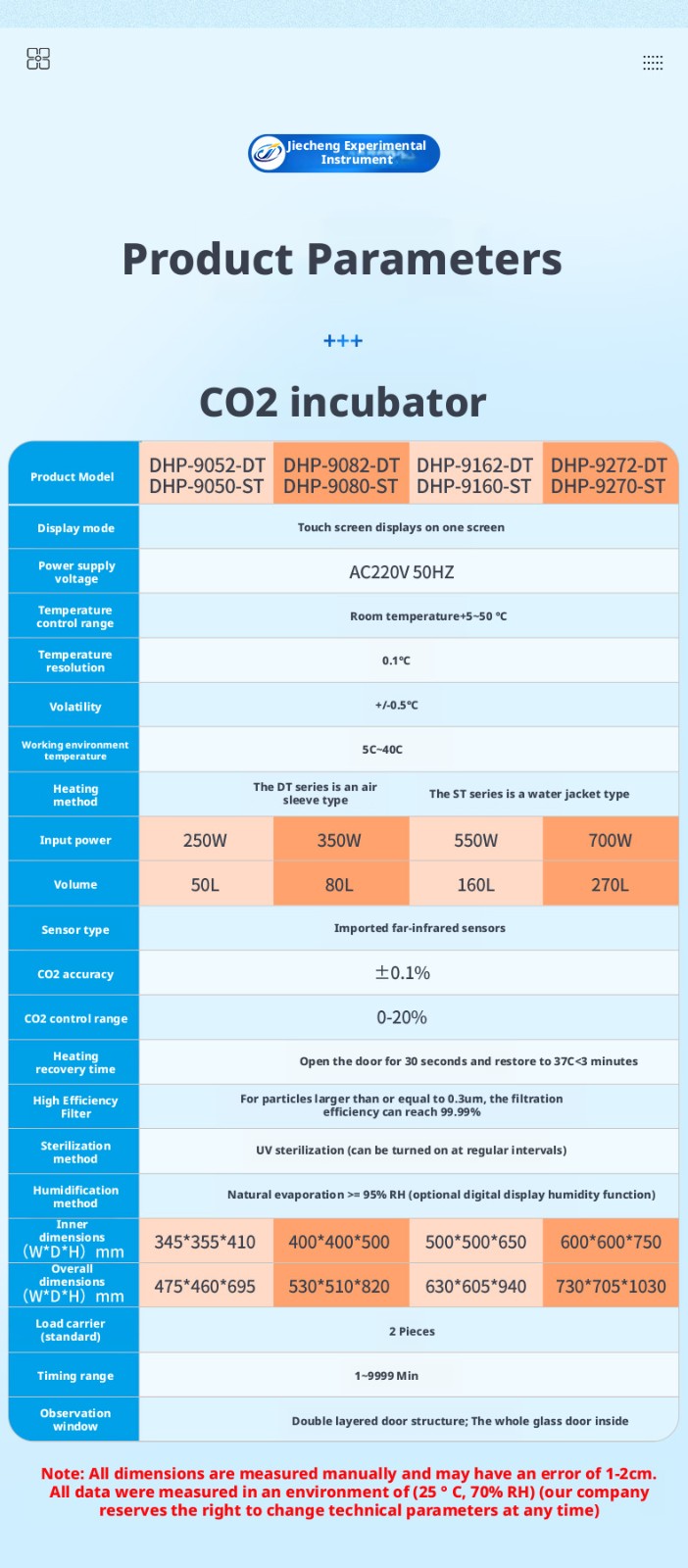

Parameter Introduction：
