Jiecheng Instrument, a manufacturer of vacuum drying ovens, also known as vacuum drying ovens, has accumulated years of successful experience in box heating. Through continuous research and innovation, it has creatively solved the “bottleneck“ in the heat conduction process by breaking through traditional technology. It is designed specifically for defoaming of adhesives, silicone and other items, leakage of cosmetics, and drying of heat sensitive, easily decomposed and oxidizable substances. It can be filled with inert gas inside, especially for some complex components that can be quickly dried.

Product Introduction:

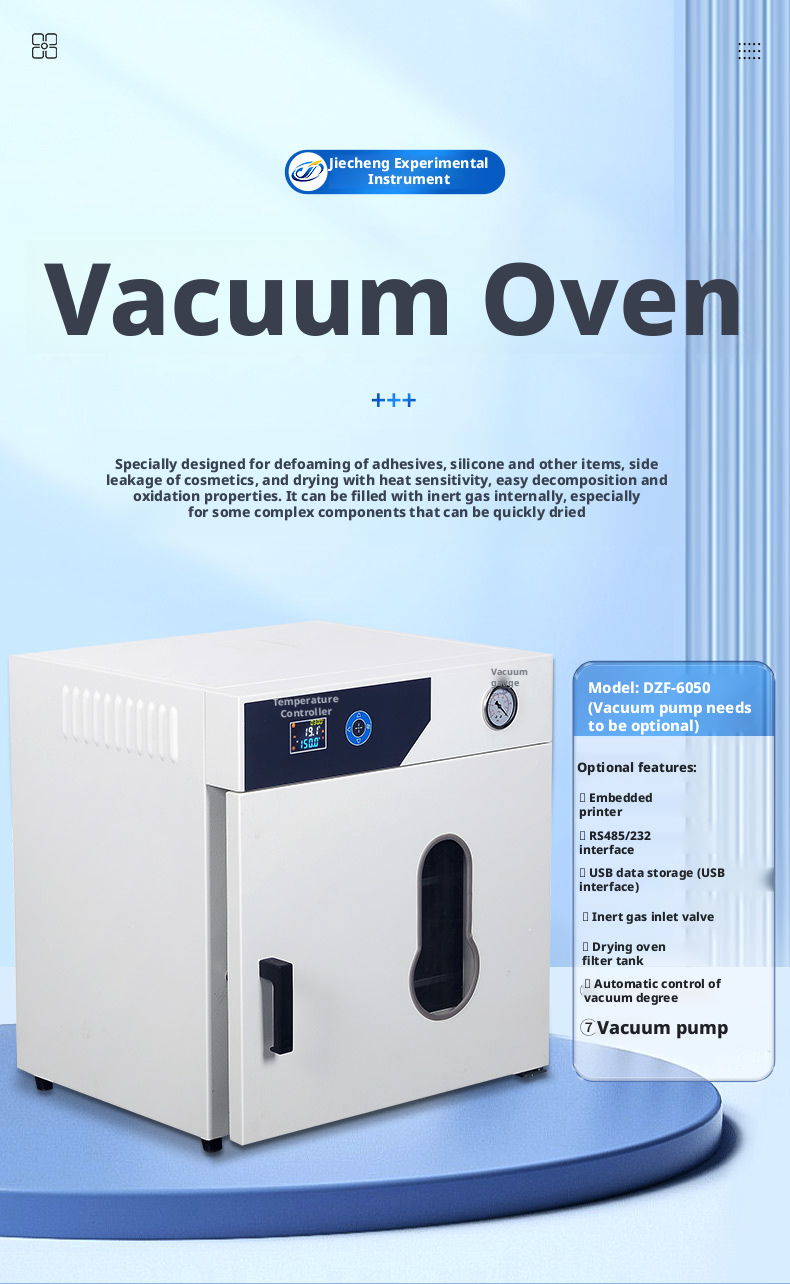

vacuum drying ovenAlso known as (vacuum drying oven), it is designed for defoaming glue, silicone and other items, side leakage of cosmetics, and drying heat sensitive, easily decomposed and oxidizable substances. It can be filled with inert gas inside, especially for some complex components that can be quickly dried.

structural characteristics：

★shellThe whole machine is stillelectricitydesignThe outer box is made of cold-rolled steel plateElectrostatic spray box,Strong corrosion resistance.

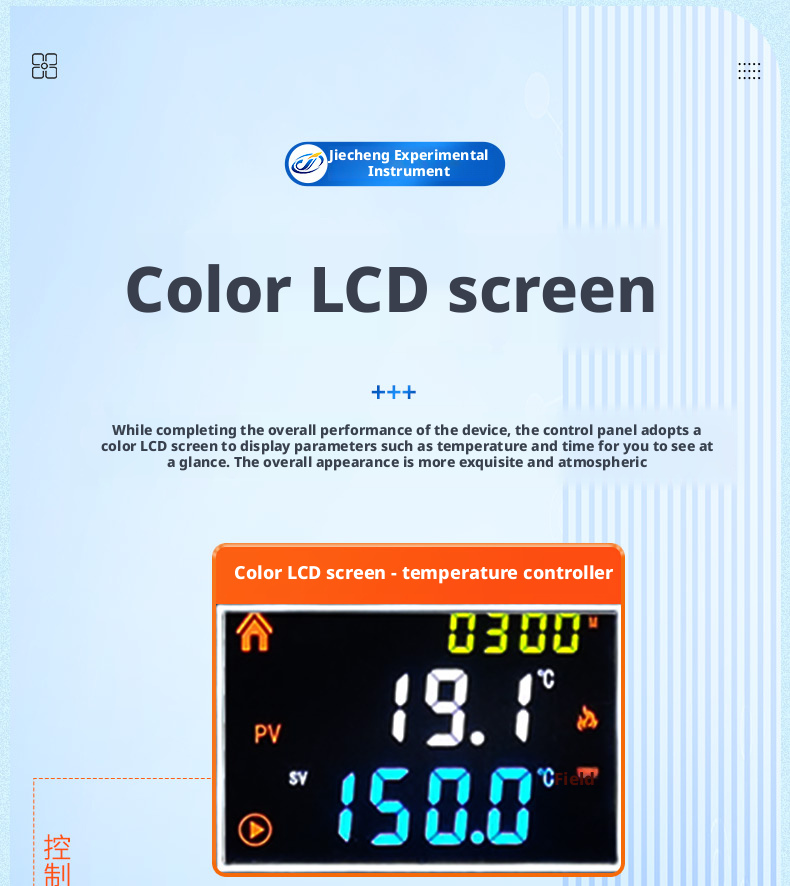

★control panel:colorfulliquid crystalOne screen display, temperature, time and other parameters，standard configuration9999 cycle, 10 segment programming, fixed value mode/Program control mode switchChange.

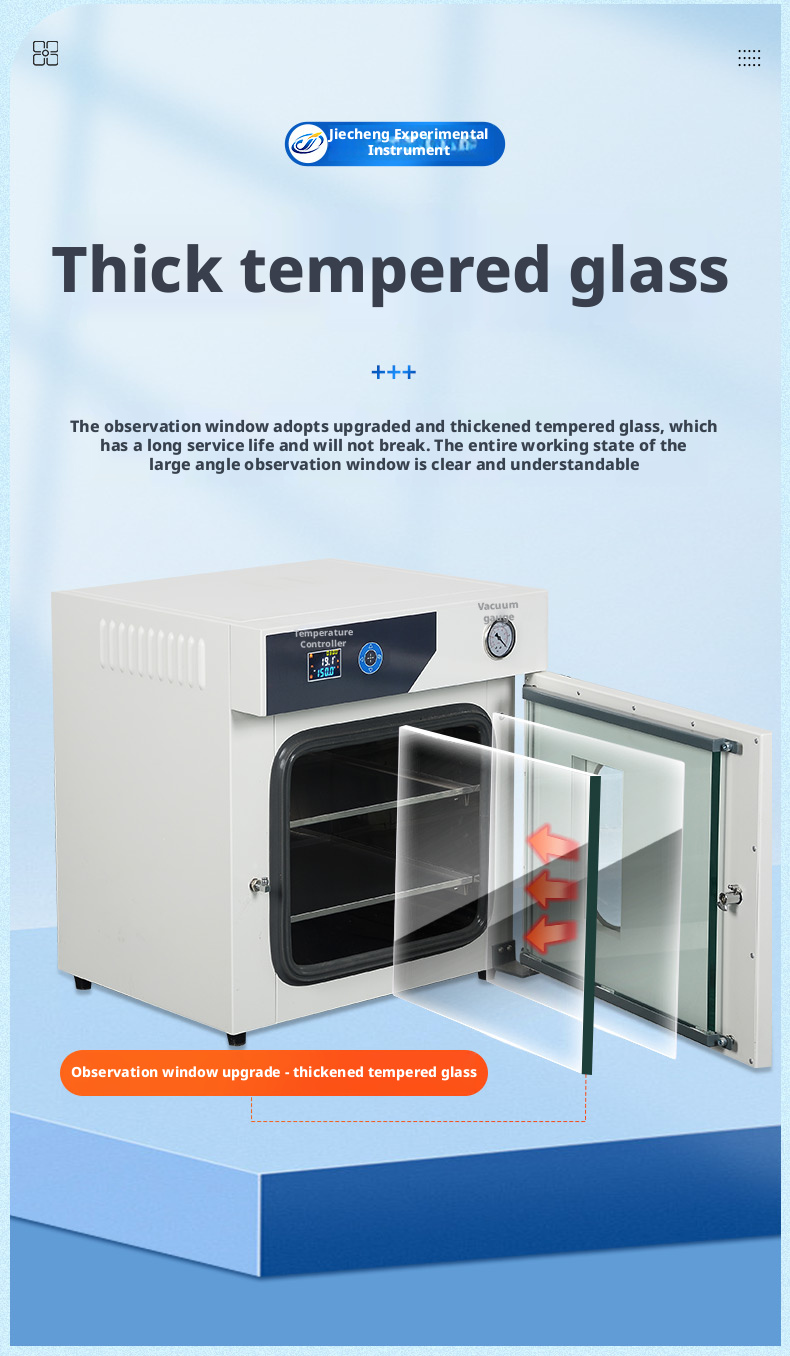

★Observation window:Thick tempered glass,The entire working state of the wide-angle observation window is clear and distinct.

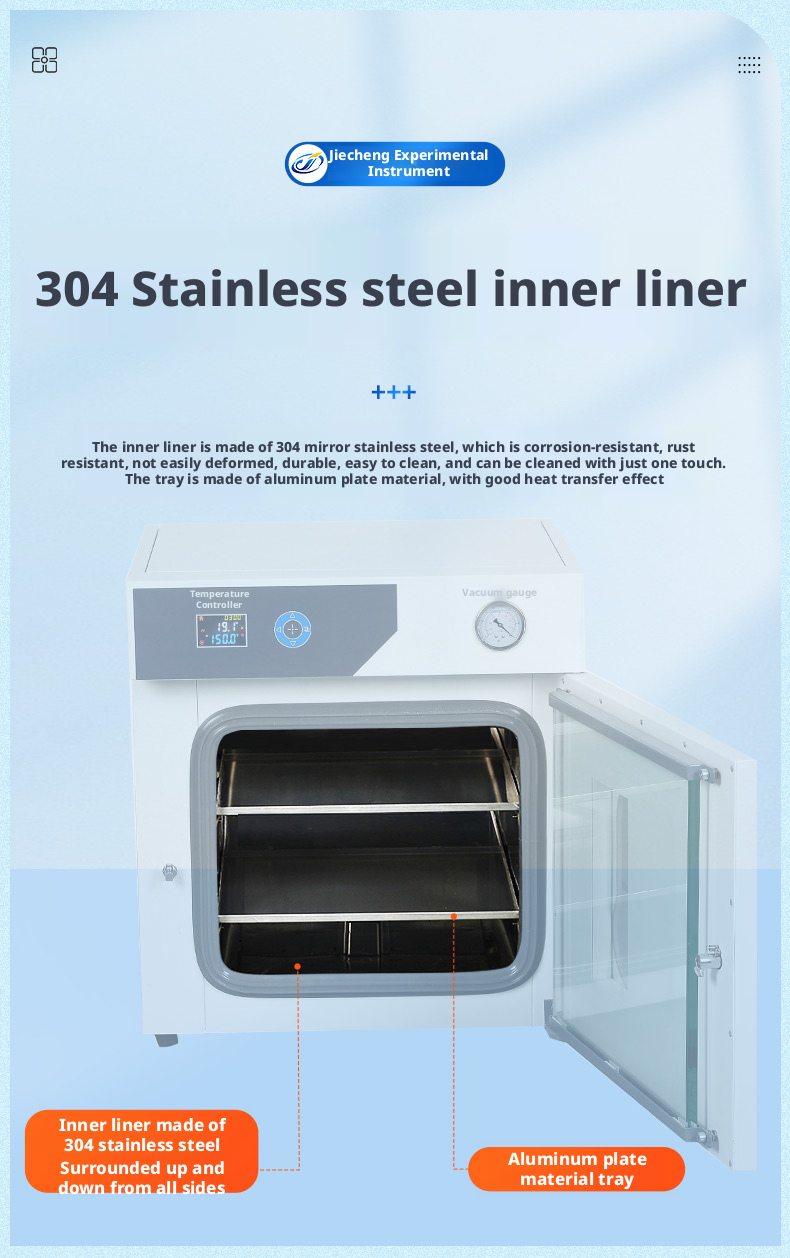

★Inner container:adopt304Mirror stainless steel interiorgallbladder.

★partitionBoard:The tray is made of aluminum plate material, which has good heat transfer effect.

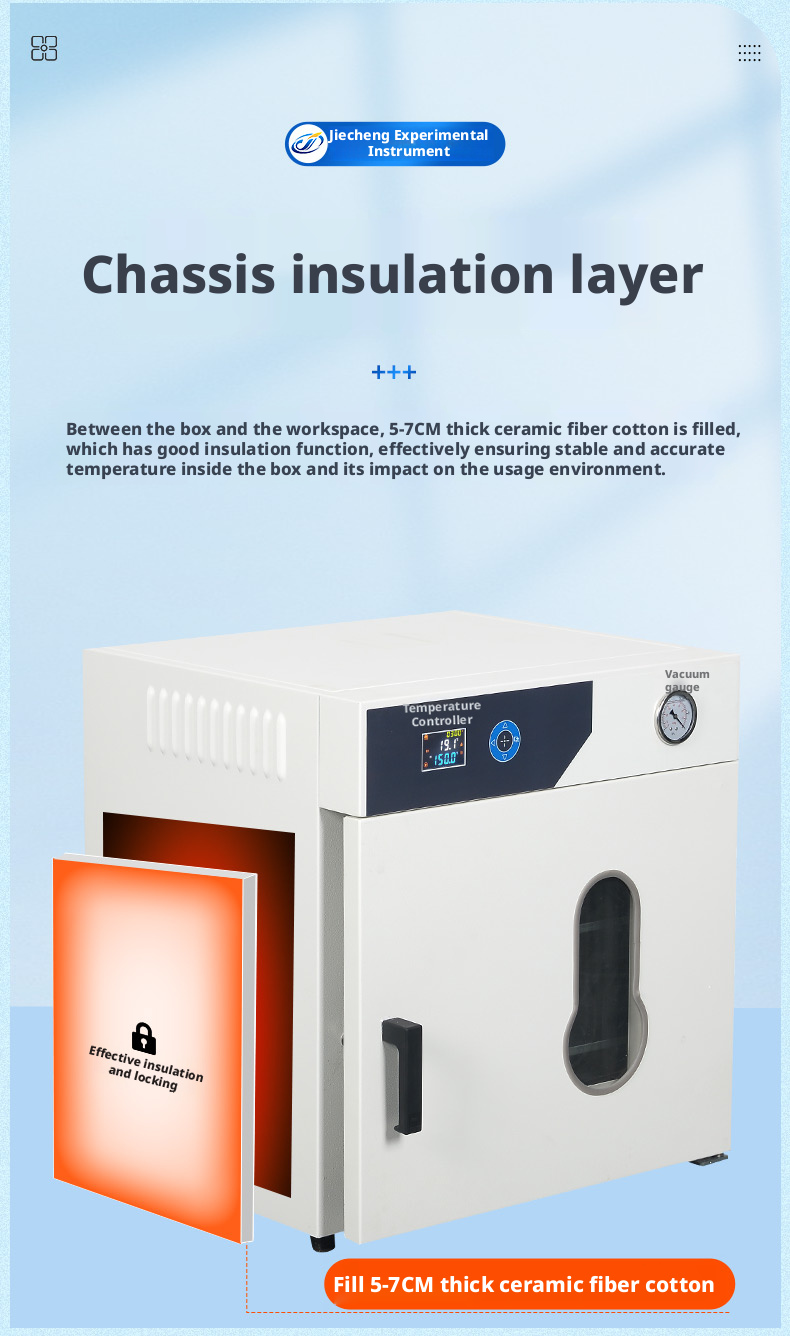

★Insulation layer:Fill between the box and the studio5-7CM thick ceramic fiber cottonIt has good insulation function, effectively ensuring stable and accurate temperature inside the box and its impact on the usage environment.

★sealing strip：Our company independently molds silicone sealing strips,Empty container pressure maintenancemore than 3 months.

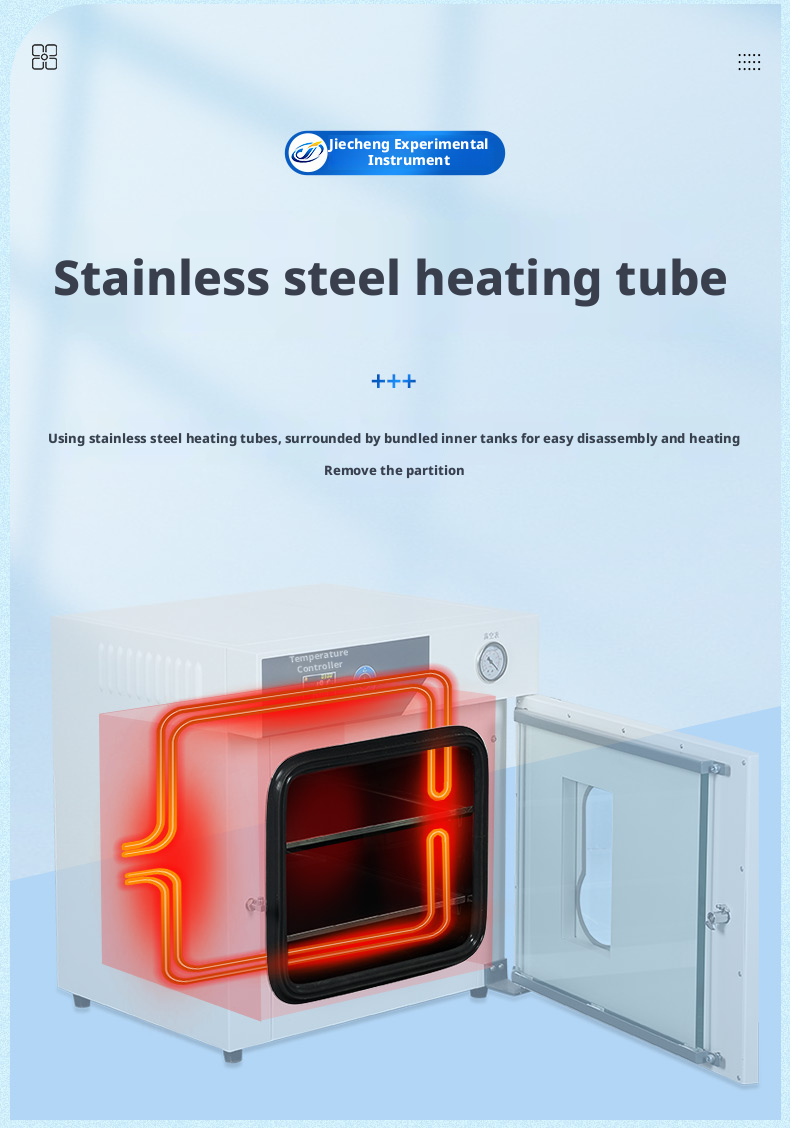

★heatTube:Using stainless steel heating tubes, surrounded by bundled inner tanks for heating, and easy to remove partitions.

★intake valve/Exhaust valve:The side adopts a new type of ball valve control, which is easy to operate and prevents the vacuum pump oil from being sucked back.

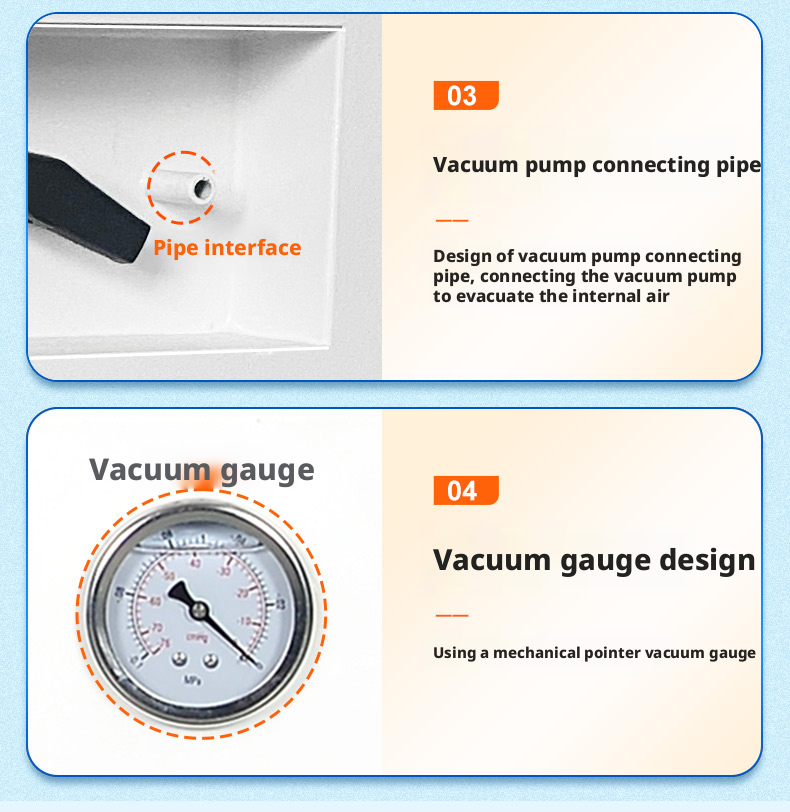

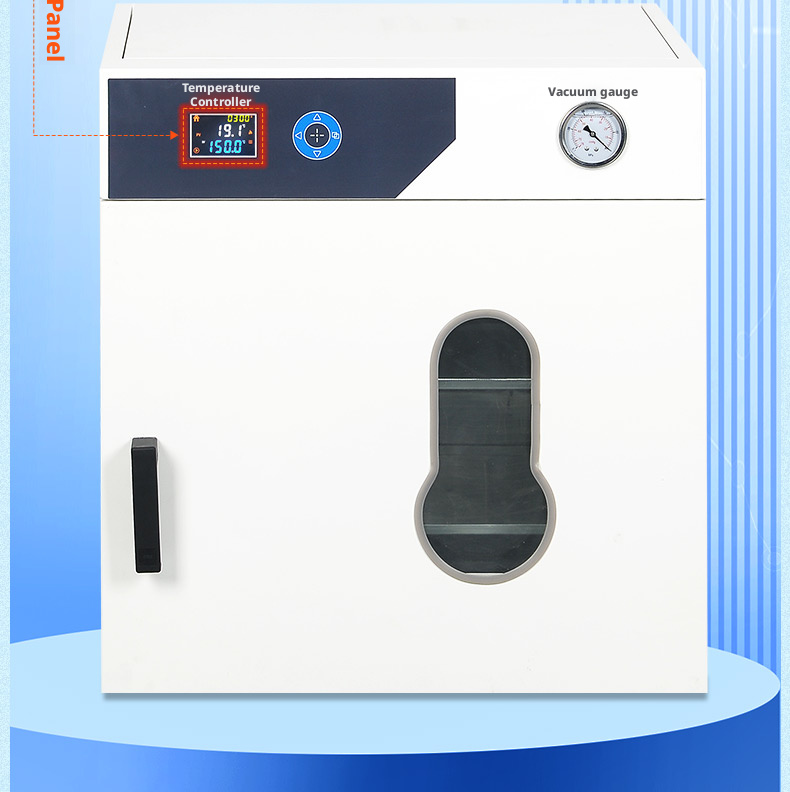

★vacuum meter:Adopting a mechanical pointer vacuum gauge.

Introduction to Control System：

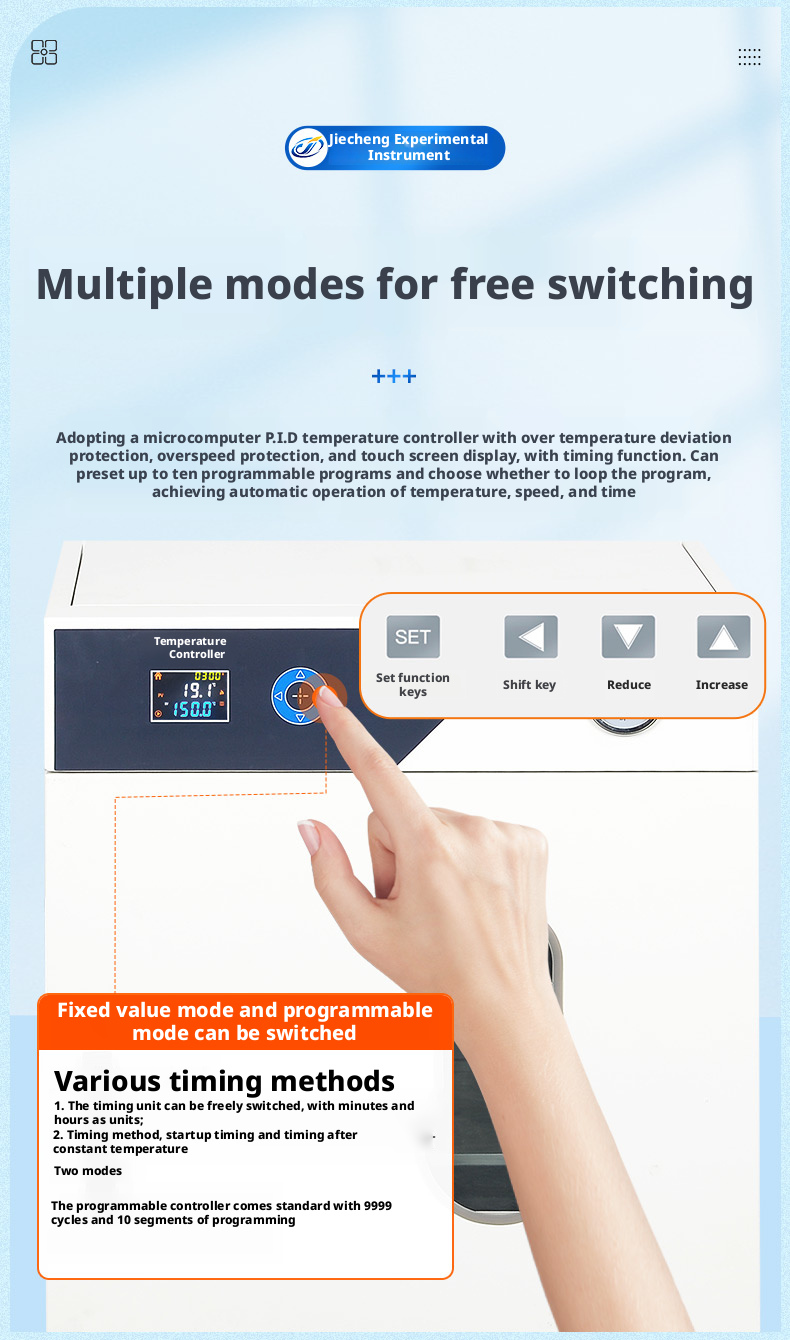

★ Personalized program design：Fixed value mode and programmable mode can be switched.Programmable programs with up to ten pre-set segmentsAnd you can choose whether to loop the program or notTo achieve control over temperature, speed, and timeautomaticrun

★ Equipped with over temperature deviation protection, over speed protectiontouch screenMicrocomputer P.I.D temperature controller with timing function displayed.

★There are various timing methods:1. The timing unit can be freely switched, with minutes and hours as units;2.There are two timing modes: startup timing and constant temperature timing.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★ Functions such as over temperature alarm, over speed alarm, timed shutdown, power recovery, parameter encryption, temperature correction, speed correction, etc.

★ Equipped with power-off recovery function：After the external power supply suddenly loses power and returns to power, the device can automatically resume operation according to the original set program

★ Self tuning function: When the shaking table malfunctions, the screen will display a fault message, and the operation fault is clear at a glance.

★Multiple modes for free switchingCustomized Mode/Program control mode switchChange. (Program control is divided intoNormal heating mode or slope heating mode）.

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc.

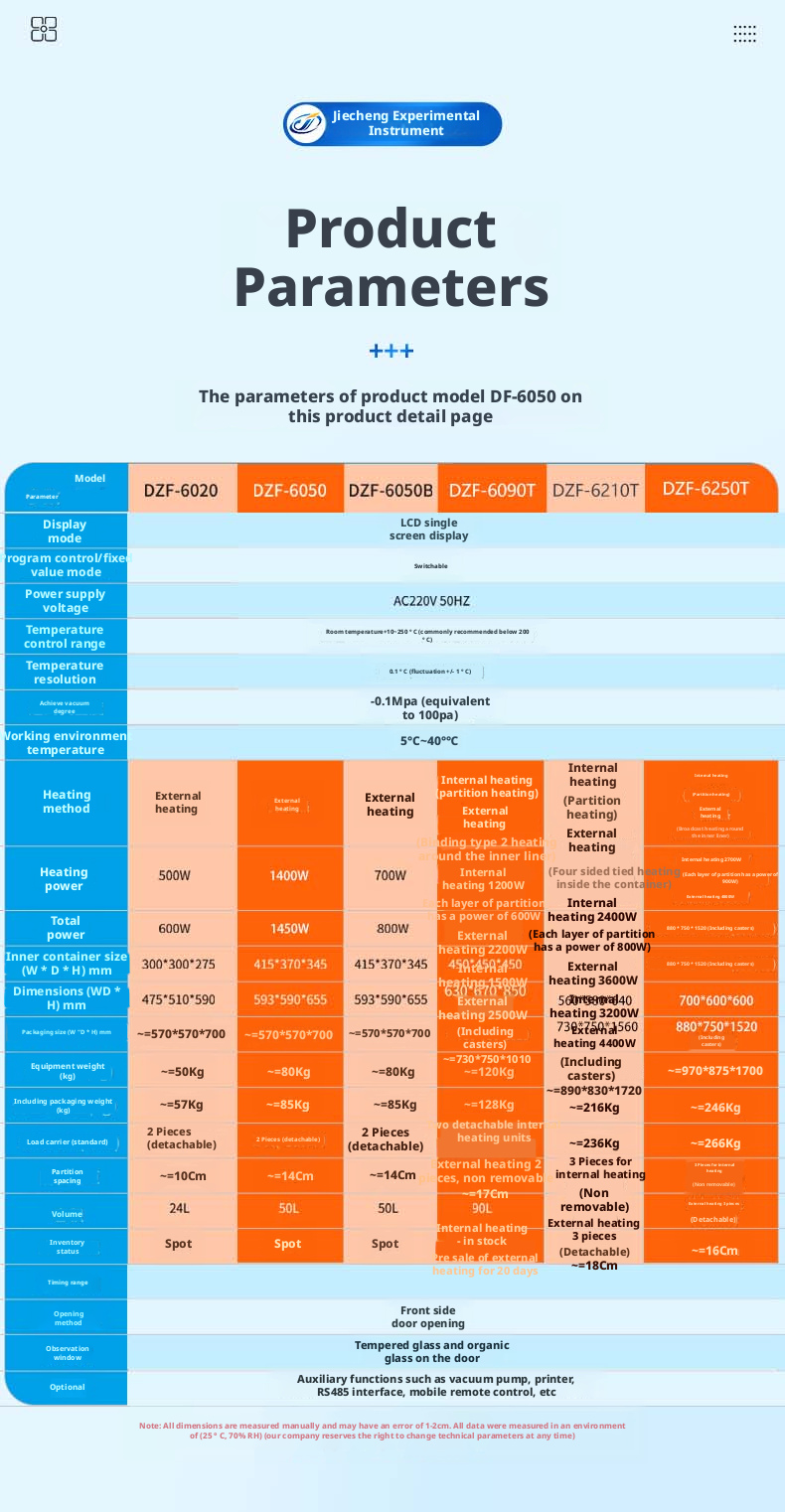

Parameter Introduction：
