The fully automatic vacuum drying oven, also known as the fully automatic vacuum drying oven, is designed specifically for electronic device curing, aging, moisture absorption, cosmetic leakage, and drying of heat sensitive, easily decomposed, and oxidizable substances. It can be filled with inert gas inside, especially for some complex components that can be quickly dried. It can save operators from frequent operations and other tasks.

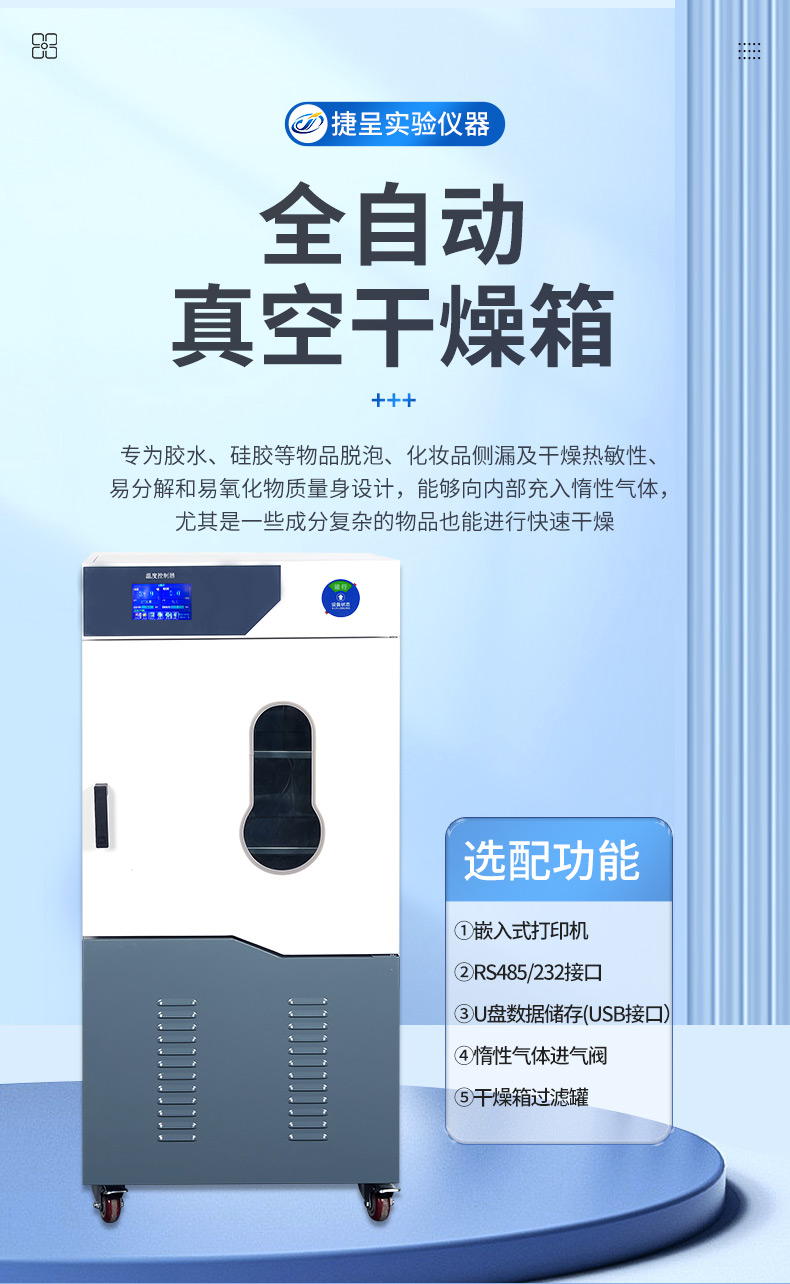

Fully automatic vacuum drying oven (lower cabinet with vacuum pump)

Model:DZF-625DZ

Product Introduction:

Fully automatic vacuum drying ovenAlso known as (fully automatic vacuum oven), it is designed for electronic device curing, aging, moisture absorption, cosmetic leakage, and drying of heat sensitive, easily decomposed, and oxidizable substances. It can be filled with inert gas inside, especially for some complex components that can be quickly dried. It can save operators from frequent operations and other tasks.

Structural characteristics:

shellThe whole machine is designed with thickening, and the outer box is made of cold-rolled steel plate with electrostatic spraying, which has strong corrosion resistance.

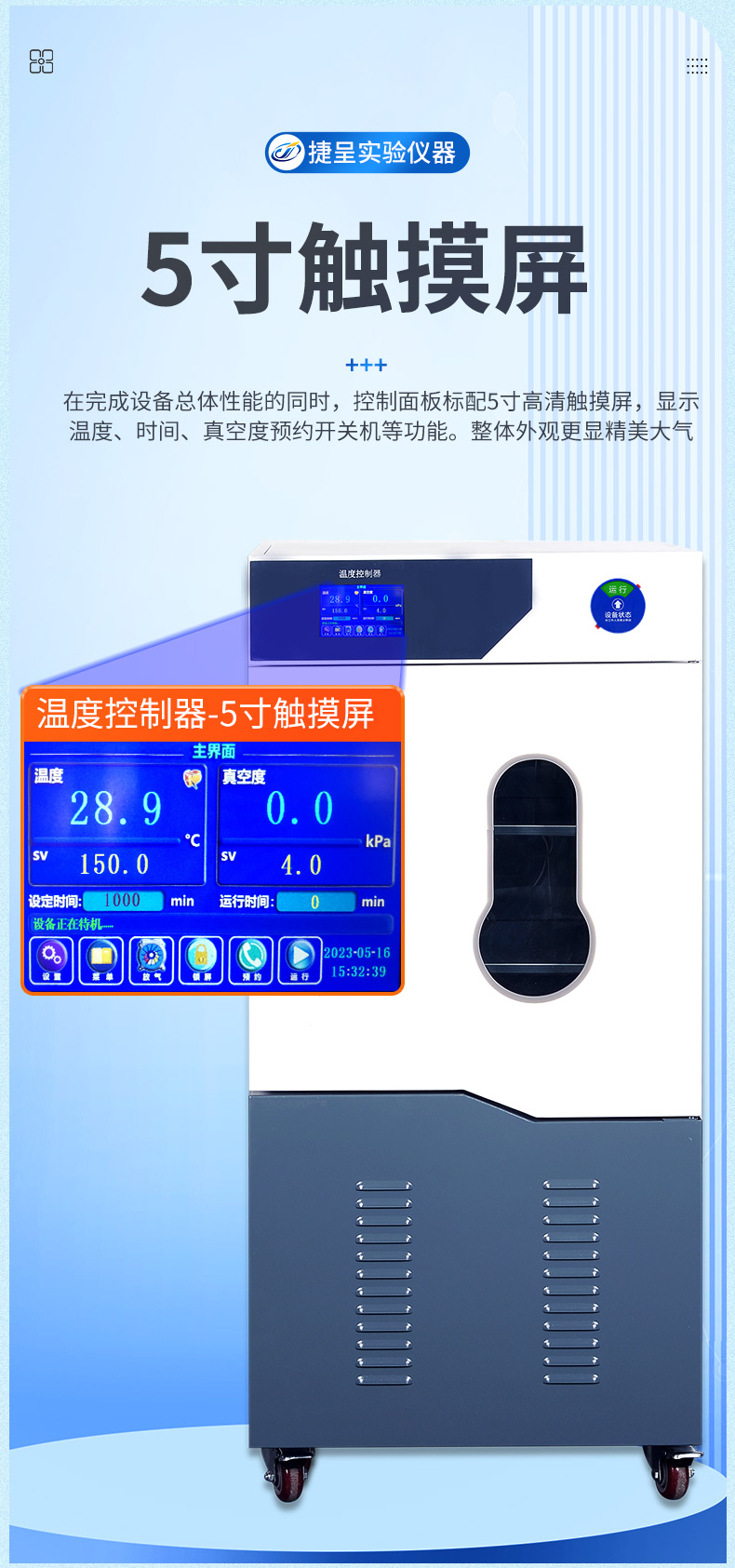

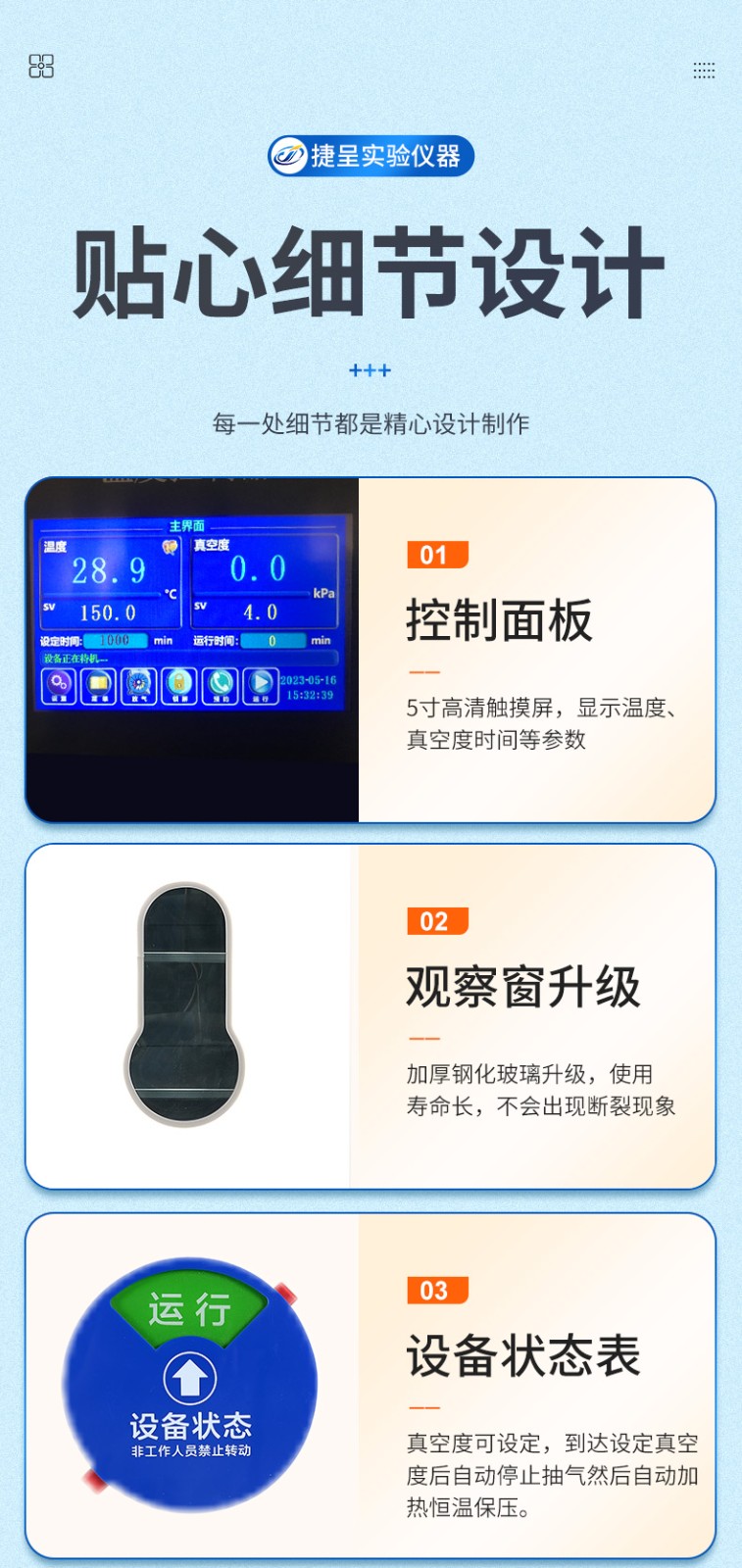

control panel:5-inch high-definition touch screen, displaying temperature, time, vacuum degree, scheduled power on/off functions, standard 9999 cycles, 10 segment programming, customized mode/programmable mode switching.

Fully automatic vacuum mode:The vacuum degree can be set, and when it reaches the set vacuum degree, it will automatically stop pumping and then automatically heat and maintain a constant temperature and pressure. (Can save operators from frequent operations and other tasks)

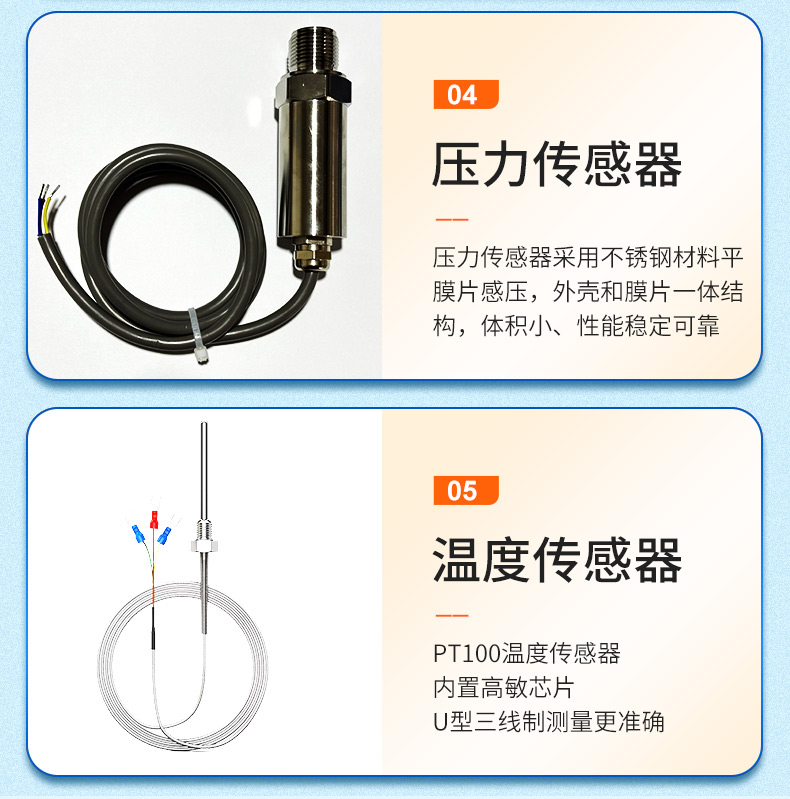

Pressure sensor:The pressure sensor adopts a stainless steel flat diaphragm for pressure sensing, with an integrated structure of the housing and diaphragm, small size, stable and reliable performance.

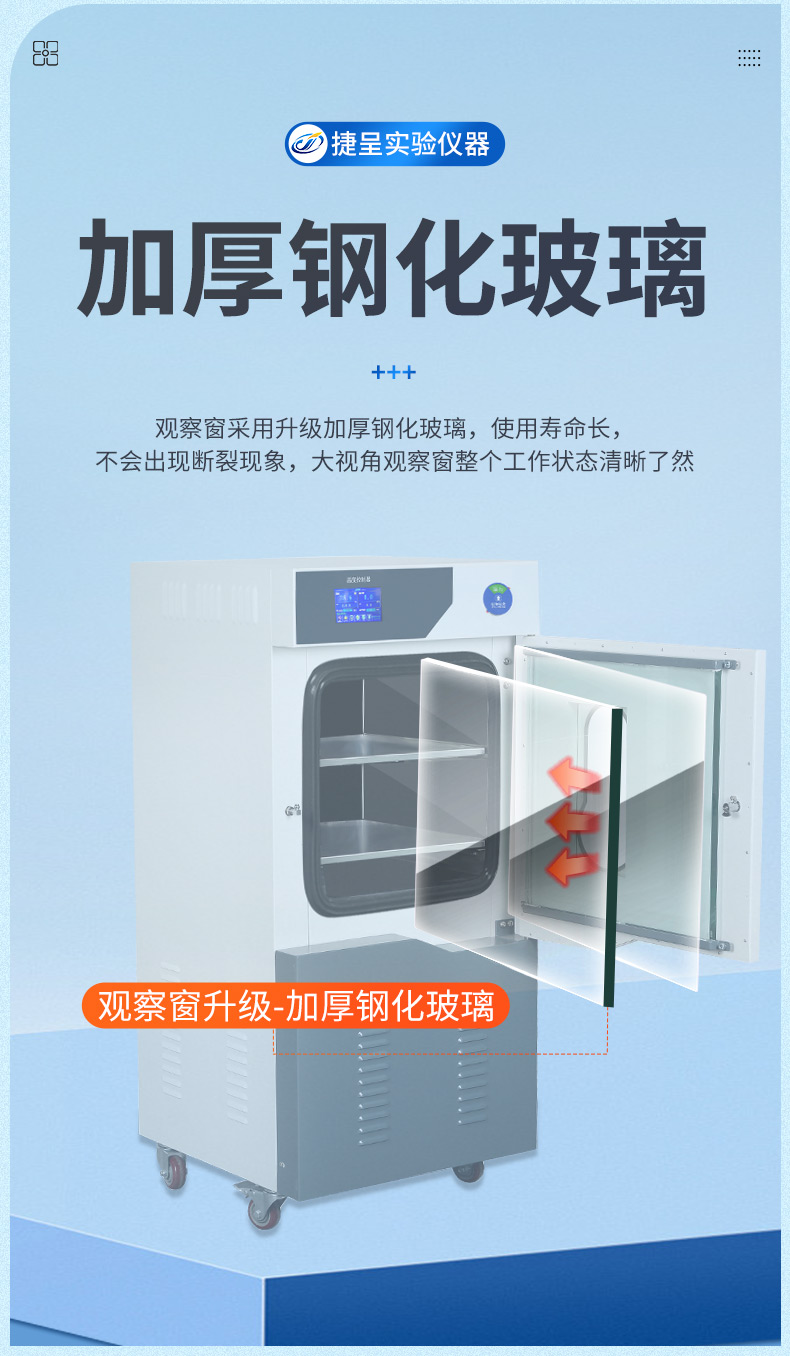

Observation window:Thick tempered glass, with a large viewing angle, provides a clear understanding of the entire working state of the observation window

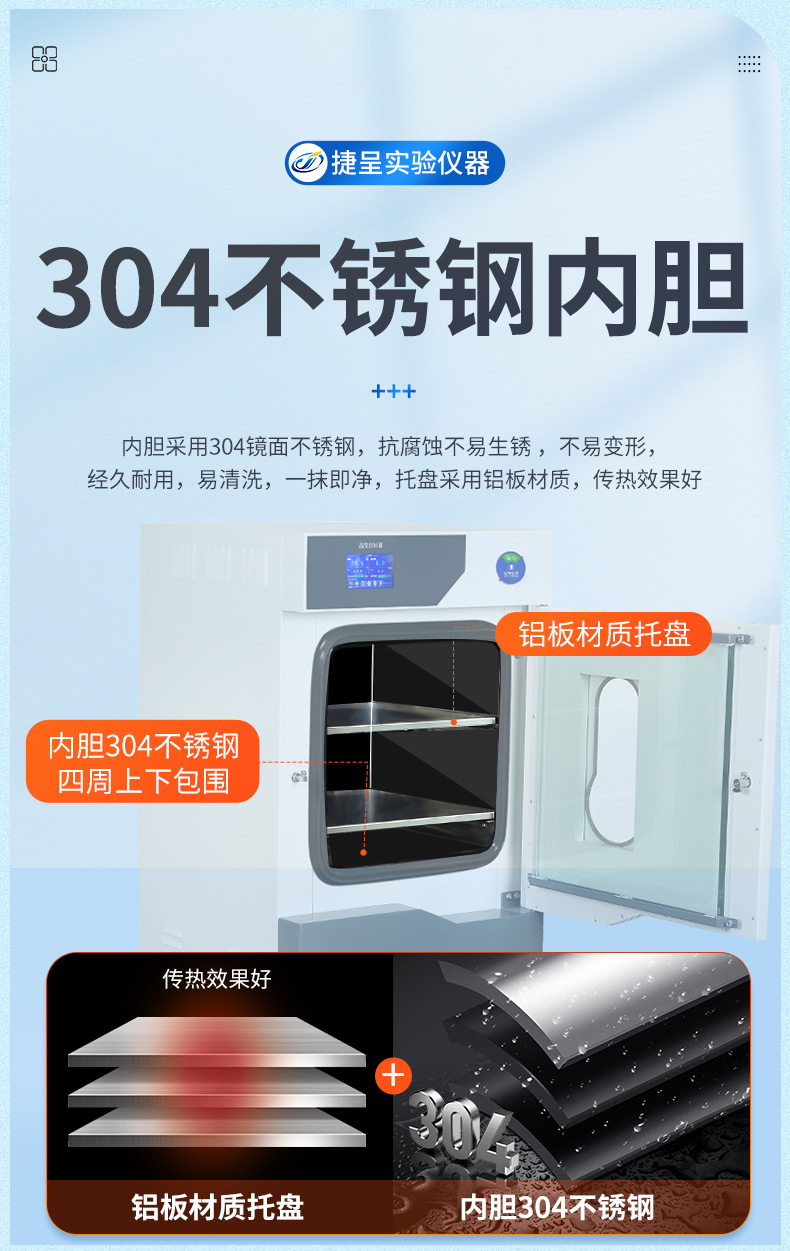

Inner container:Adopting a thickened inner liner304 mirror stainless steel, reinforced with external reinforcing ribs.

a partition:The tray is made of aluminum plate material, which has good heat transfer effect.

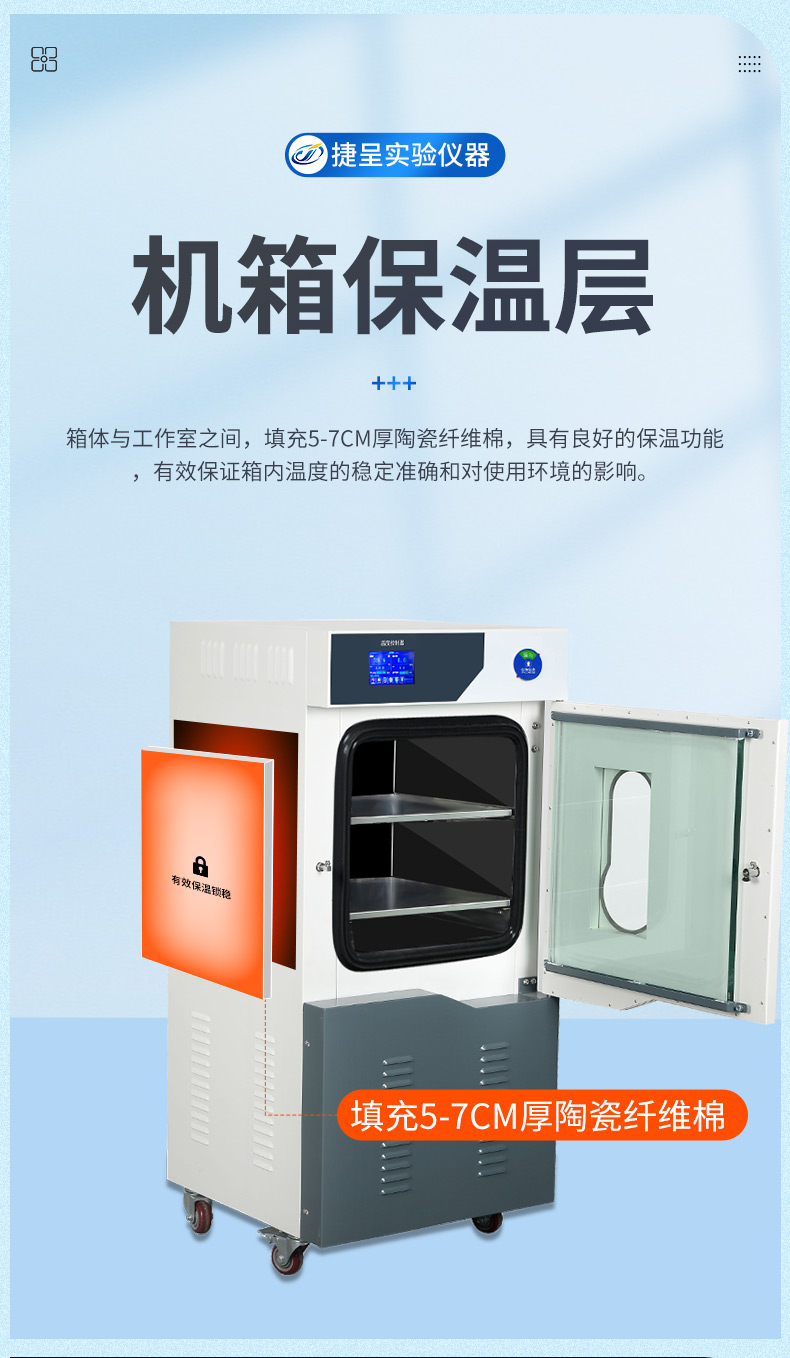

Insulation layer:Fill between the box and the studio5-7CM thick ceramic fiber cotton has good insulation function, effectively ensuring stable and accurate temperature inside the box and its impact on the usage environment.

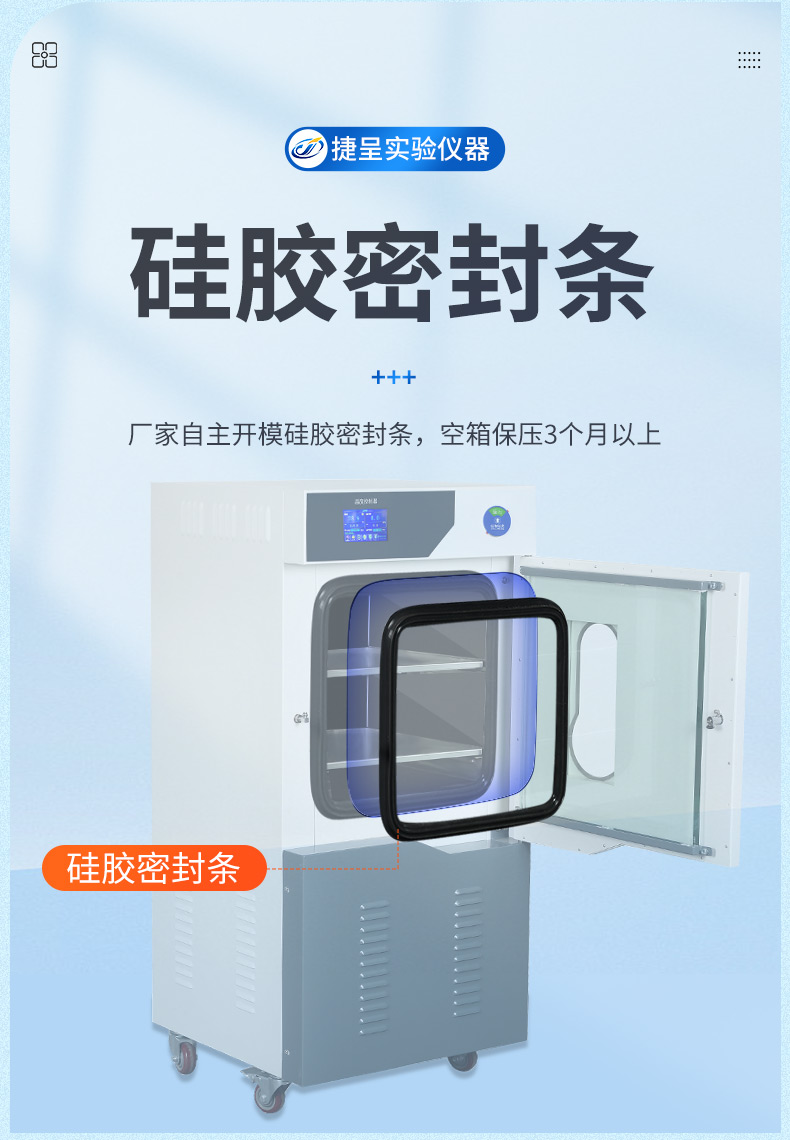

Sealing strip:Our company independently develops silicone sealing strips and maintains pressure in empty boxesMore than 3 months.

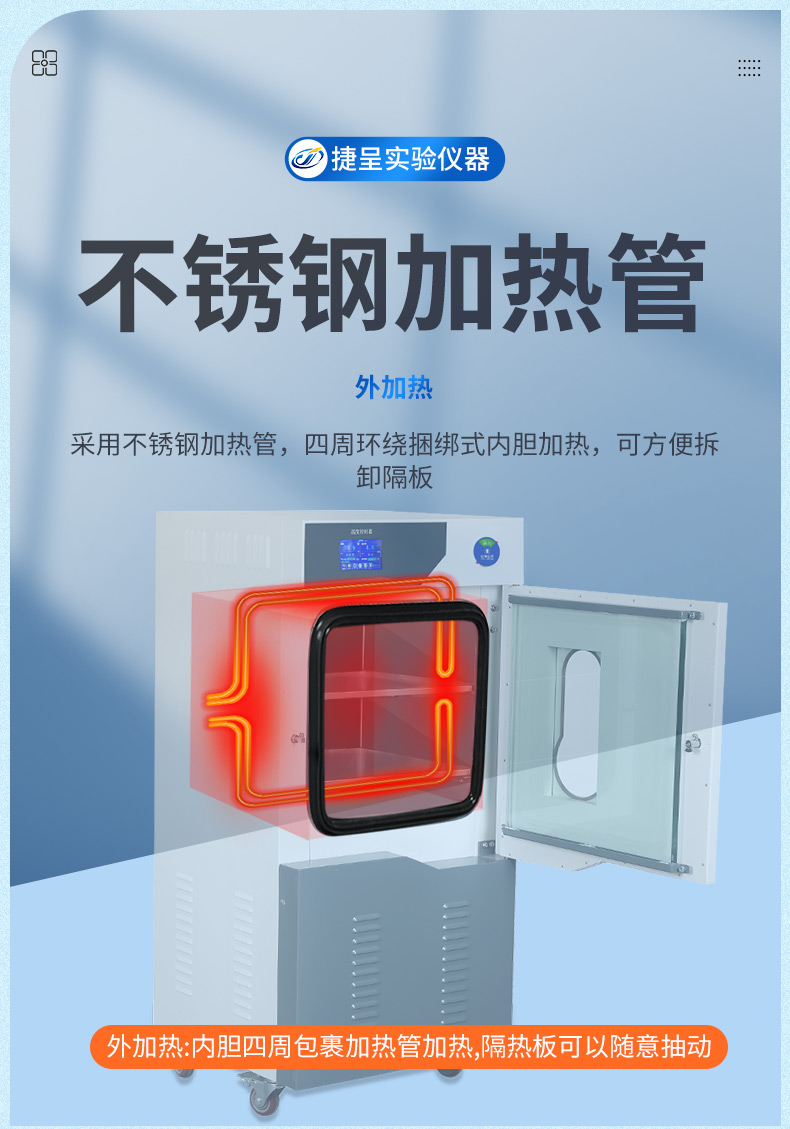

Heating tube:Using stainless steel heating tubes, heating is fast and the uniformity is stable.

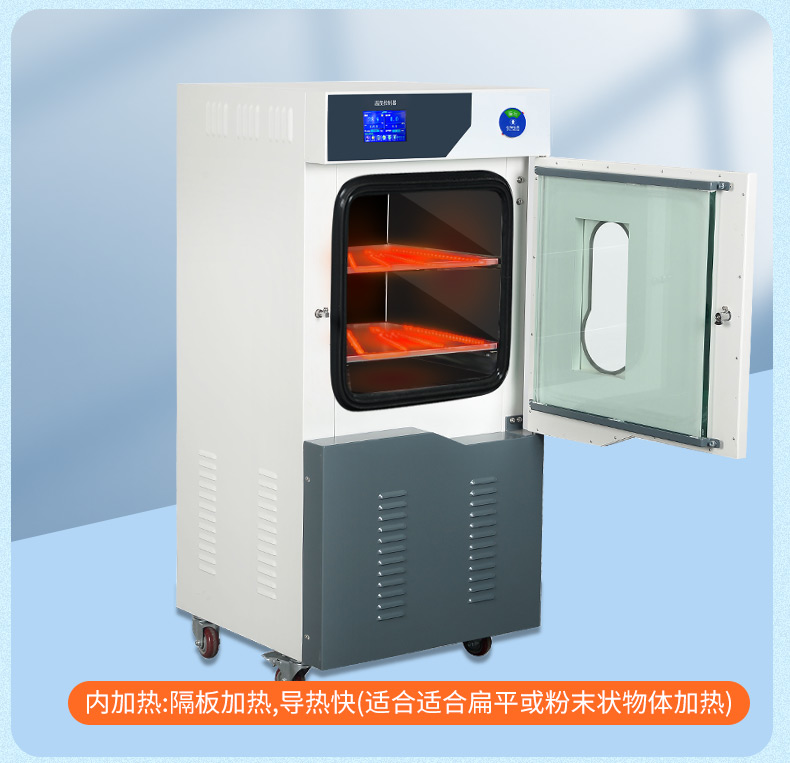

Heating methods can be selected:External heating (bundled heating around the inner container).

intake valve:The side adopts a new type of ball valve control, which is easy to operate and can add an inert gas inlet valve.

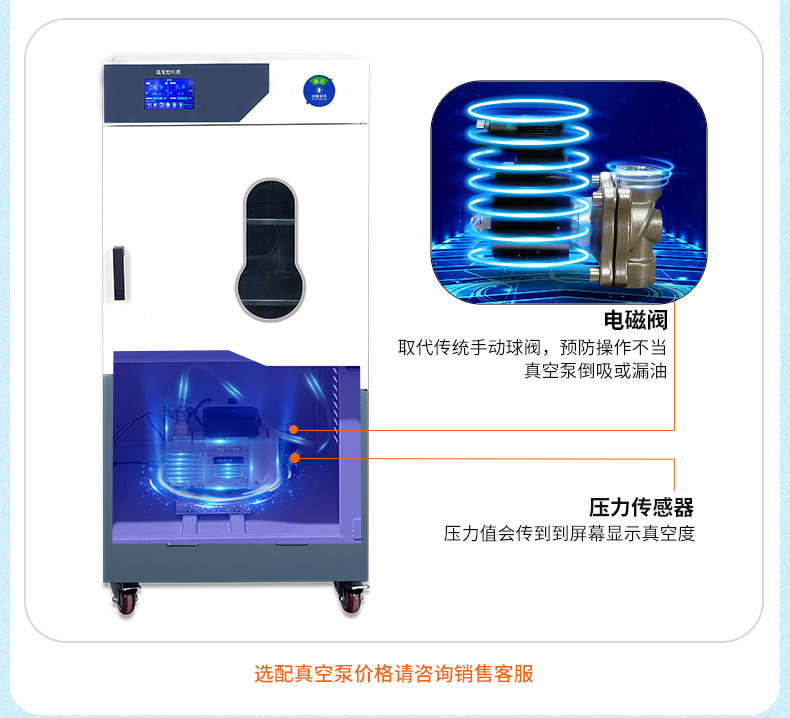

Solenoid valve:Replace traditional manual ball valves to prevent improper operation, vacuum pump suction or oil leakage.

Lower body cabinet:The standard configuration uses Zhejiang Feiyue vacuum pump. (Other brands of vacuum pumps can also be specified)

Introduction to Control System:

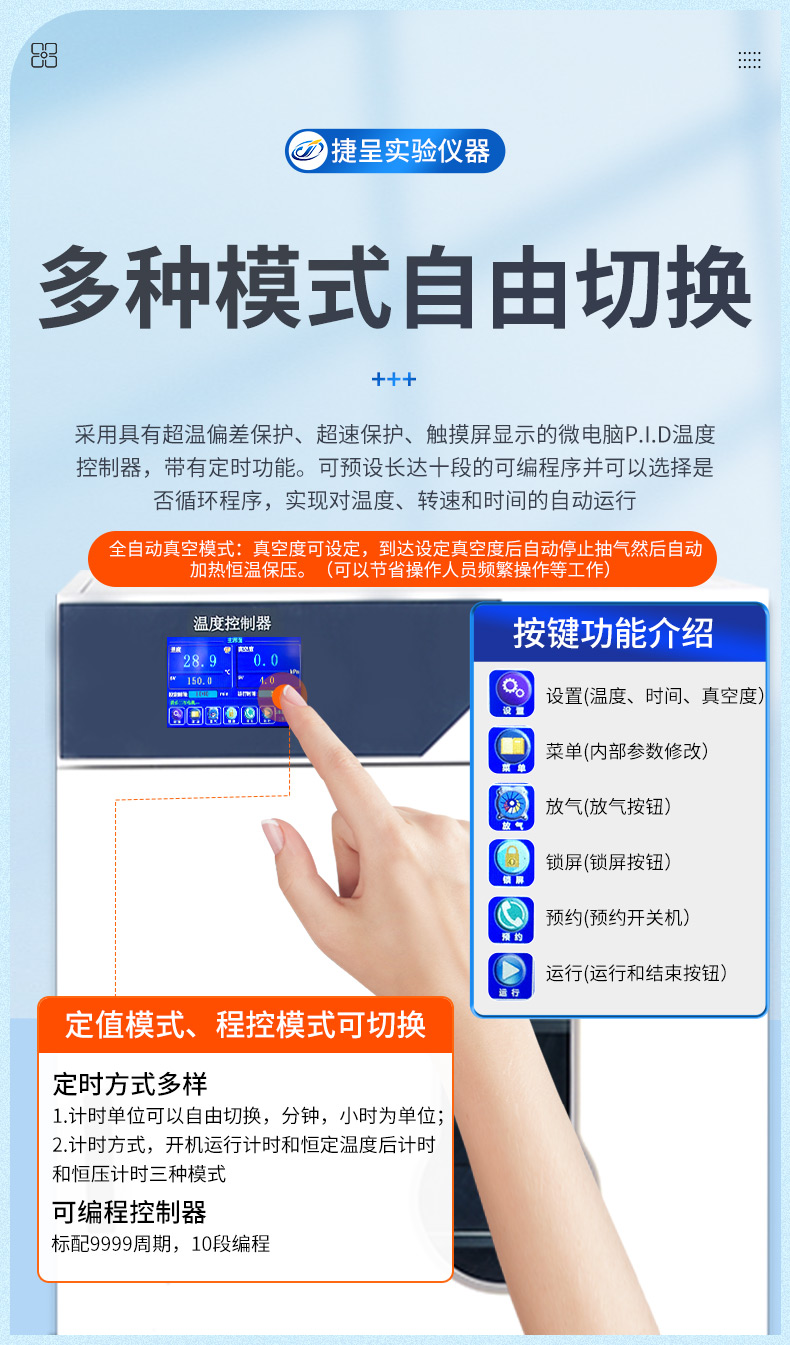

★ Personalized program design: Fixed value mode and programmable mode can be switched. Can preset up to ten programmable programs and choose whether to loop the program, achieving automatic operation of temperature and time

★ Adopting a microcomputer P.I.D temperature controller with over temperature deviation protection, over temperature protection, and touch screen display, with timing function.

★ There are various timing methods: 1. The timing unit can be freely switched, with minutes and hours as units;

2. There are three timing modes: startup timing, constant temperature timing, and constant pressure timing.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★ Set parameters with password lock to prevent personnel from tampering with set values and other information.

★ Over temperature alarm, over temperature alarm, timed shutdown, power recovery, parameter encryption, temperature correction, speed correction and other functions.

★ Equipped with power-off recovery function: In the event of a sudden power loss and subsequent power restoration from the external power source, the device can automatically resume operation according to the original set program

Security function:

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc

Parameter introduction:

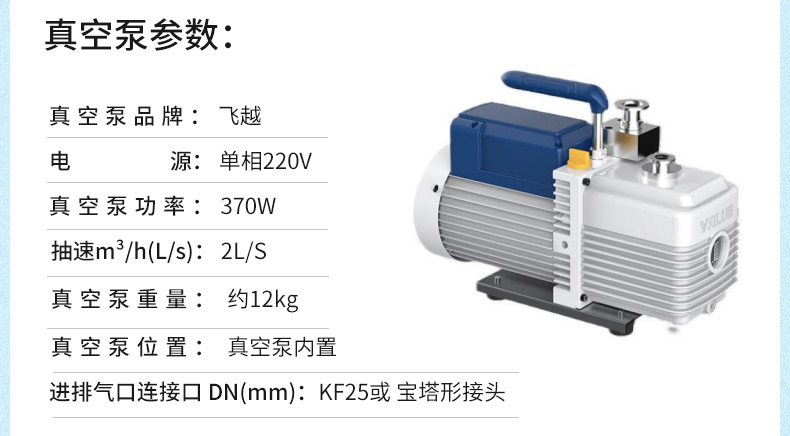

Vacuum pump parameters:
