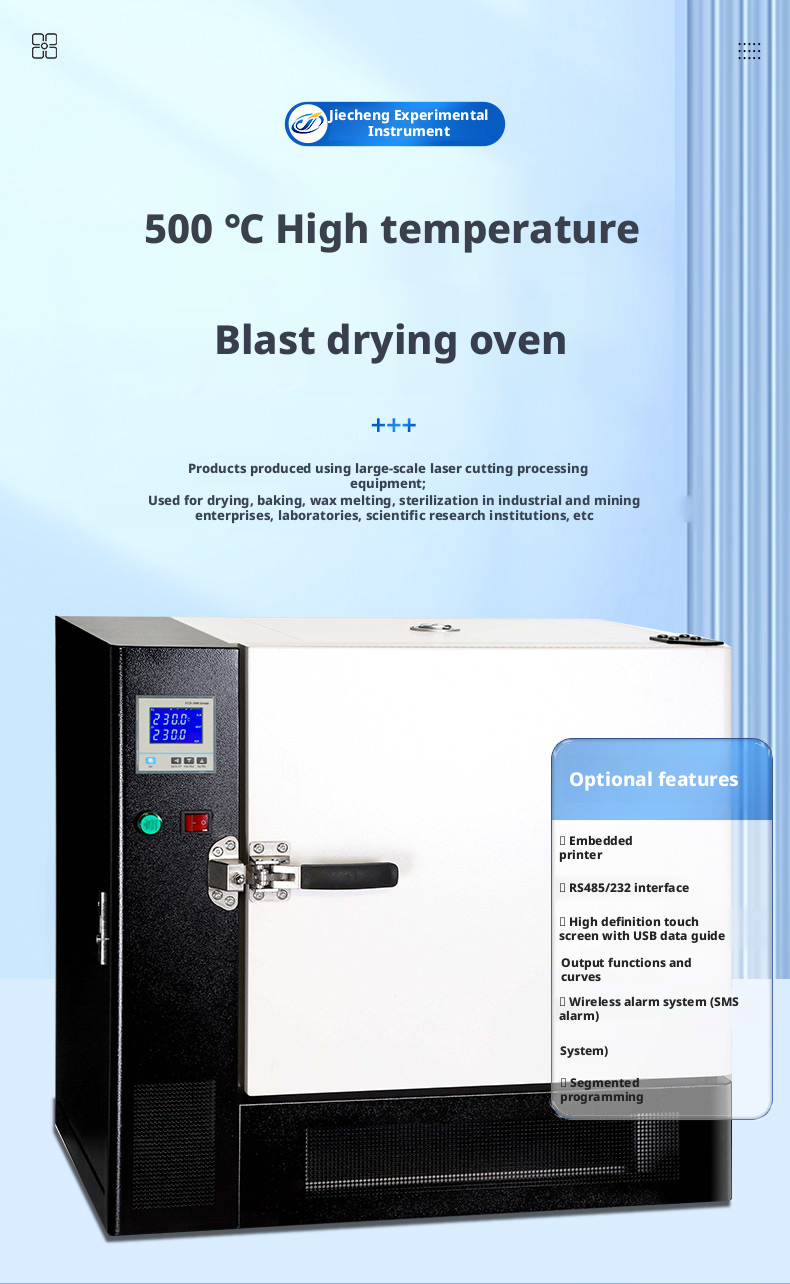

High temperature blast drying oven, also known as high-temperature oven, is a product produced using large laser cutting processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research institutions, etc.

Product Introduction:

high temperatureBlast drying oven, also known as（high temperatureProducts produced using large-scale laser cutting processing equipment, such as blast ovens; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research institutions, etc.

structural characteristics： Note:★Unique advantages for the product

shellcomplete machineAppearance upgrade,. The outer box is made of cold-rolled steel plateElectrostatic spray box,Strong corrosion resistance.

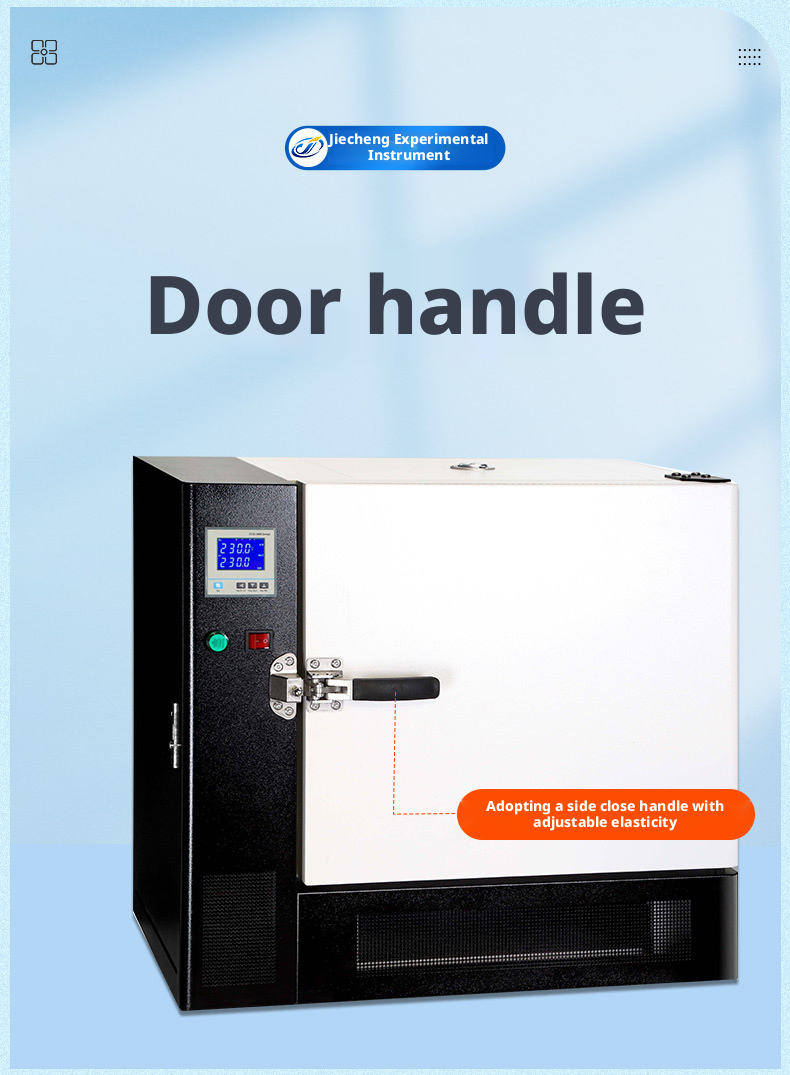

door lock：Adopting a side close handle with adjustable elasticity

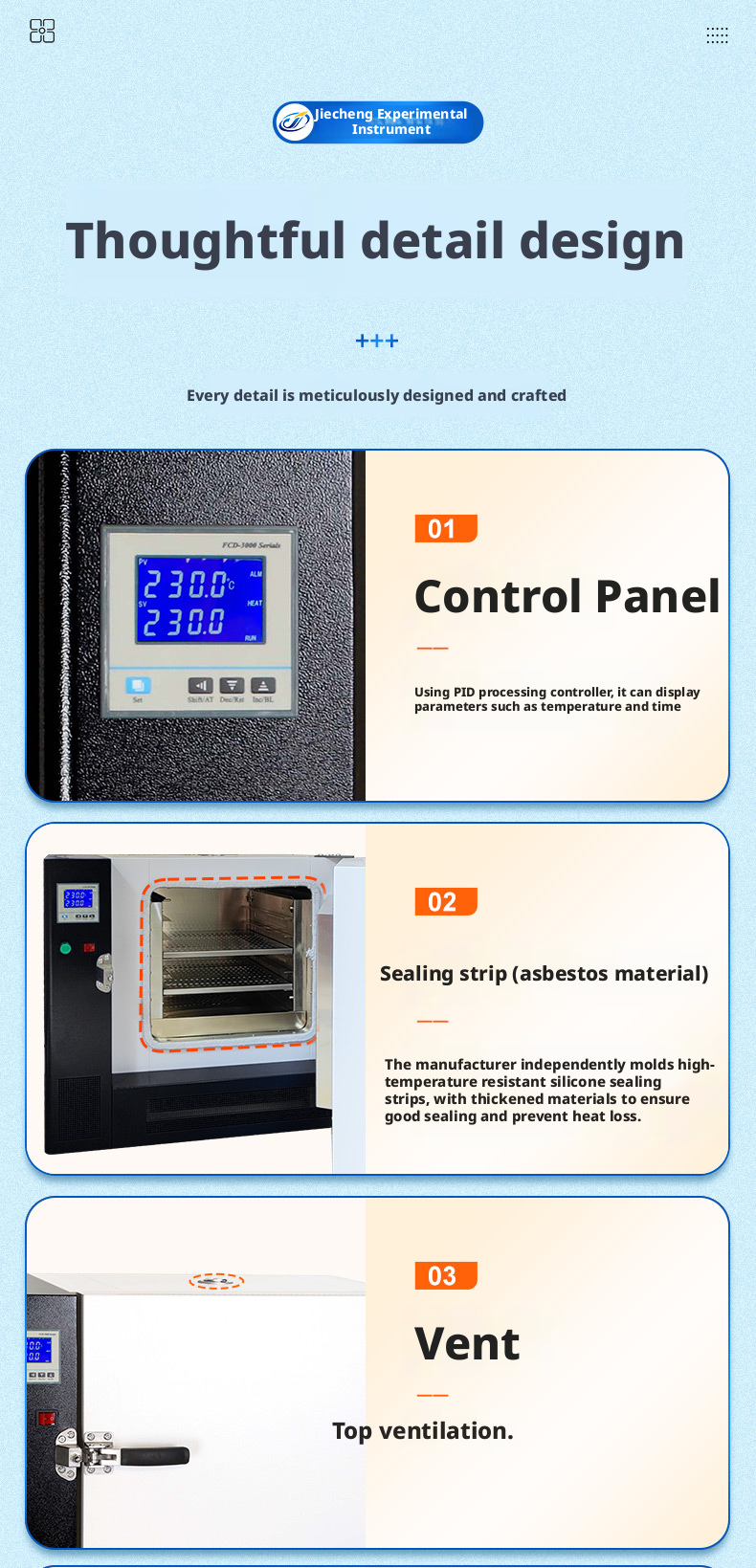

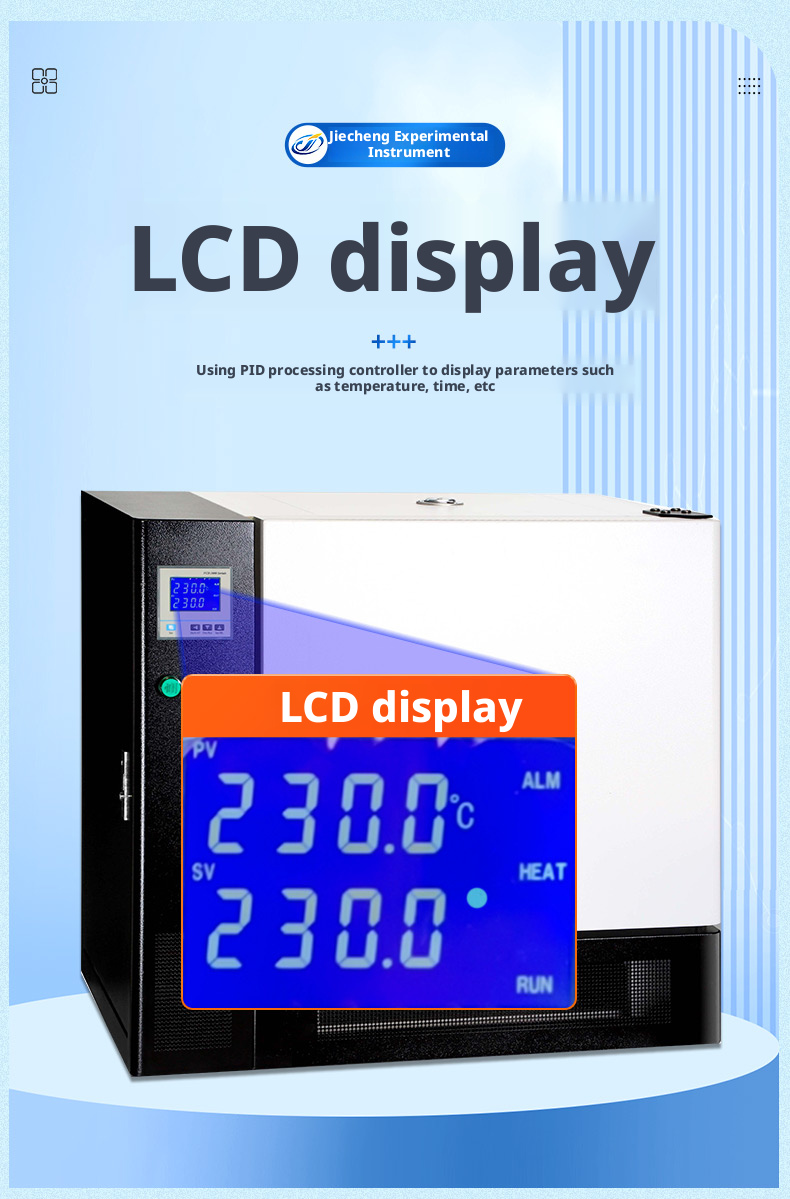

control panel:adoptPID processing controller,Display parameters such as temperature and time

sealing strip：The manufacturer independently molds silicone asbestos sealing strips,Material thickening production.

air switch:Stable and highly repetitive Instead of traditional fuses, fuses need to be replaced after melting

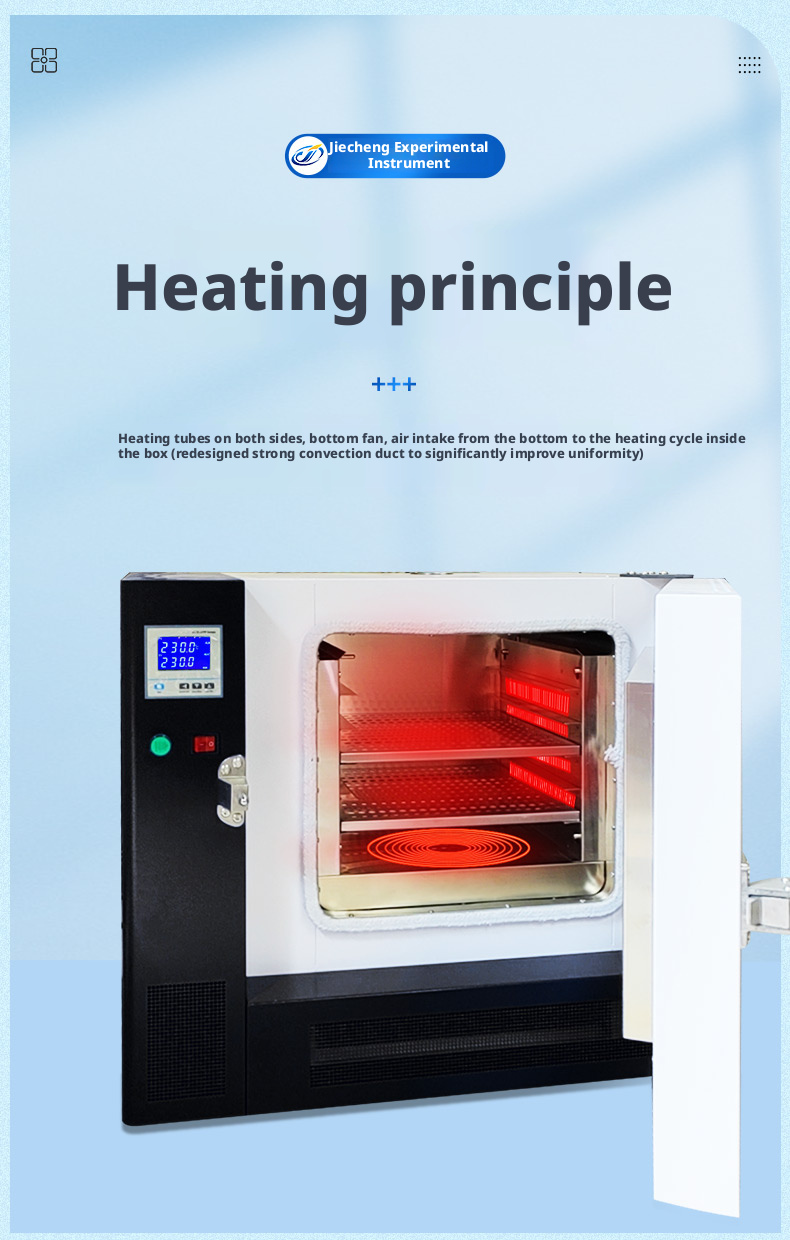

Improvement of air duct structure：Heating tubes on both sides, bottom fan, air enters from the bottom and circulates inside the box for heating(Redesigning strong convection ducts to significantly improve uniformity)

★Inner liner material:316 double-layer inner liner air duct structure, good insulation, and lower shell temperature.

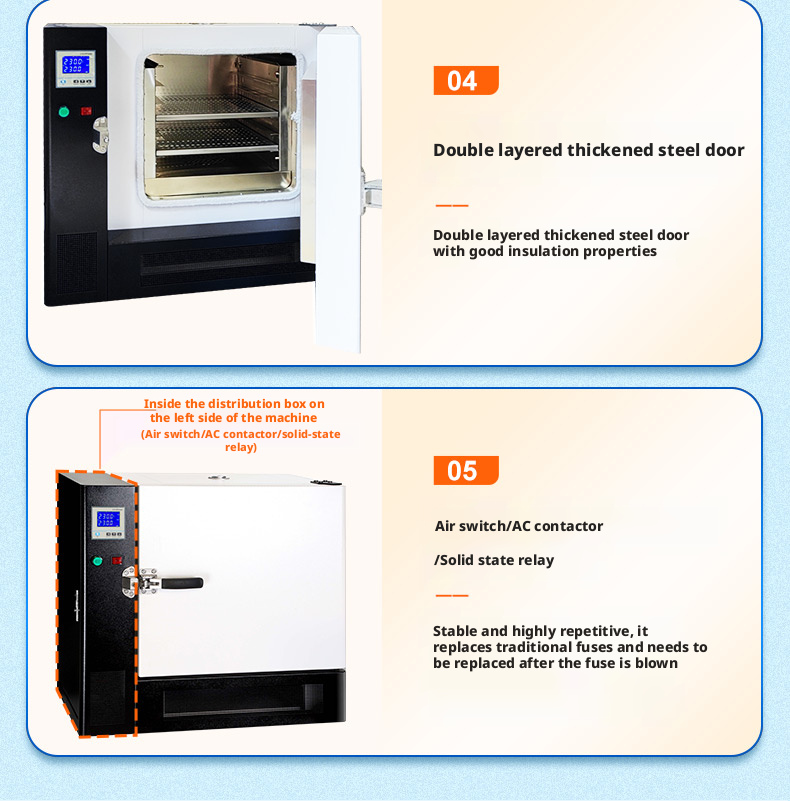

★Door:Double layered thickened steel door with good insulation properties

Ventilation opening:Top ventilation.

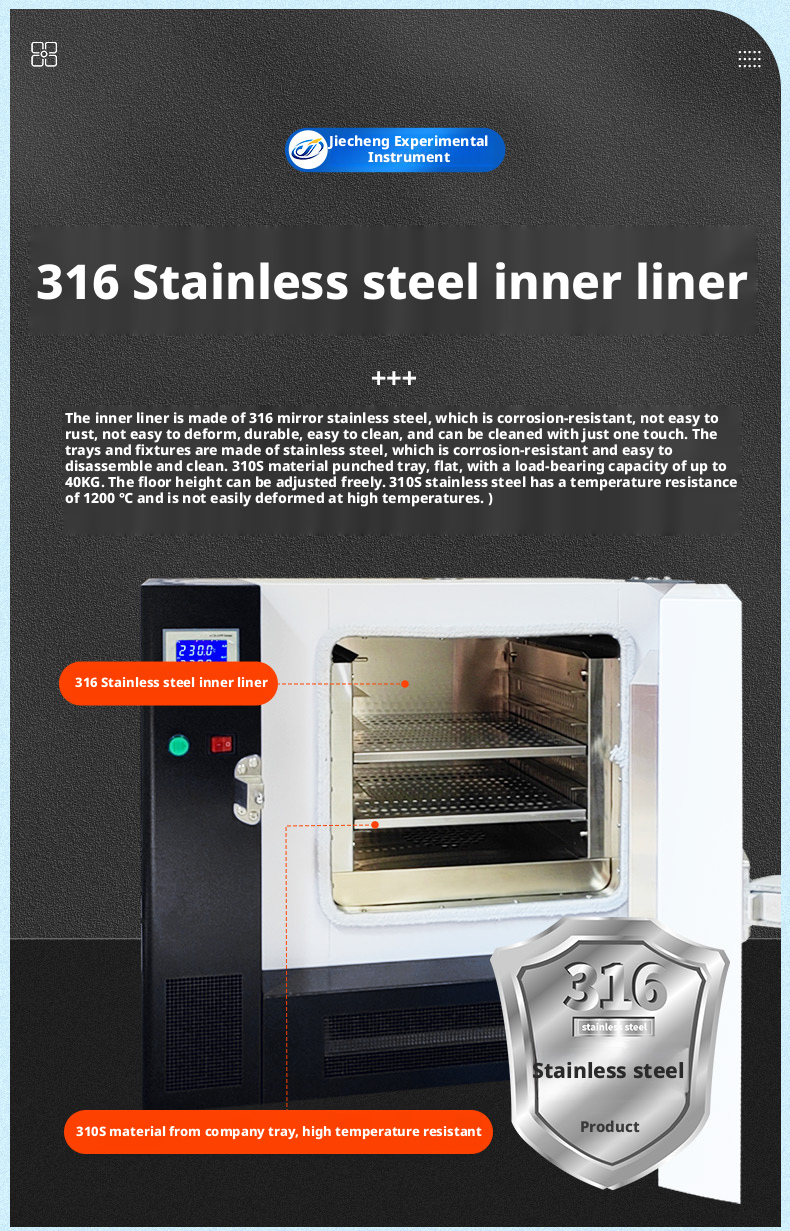

★Inner container:adopt316 stainless steelstainless steel，Using circular arcsR-angle, easy to clean.

★partitionBoard:310S material punchingformulapallet，Flat and capable of bearing weight up to40KG. The floor height can be adjusted freely. 310S stainless steel with a temperature resistance of 1200℃Not easily deformed at high temperatures. ）

Insulation layer:Adopting a dual shell design，High temperature cannot be transmitted to the casing.5-7CM insulation layerHas good insulation function.

heatTube:Stainless steel heatingThe pipes are located on the left and right sides of the equipment, with air entering from the back and circulating inside the box for heating (which can effectively prevent liquid droplets from falling onto the heating pipes and causing explosions)

★After-sales service is guaranteed.：After sales service is available throughout the country (excluding townships)

★Provide video teaching：Reduce the time for users to read the manual.

Introduction to Control System：

★ Personalized program design：Fixed value mode,PID processing controller, capable ofDisplay parameters such as temperature and time

★ Equipped with over temperature deviation protection, over speed protectiontouch screenMicrocomputer P.I.D temperature controller with timing function displayed.

★There are various timing methods:1. The timing unit can be freely switched, with minutes and hours as units;

2. There are two timing modes: startup timing and constant temperature timing.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★ Over temperature alarm, scheduled shutdown, power recovery, parameter encryption, temperature correction.

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, overtemperature alarm, separate over rise protector, overcurrent trip protection, etc.

★ Equipped with power-off recovery function：After the external power supply suddenly loses power and returns to power, the device can automatically resume operation according to the original set program

★ Self tuning function:When the temperature control is abnormal, the self-tuning function can be used, and the controller will calculate reasonable parameters on its own.

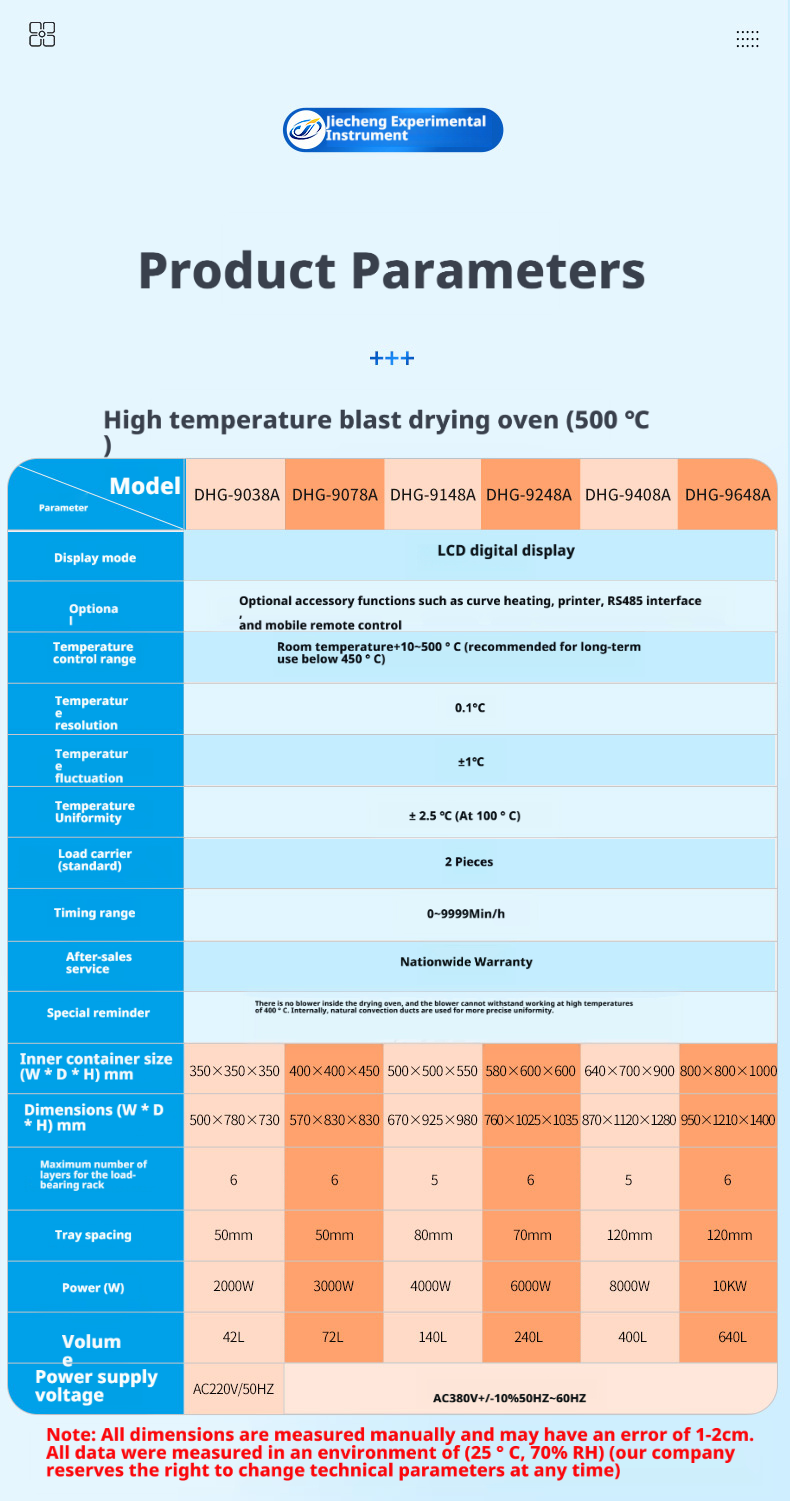

Parameter Introduction：
