The high vacuum fully automatic vacuum drying oven, also known as the fully automatic vacuum oven, combines the company's years of successful experience in box heating. Through continuous research and innovation, it breaks through traditional technology and creatively solves the “bottleneck“ in the heat conduction process-=

Product Introduction:

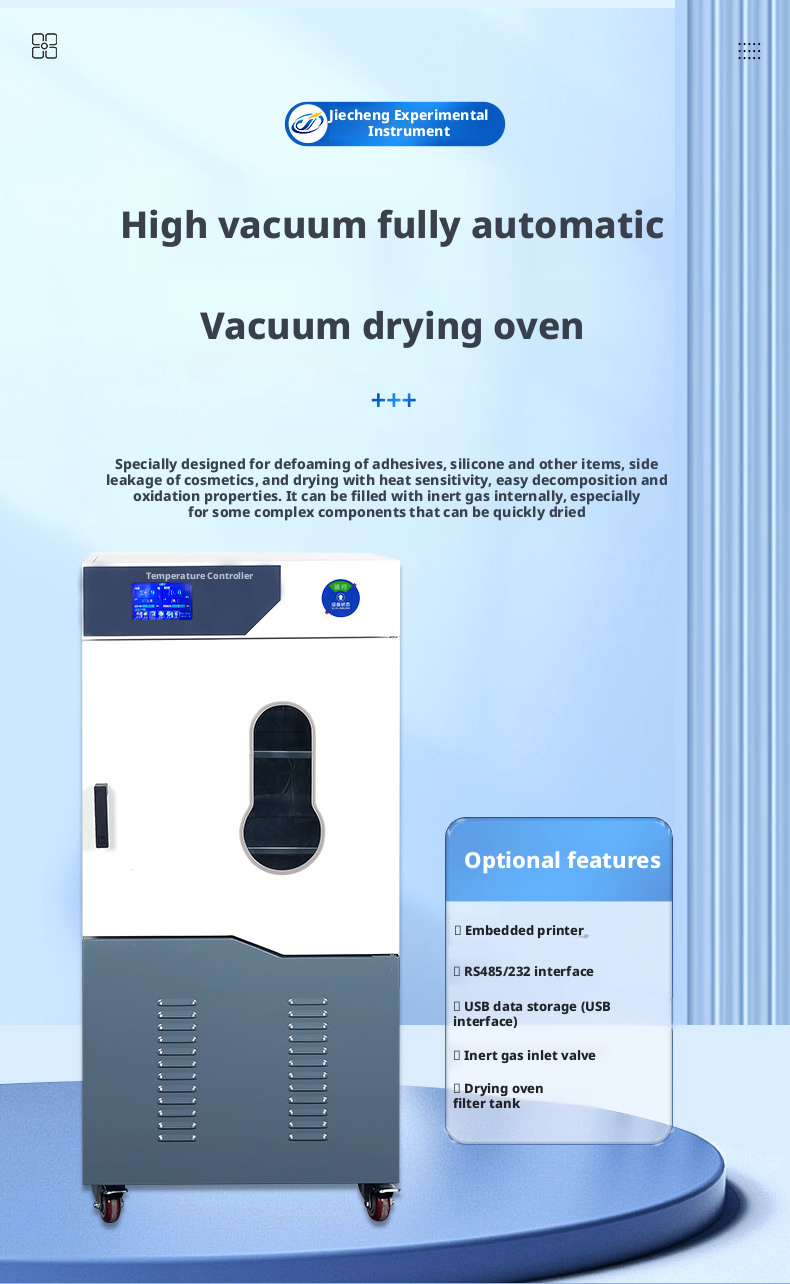

高真空fully automaticVacuum drying oven, also known as（高真空fully automaticThe vacuum oven is designed specifically for defoaming glue, silicone and other items, side leakage of cosmetics, and drying of heat sensitive, easily decomposable and oxidizable substances. It can be filled with inert gas inside, especially for some complex components that can be quickly dried. It can save operators from frequent operations and other tasks.

structural characteristics：

shellcomplete machinethickendesignThe outer box is made of cold-rolled steel plateElectrostatic spray box,Strong corrosion resistance.

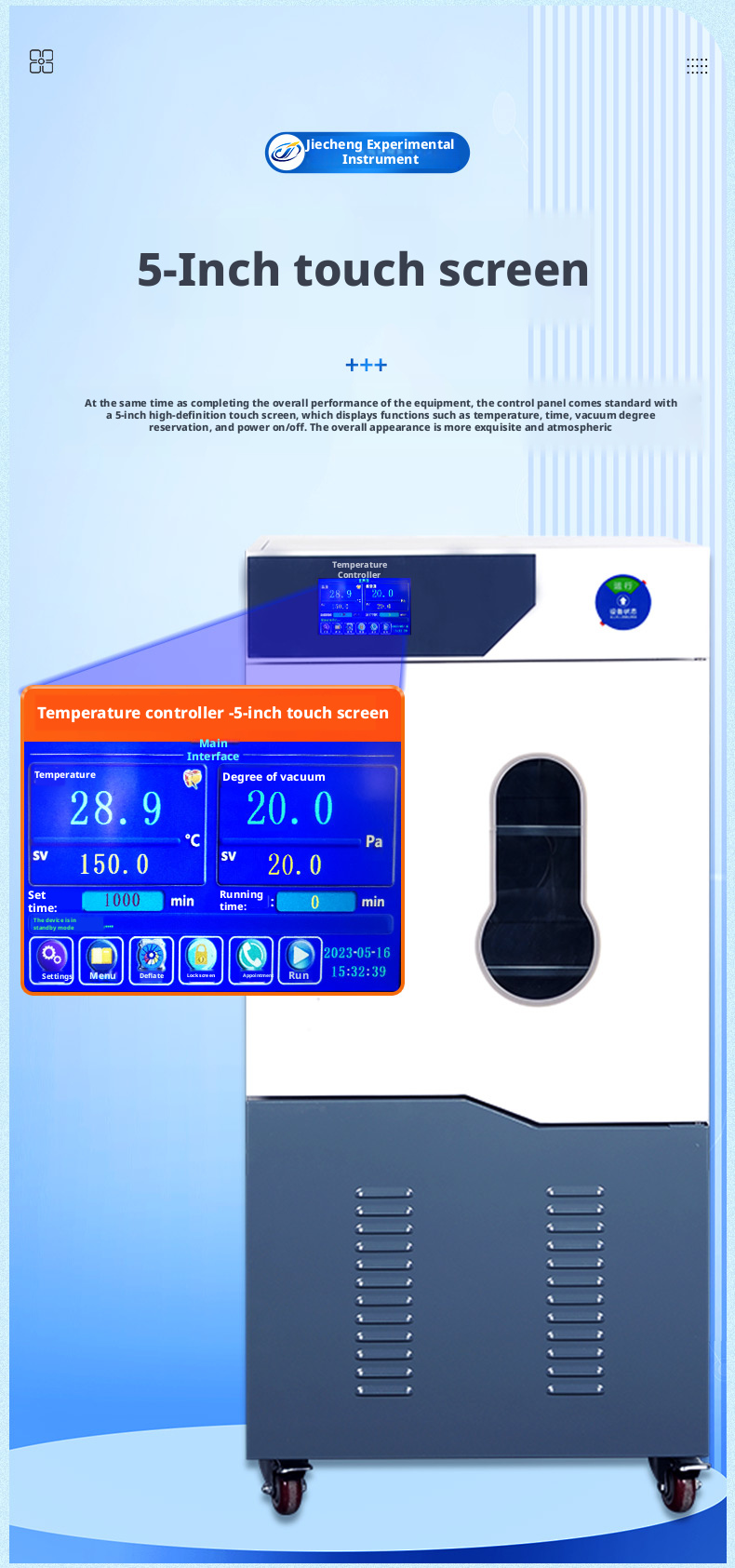

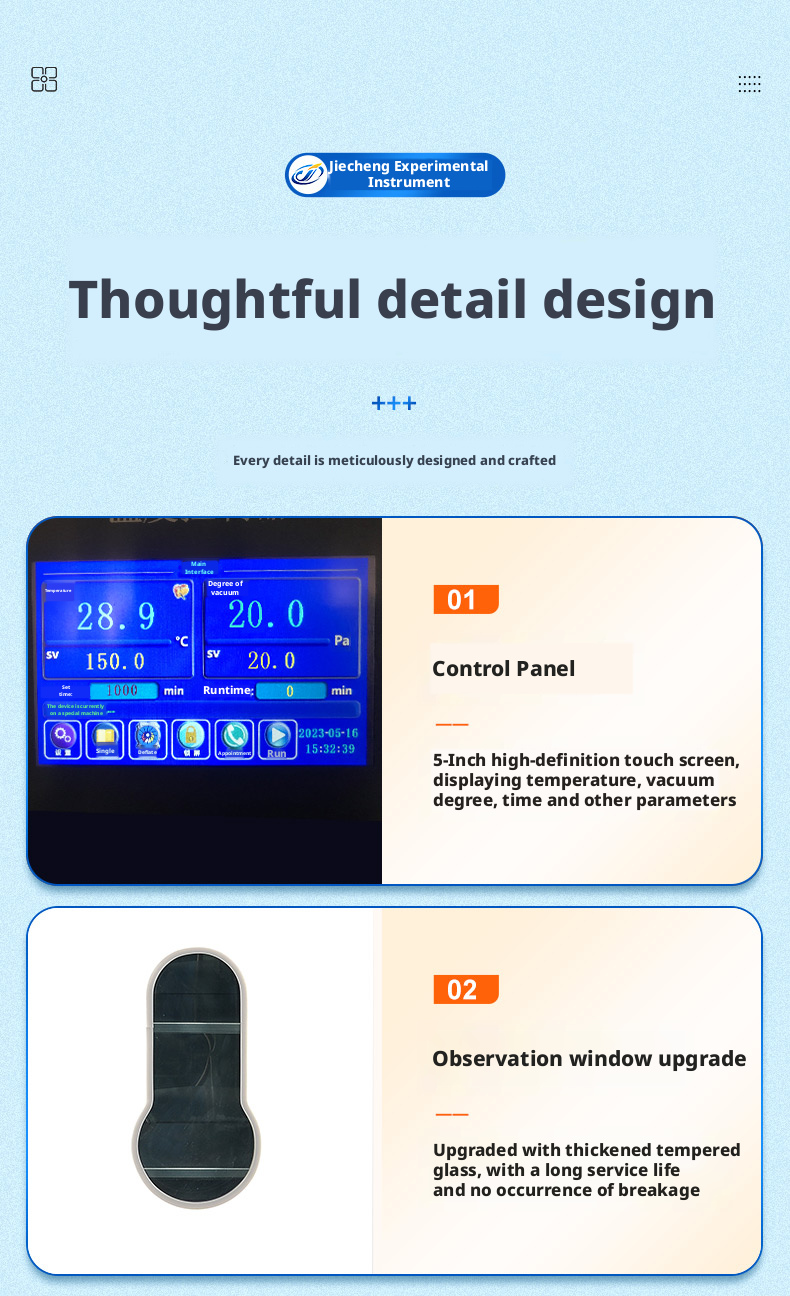

control panel:5-inch high-definition touch screen，displayTemperature and timeThe真空度、Appointment for power on/offWaiting for functions,Standard 9999 cycles, 10 segment programming,Custom mode/Program control mode switchchange.

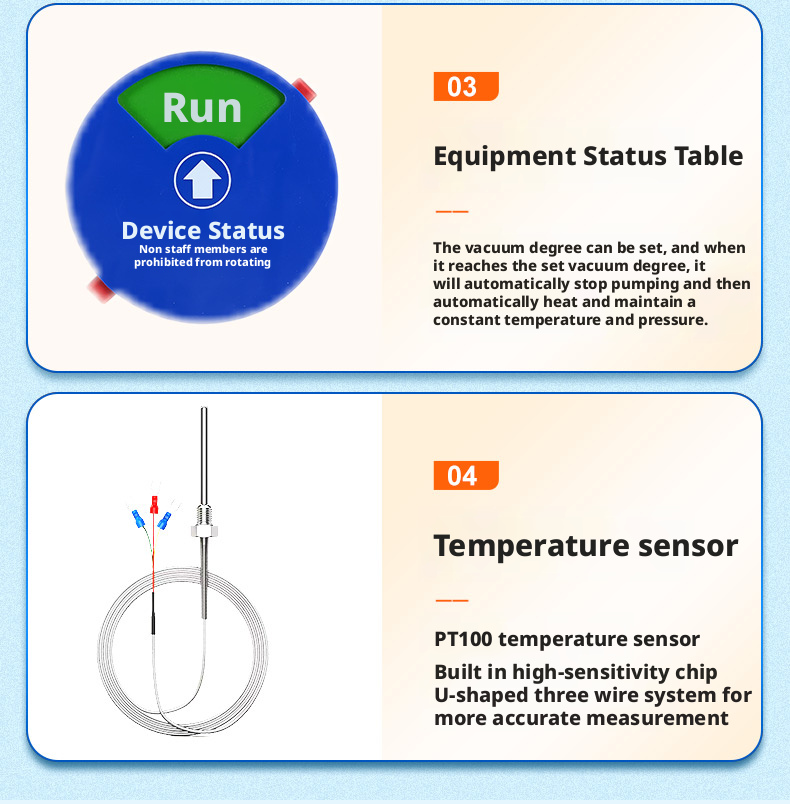

Fully automatic vacuum mode:The vacuum degree can be set, and when it reaches the set vacuum degree, it will automatically stop pumping and then automatically heat and maintain a constant temperature and pressure. (Can save operators from frequent operations and other tasks)

Vacuum gauge:Using a resistance vacuum gauge,Utilize low voltageThe heat conduction of gases is related to pressure-Principle made.

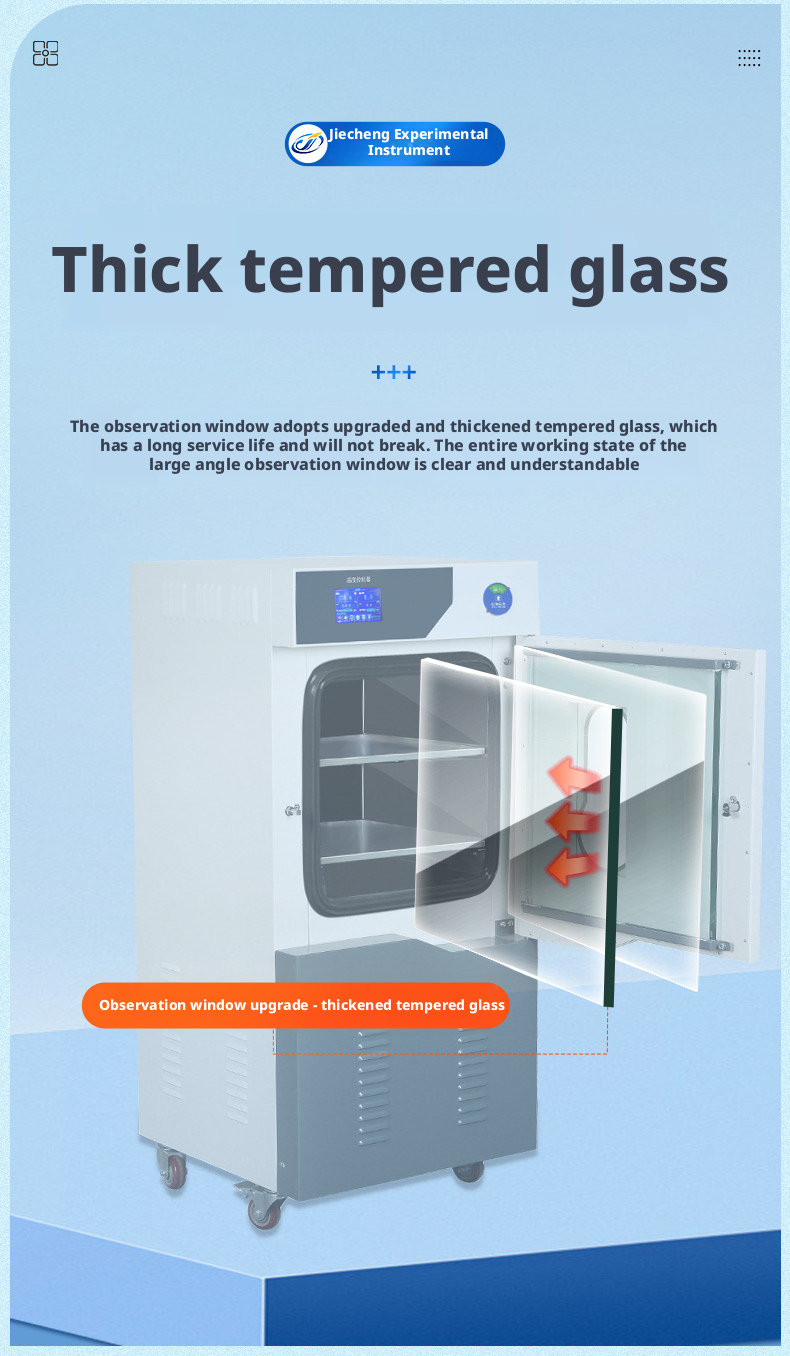

Observation window:Thick tempered glass,The entire working state of the wide-angle observation window is clear and distinct

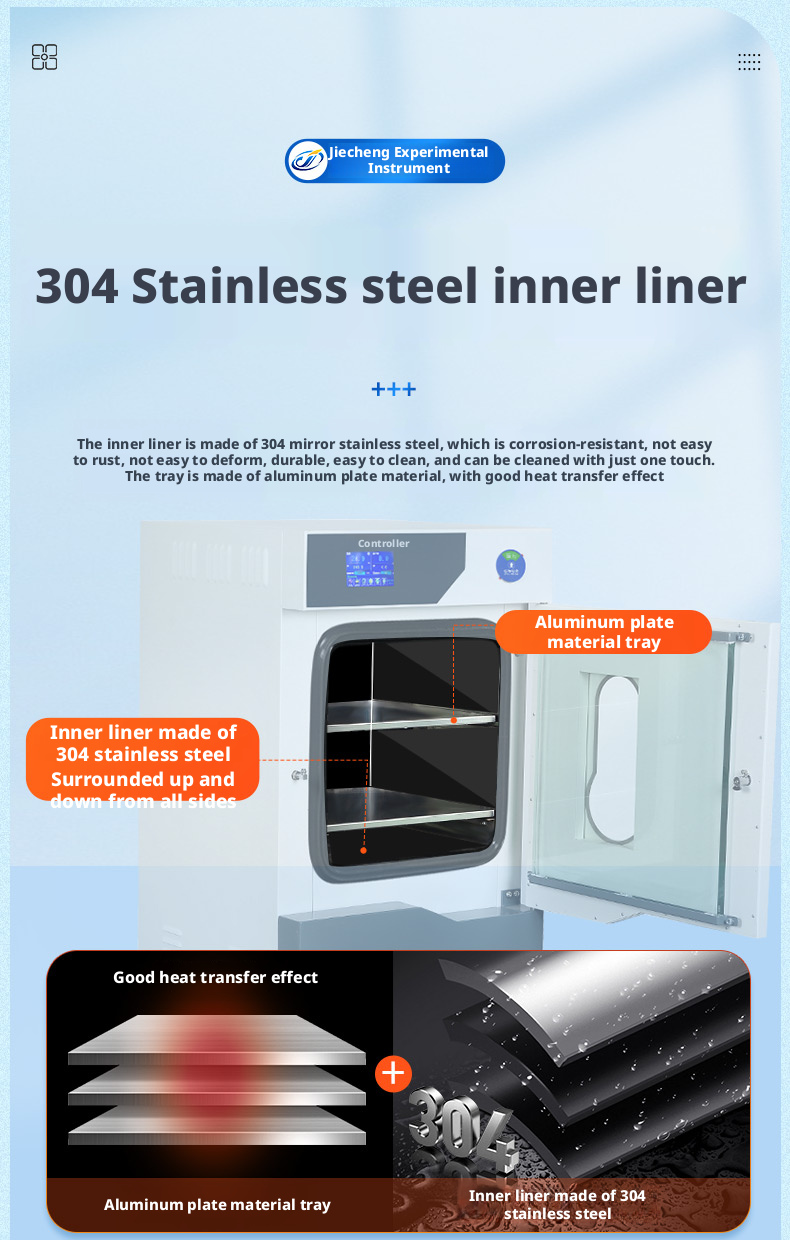

Inner container:adopt thickeninginsidegallbladder304Mirror-finished stainless steelStrengthening external reinforcement.

partitionBoard:The tray is made of aluminum plate material, which has good heat transfer effect.

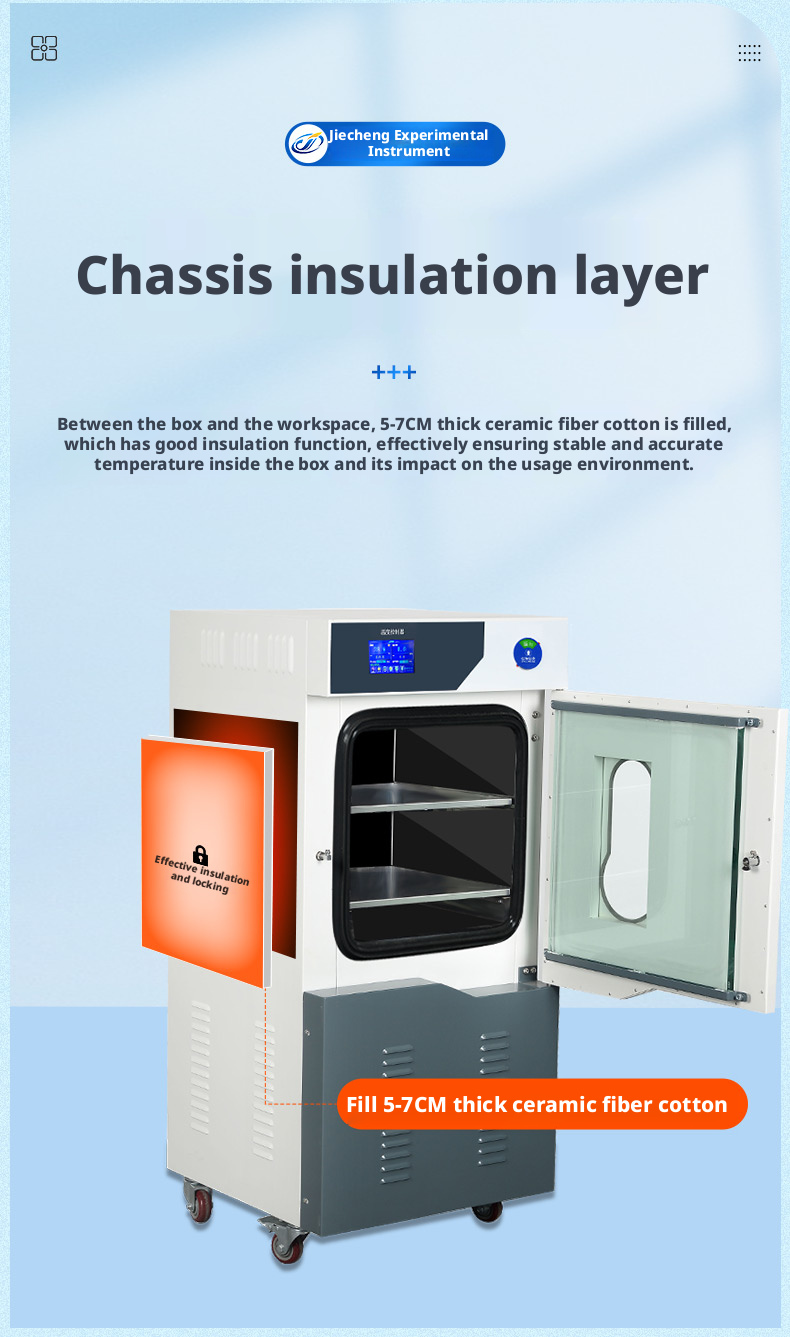

Insulation layer:Fill between the box and the studio5-7CM thick ceramic fiber cottonIt has good insulation function, effectively ensuring stable and accurate temperature inside the box and its impact on the usage environment.

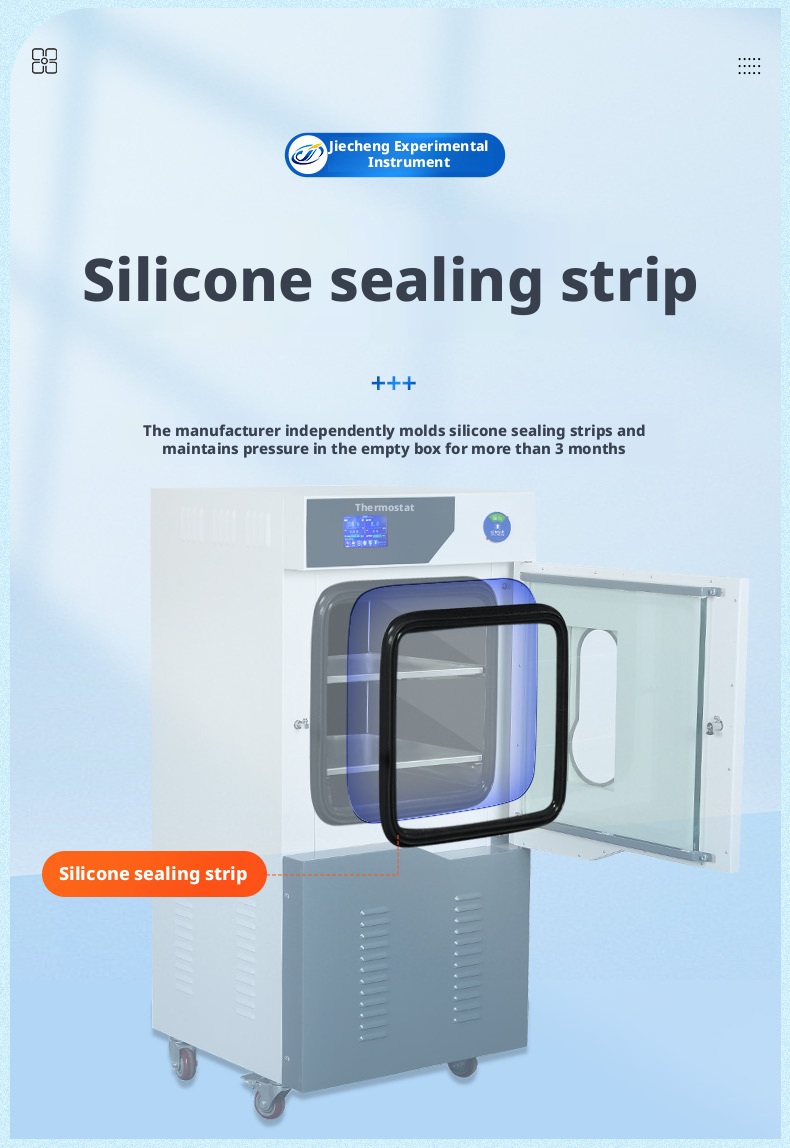

sealing strip：Our company independently molds silicone sealing strips,Empty container pressure maintained for more than 3 months.

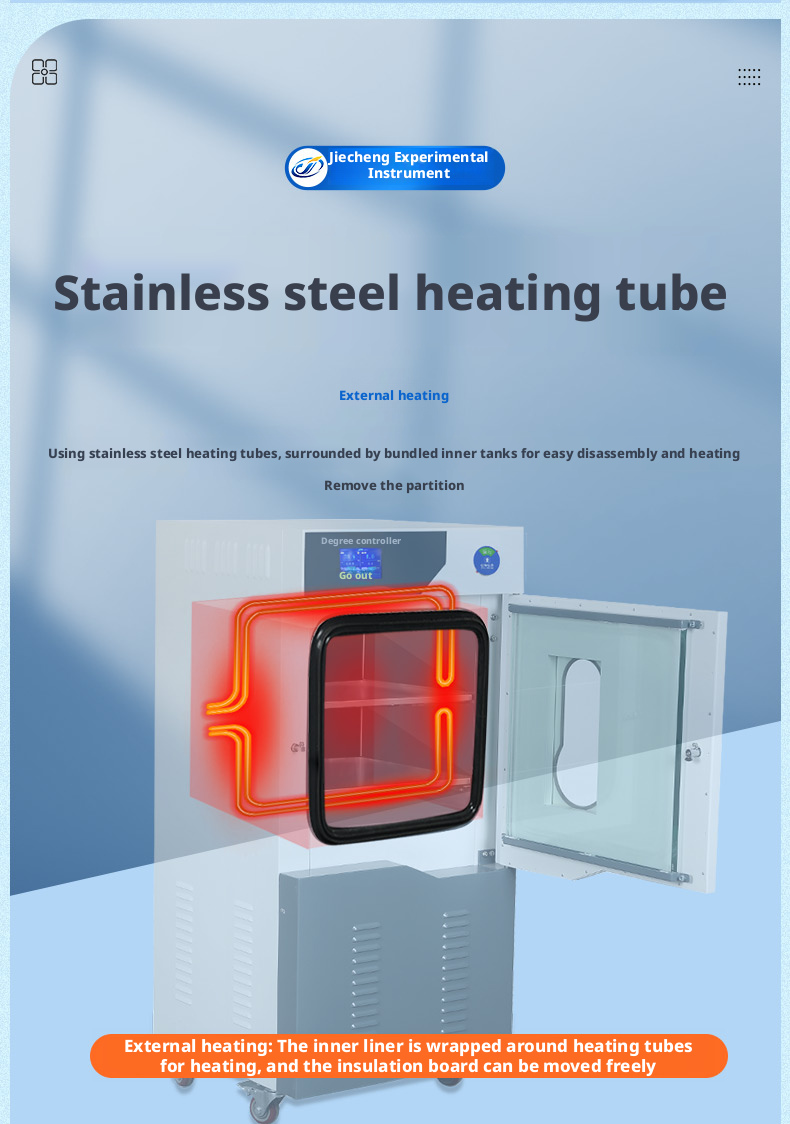

heatTube:Using stainless steel heating tubes for fast heating and stable uniformity.

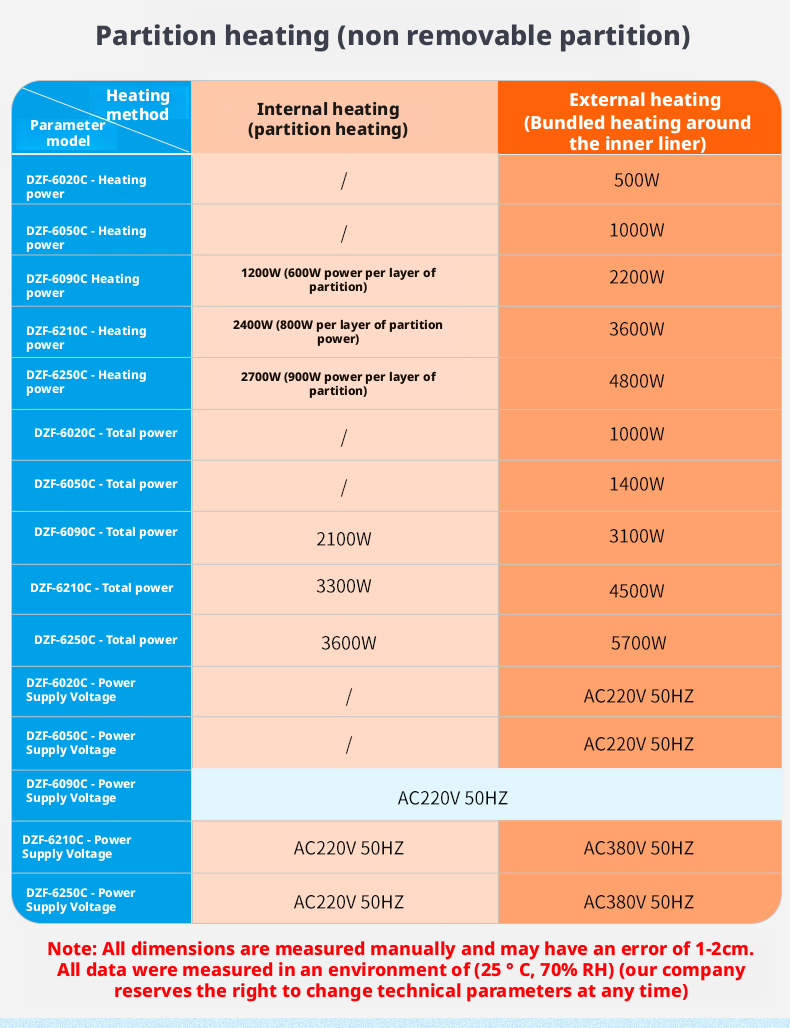

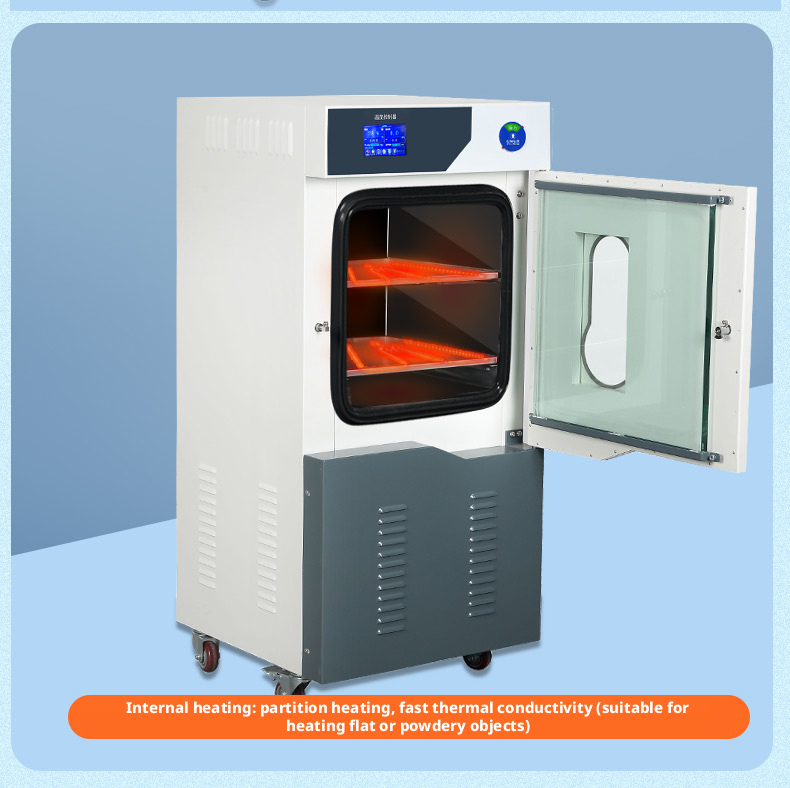

Heating methods can be selected:Internal heating (partition heating)Equipped with temperature multi-point correction function, commonly used temperature points can be individually corrected/External heating (bundled heating around the inner container).

enterair valve：The side adopts a new type of ball valve control, which is easy to operate and can add an inert gas inlet valve.

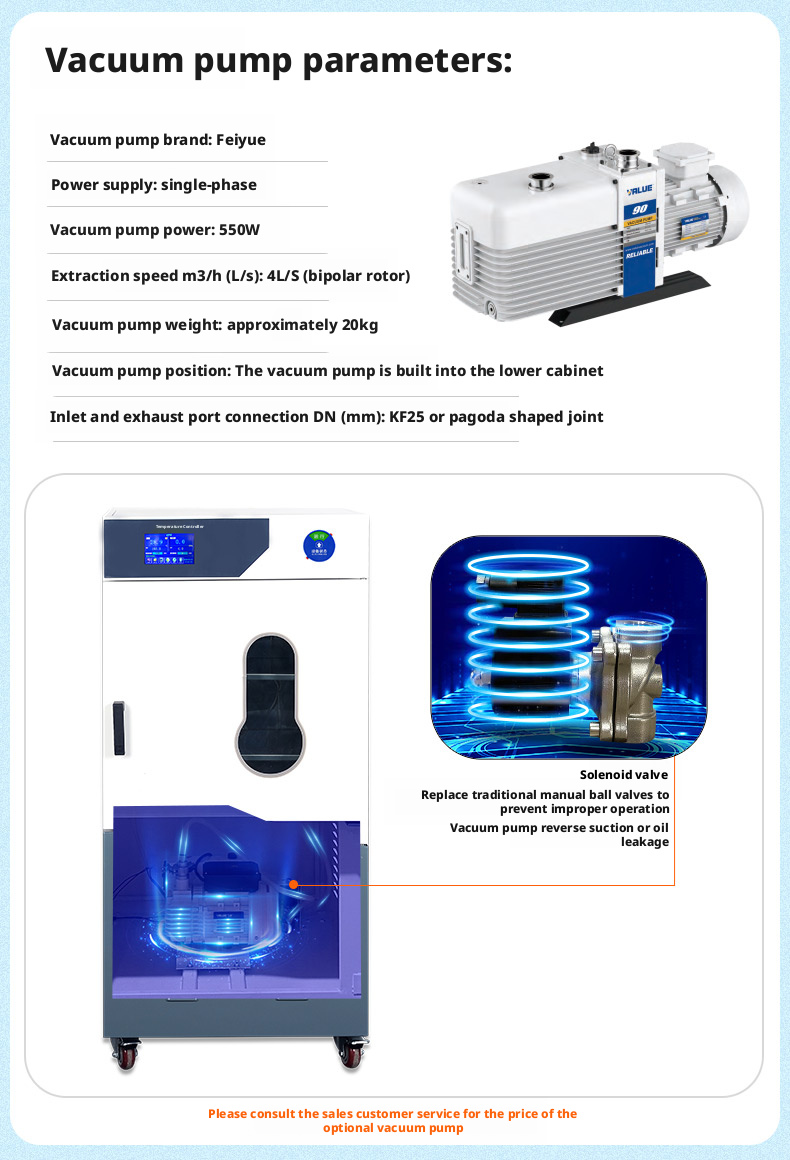

Solenoid valve:Replace traditional manual ball valves to prevent improper operation, vacuum pump suction or oil leakage.

Lower body cabinet:The standard configuration uses Zhejiang Feiyue vacuum pump. (Other brands of vacuum pumps can also be specified)

Introduction to Control System：

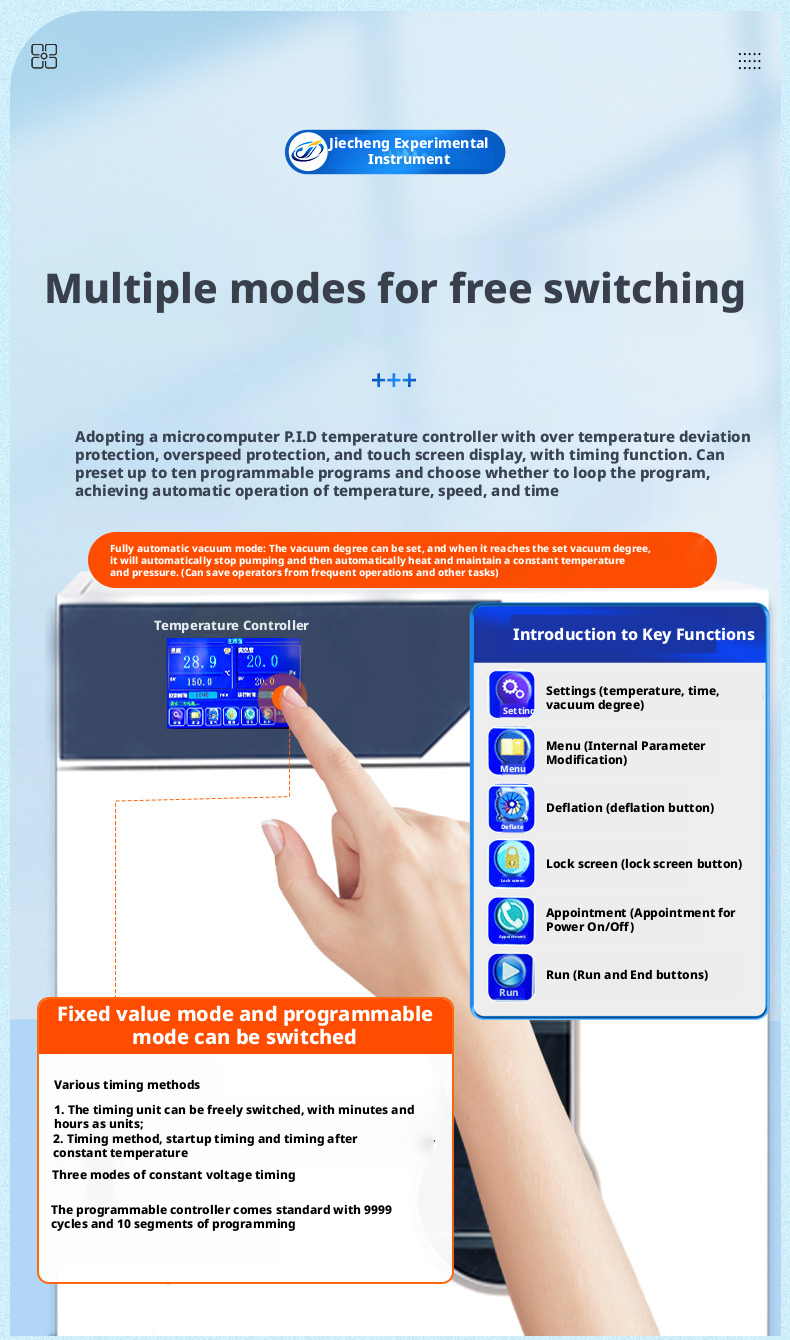

★ Personalized program design：Fixed value mode and programmable mode can be switched.Programmable programs with up to ten pre-set segmentsAnd you can choose whether to loop the program or notTo achieve temperature and time controlautomaticrun

★ Adopting over temperature deviation protection and over temperatureWenProtectiontouch screenMicrocomputer P.I.D temperature controller with timing function displayed.

★There are various timing methods: 1. The timing unit can be freely switched, with minutes and hours as units;2.Timing method, startup timing and timing after constant temperatureAnd constant voltage timer threeType of pattern.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★Set parameters with password lock to prevent personnel from tampering with set values and other information.

★ Over temperature alarm, over temperatureWenAlarm, scheduled shutdown, call recovery, parameter encryption, temperature maintenanceFunctions such as positive and speed correction.

★ Equipped with power-off recovery function：After the external power supply suddenly loses power and returns to power, the device can automatically resume operation according to the original set program

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc.

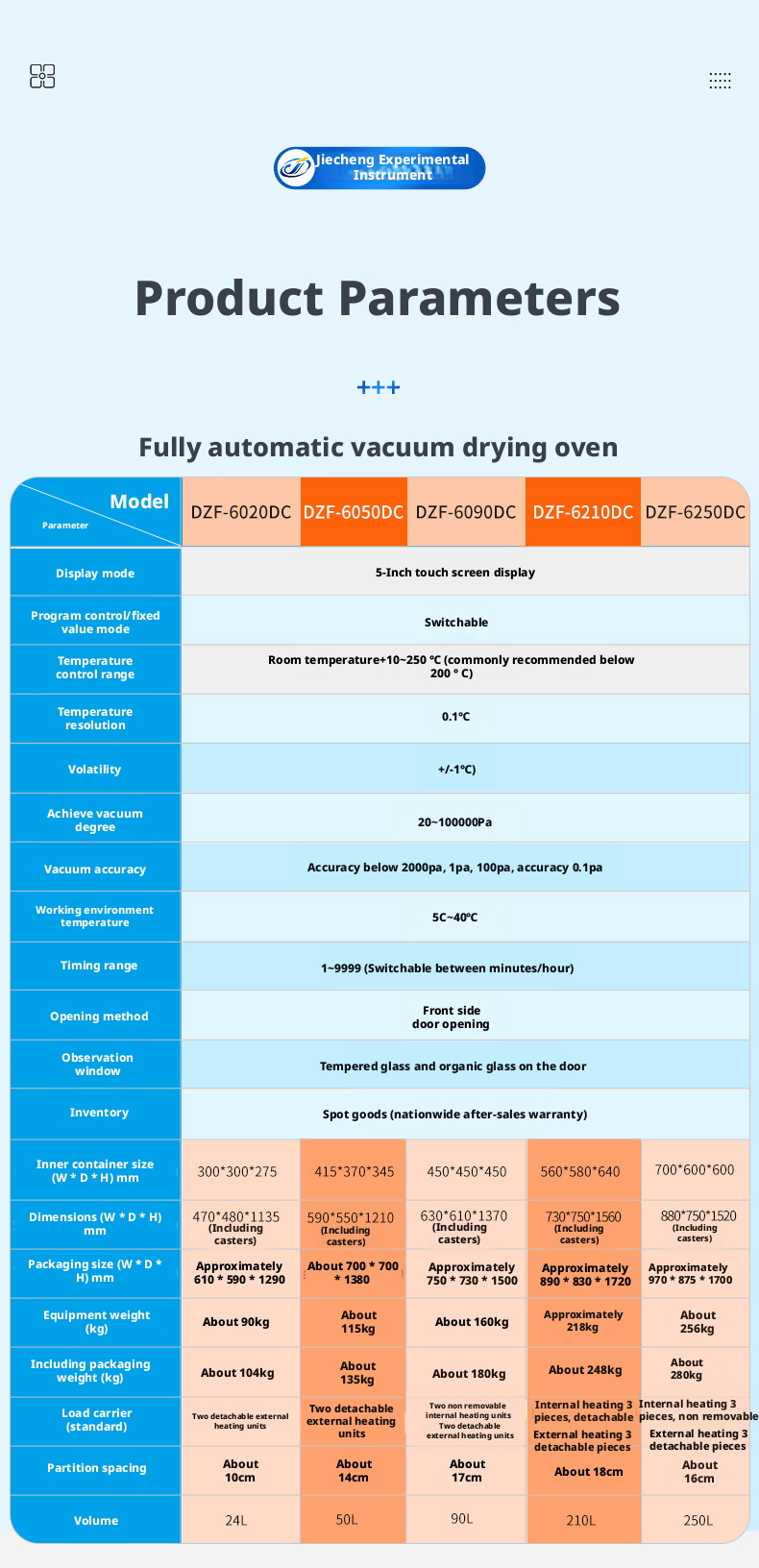

Parameter introduction:
