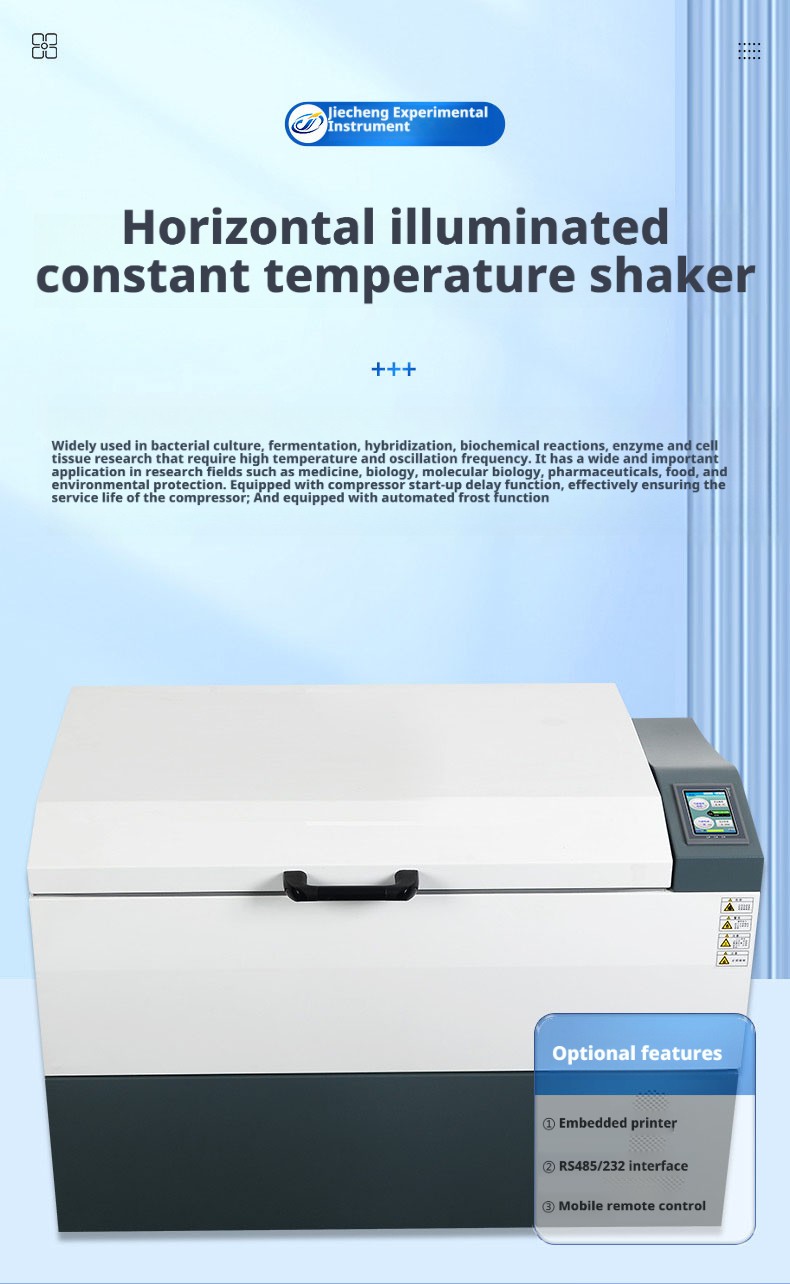

The horizontal illuminated constant temperature shaker (also known as illuminated constant temperature oscillator) is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research that require high temperature and oscillation frequency. It has a wide and important application in research fields such as medicine, biology, molecular biology, pharmaceuticals, food, and environmental protection.

Product Introduction:

horizontalilluminationConstant temperature shaker (also known as constant temperature oscillator) is widely used in bacterial culture, fermentation, hybridization, biochemical reactions, enzyme and cell tissue research that require high temperature and oscillation frequency. It has a wide and important application in research fields such as medicine, biology, molecular biology, pharmaceuticals, food, and environmental protection.

structural characteristics：

★Performance:Integrating a constant temperature incubator and oscillator, it saves space, occupies small space, has multiple functions, and requires less investment.

★shellSilent design of the whole machine,The outer box is made of cold-rolled steel plateElectrostatic spraying,Strong corrosion resistance.

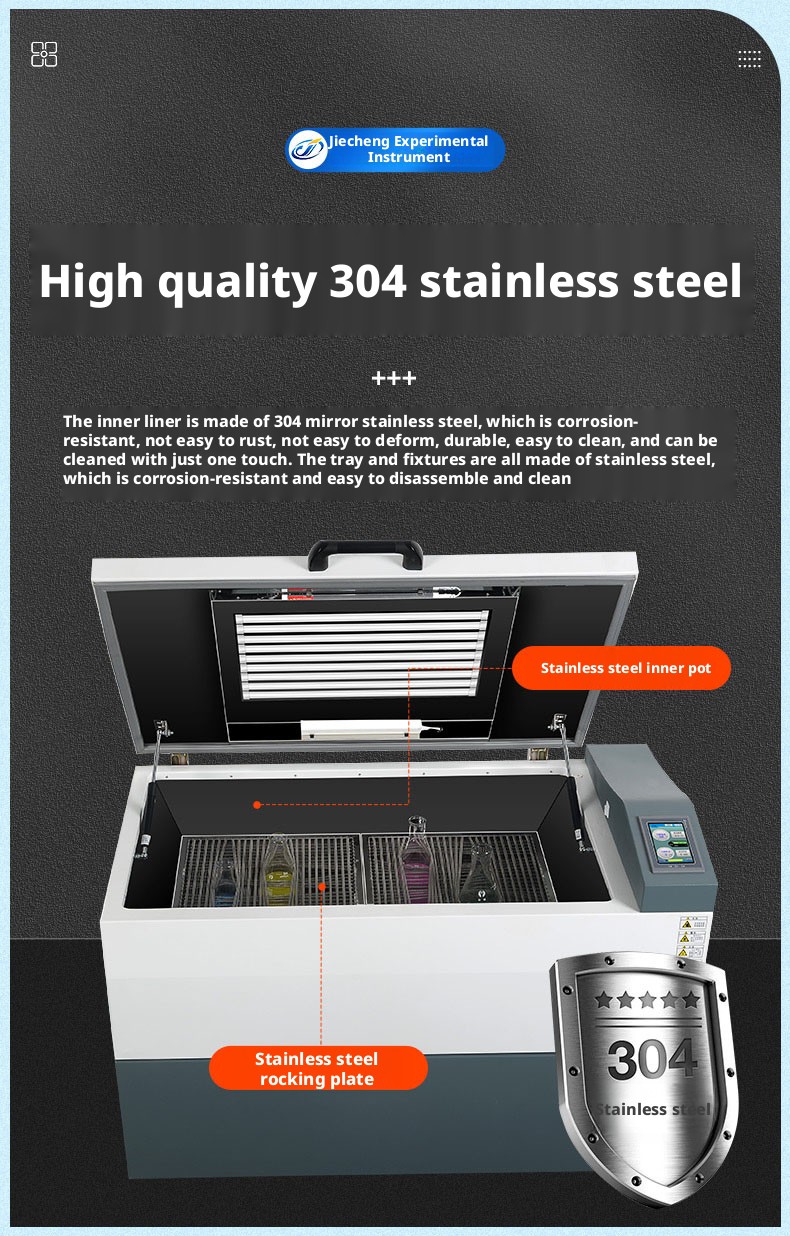

★Inner container:304mirror surfacestainless steelinsideGallbladder.

★Shake board:TrayThe fixtures are all made of stainless steel,corrosion-resistantAt the same time, it is easy to disassemble and clean.

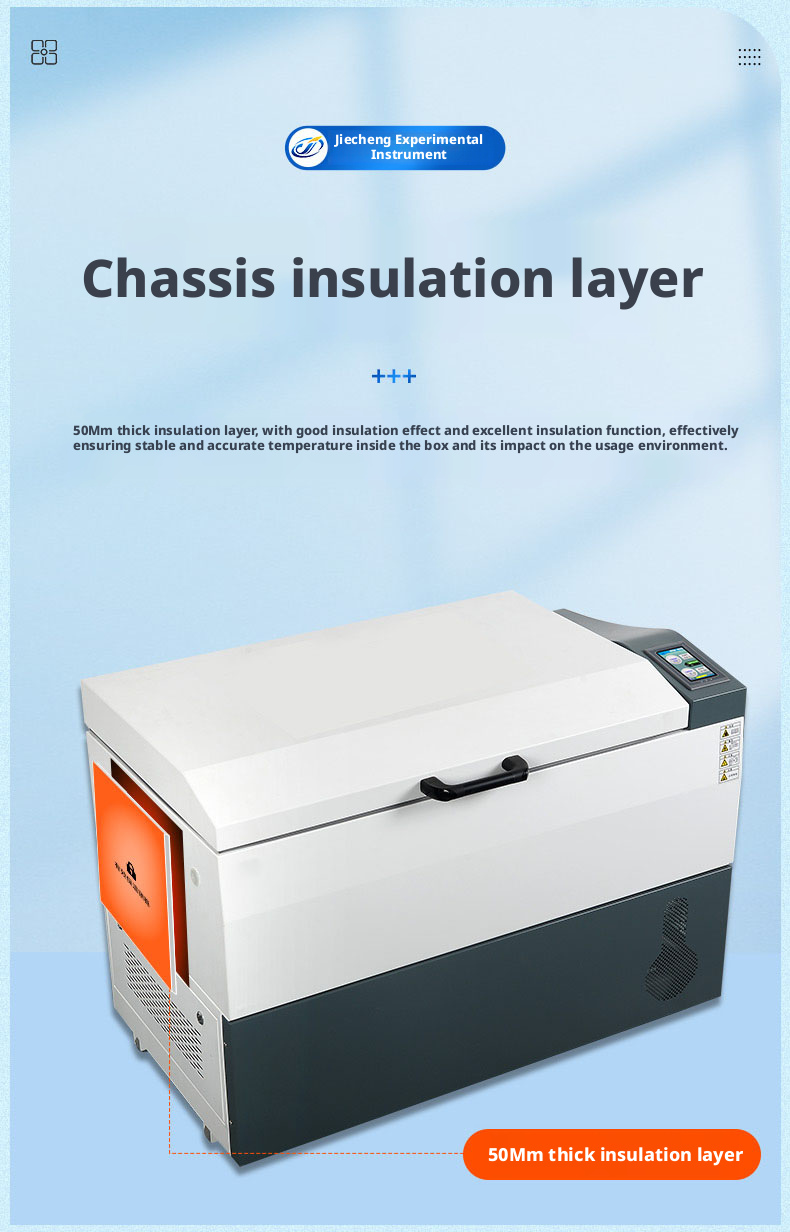

★insulation layer:50mm thick insulation layer, good insulation effect,

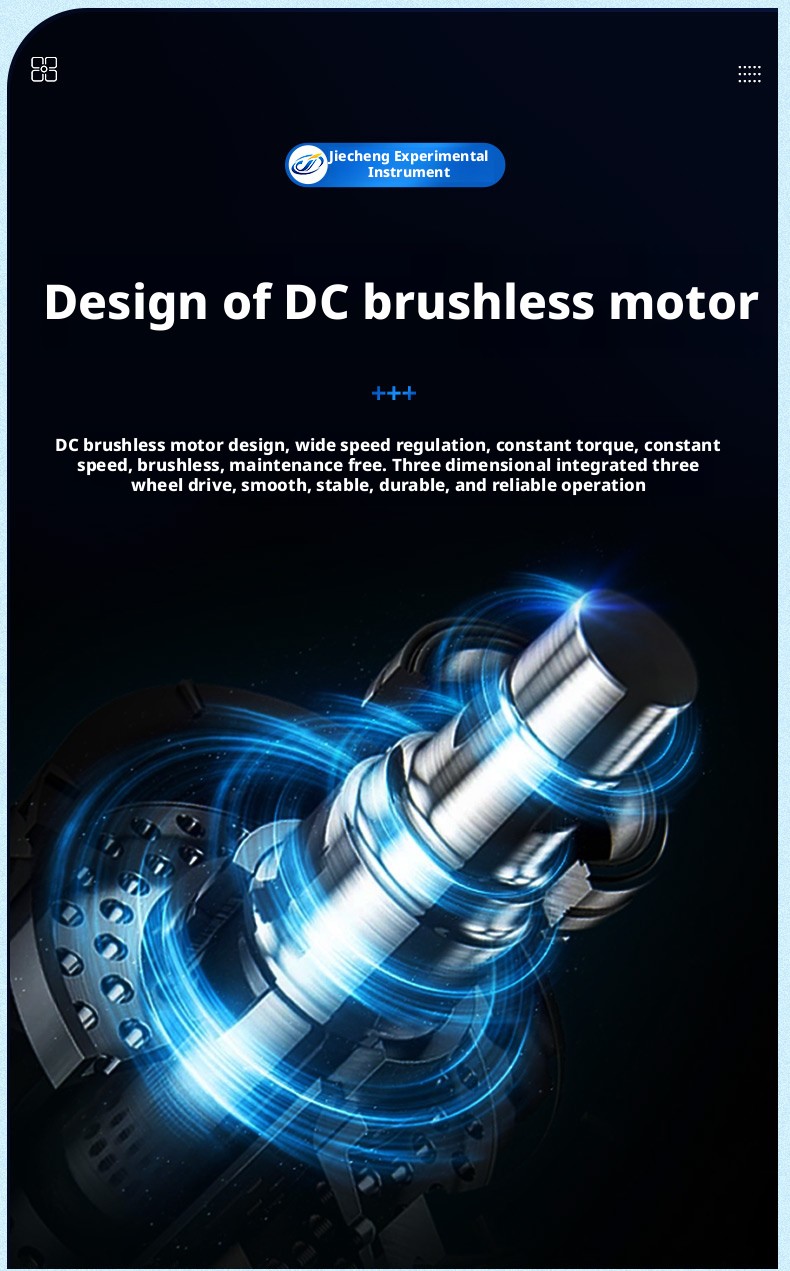

★motorbrushless DCMotor design, wide speed regulation, constant torque, constant speed, carbon brush free, maintenance free.

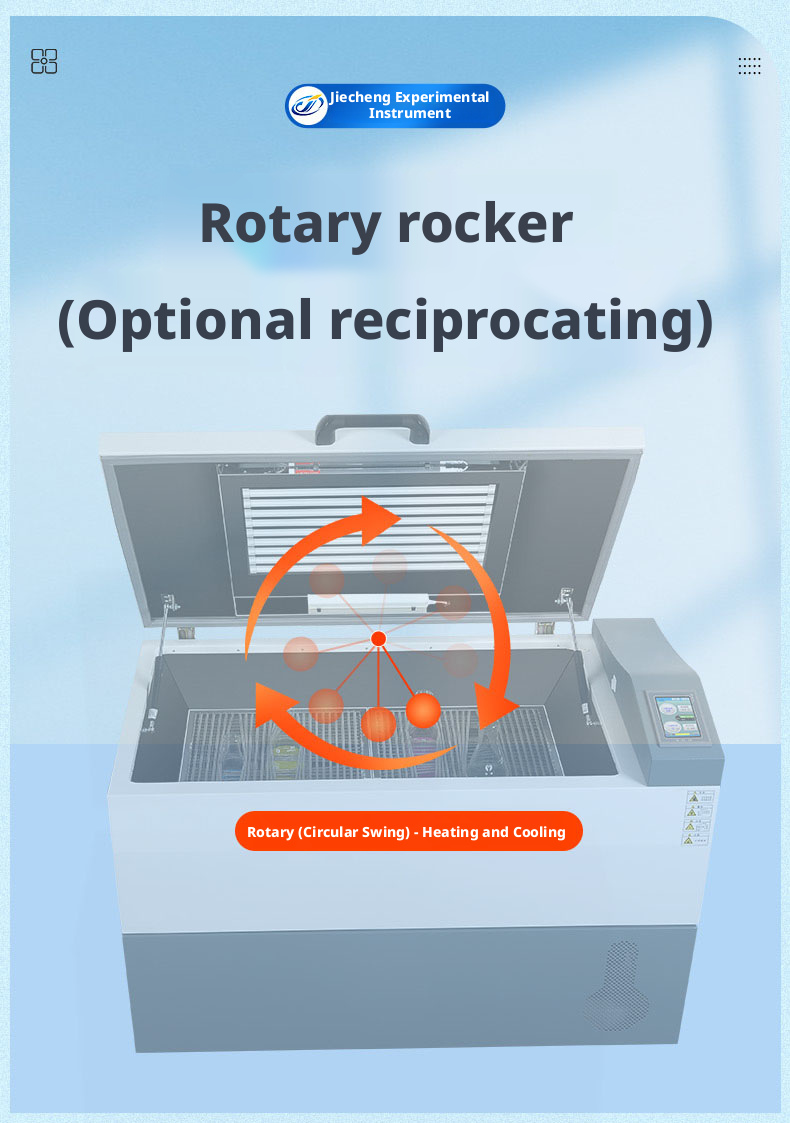

★Axis:Three dimensional integrated eccentric shaft drive, smooth, stable, durable, and reliable operation.

★compressor:Equipped with compressor start-up delay function, effectively ensuring the service life of the compressor; And it has automated frost function.

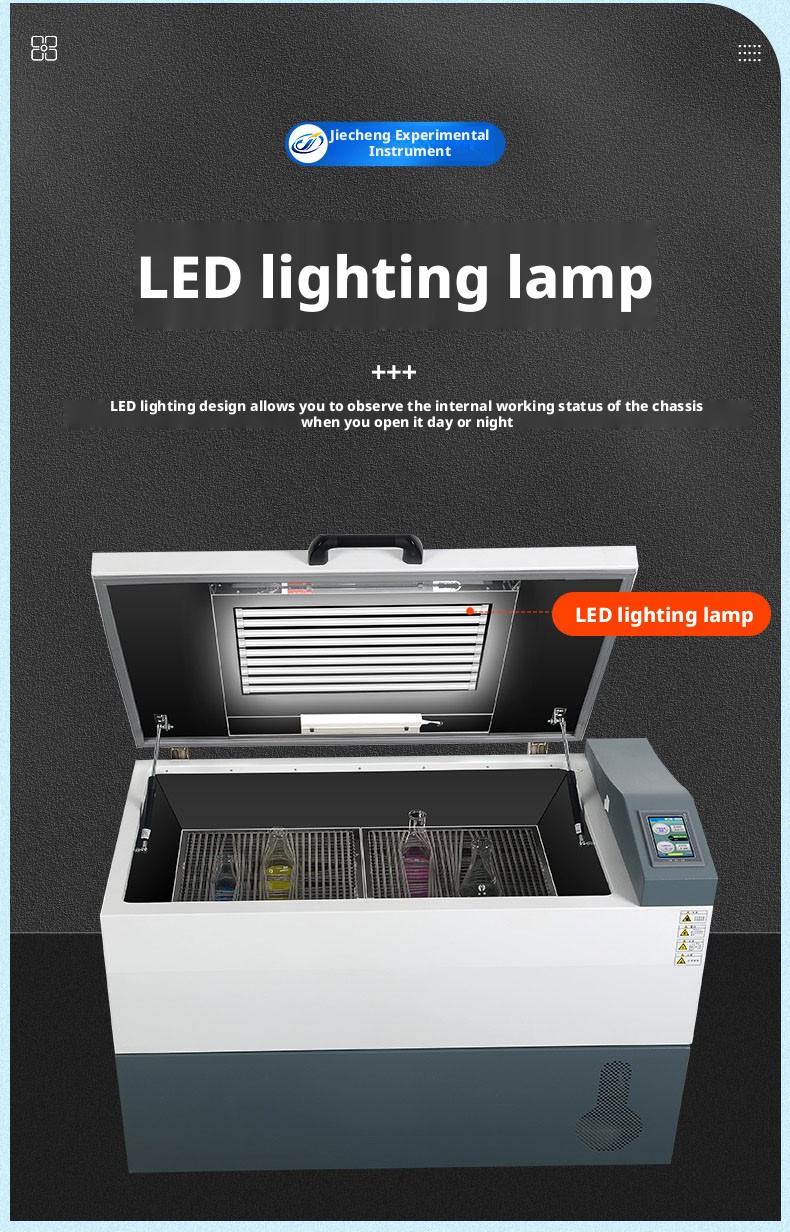

★Lamp tube:Standard plant cold light sourceLED light, 6-level adjustable; Light intensity 12000LX (optional for other light sources)

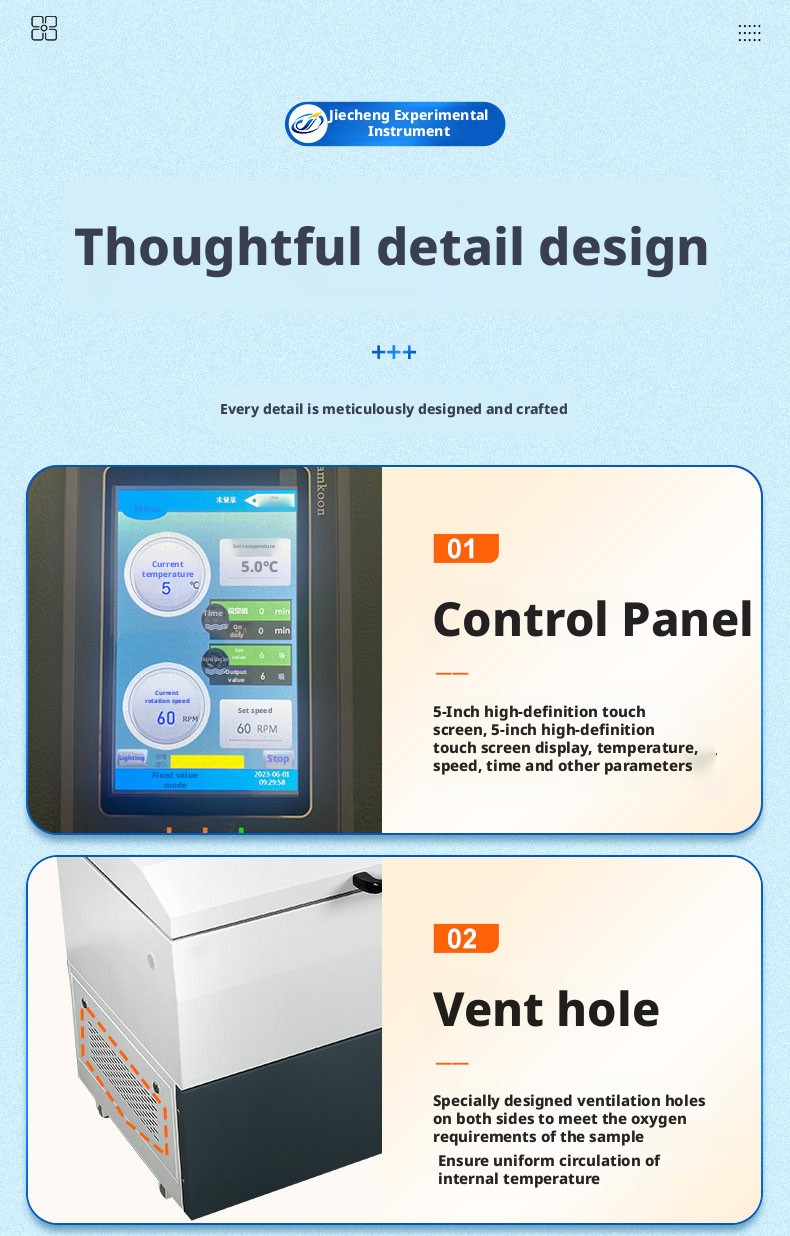

★Breathable hole:Specially designed ventilation holes on both sides to meet the oxygen requirements of the sample Ensure uniform circulation of internal temperature

Introduction to Control System：

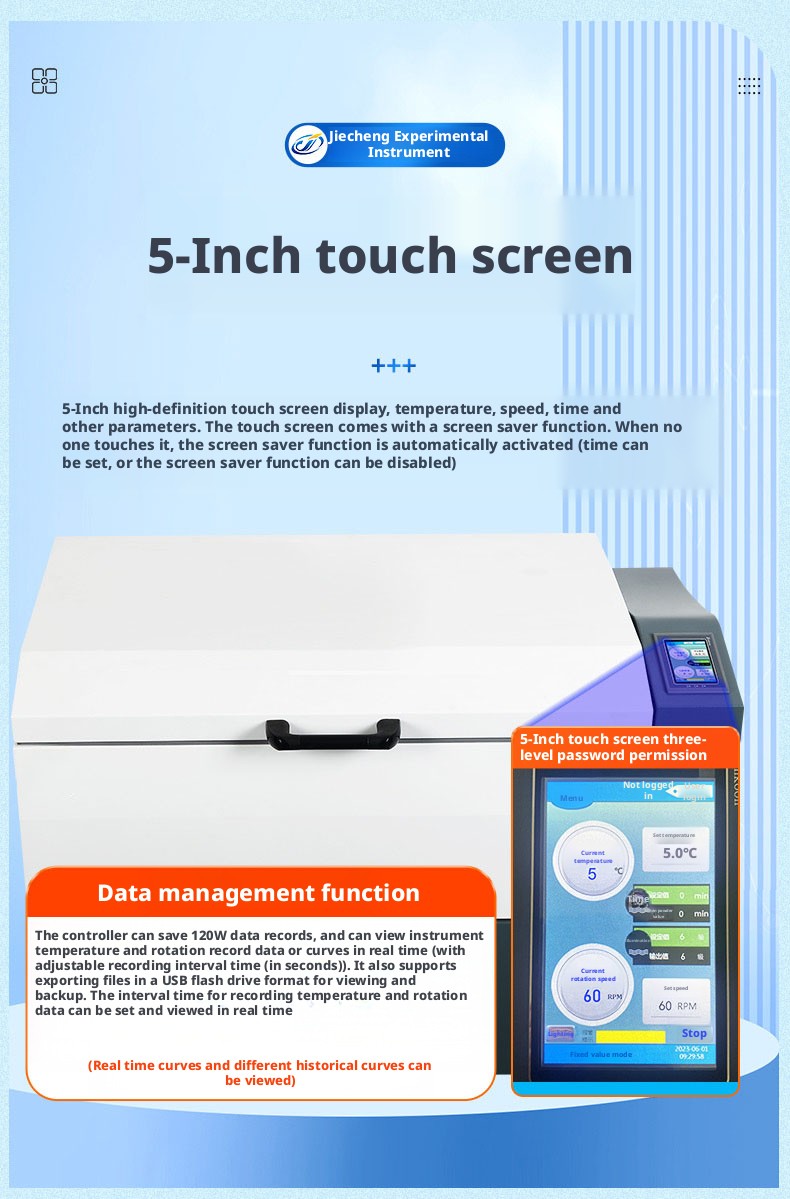

★fiveInch HDtouch screenDisplay parameters such as temperature, speed, time, etc，microcomputerP.I.Dtemperature controlIt has functions such as over temperature deviation protection, over speed protection, call recovery, parameter encryption, temperature correction, and speed correction.

★The touch screen comes with a built-in screensaver function, which automatically activates the screensaver function when no one touches it (the time can be set, or the screensaver function can be disabled)

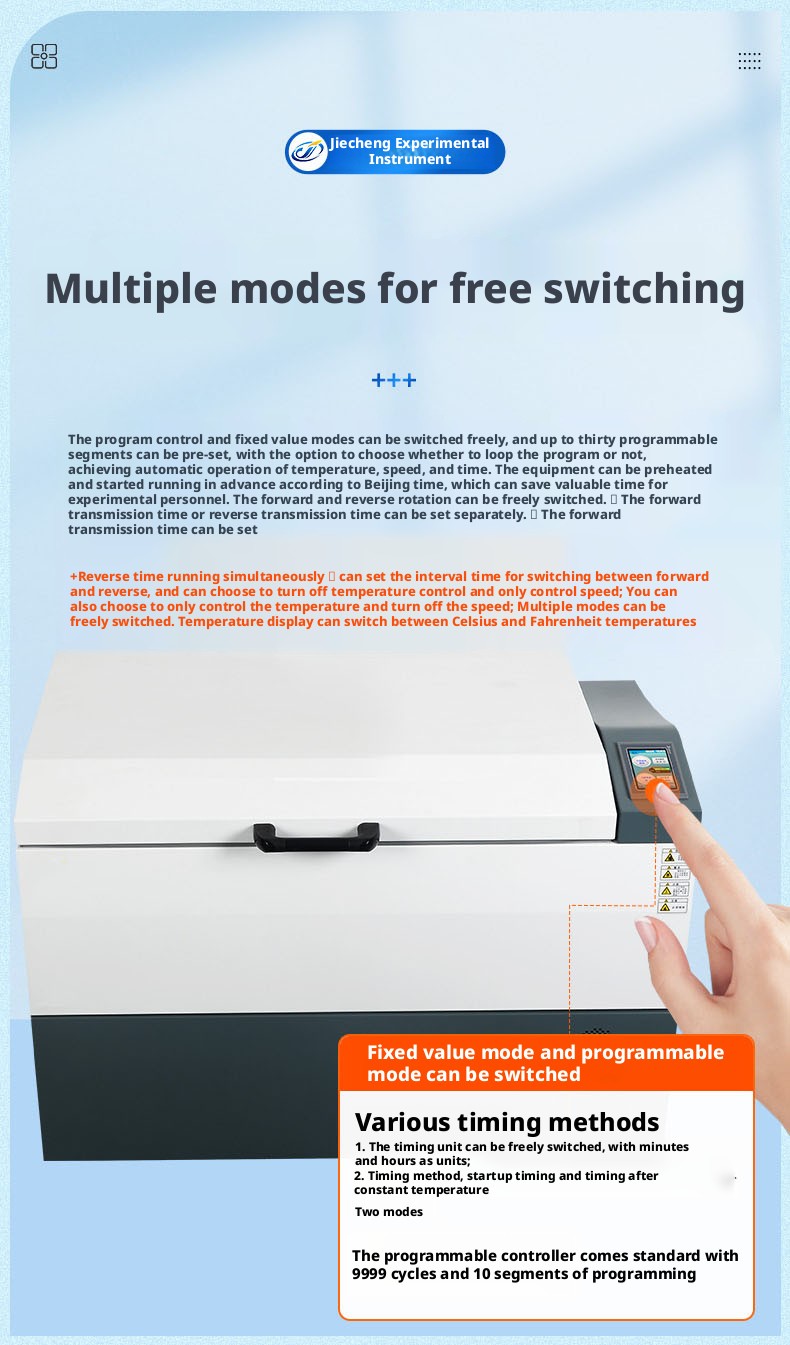

★ Personalized program design,The programmable and fixed value modes can be switched freely,Can be preset up tothirtyProgrammable segmentAnd you can choose whether to loop the program or notTo achieve control over temperature, speed, and timeautomaticrun

★Reservation power on/off function: The equipment can be preheated and started running in advance according to Beijing timeThis can save valuable time for experimenters.

★There are various timing methods:1. Timing unit，Can switch freely, minutes/Hour as a unit;2. Timing modes: start-up timing and timing after constant temperature

★Three level permission management function, divided into three levels of management login (operator, debugger, administrator) to prevent arbitrary setting of operations

★Data management function: Controller can save120W data records, allowing real-time viewing of instrument temperature and rotation record data or curves (with adjustable recording interval time (in seconds)), and supporting the export of file formats that can be changed using a USB flash drive for viewing and backup. The interval time for recording temperature and rotation data can be set and viewed in real-time

★Can freely set forward and reverse switching

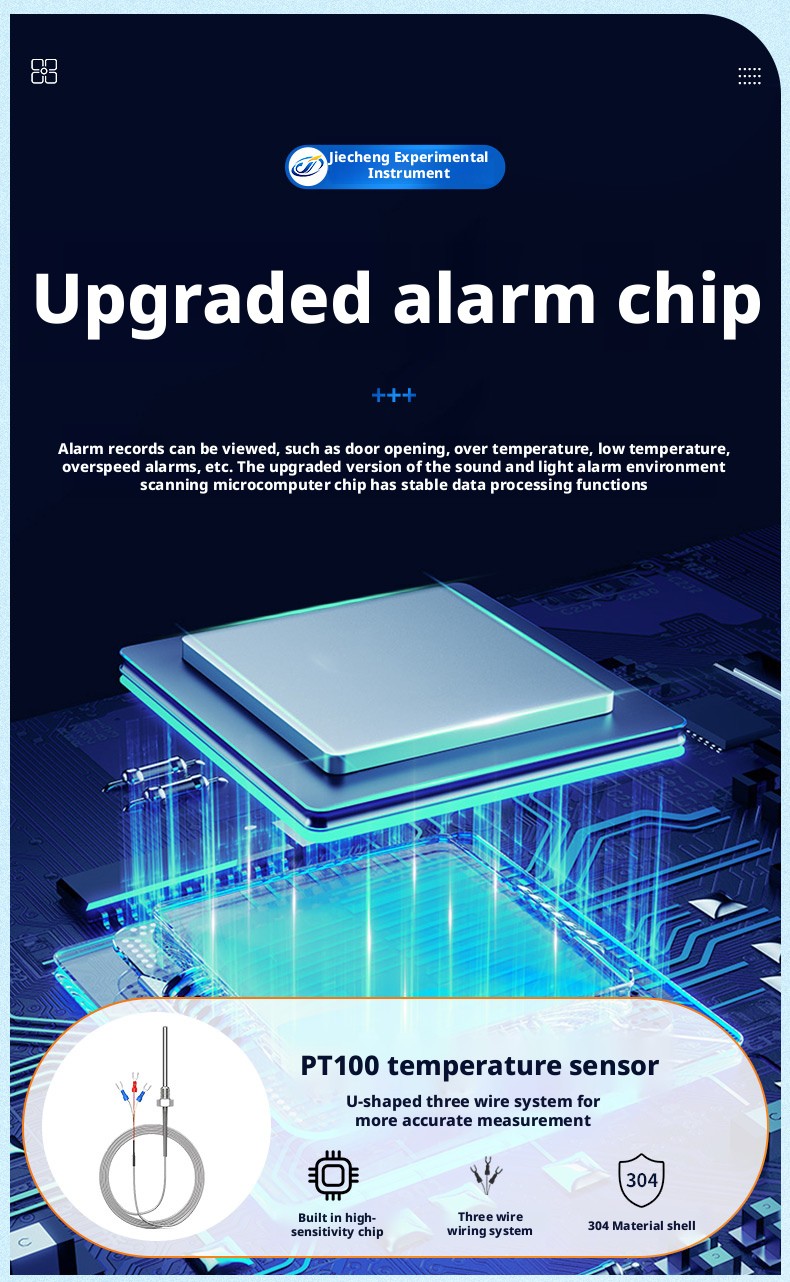

★Alarm records can be viewed, such as door opening, over temperature, low temperature, overspeed alarms, etc,Upgraded version of sound and light alarm environment scanning microcomputer chip with stable data processing function

★ Equipped with power-off recovery function, the device can automatically resume operation according to the original set program after the external power supply suddenly loses power and then resumes power

★Equipped with lighting and UV sterilization lamp functions

★You can choose to turn off temperature control and only control the speed; You can also choose to only control the temperature and turn off the speed; Multiple modes for free switching

★Temperature display can be switched to Celsius degrees Fahrenheit temperature

★Fault prompt: When the shaking table malfunctions, a fault message will appear on the screen, and the operation fault is clear at a glance.

Unique advantages of the product：

1. Appearance upgrade:At the same time as improving the overall performance of the device, the appearance upgrade is exquisite, atmospheric, and has obtained a design patent certificate

2. Programmable controller:(Standard configuration)9999 cycles, 30 programming segments)

3. Touch screen:(Standard configuration)5-inch touch screen)

4. Temperature switching:(Celsius degree)/Fahrenheit temperature switching)

5. Screen saver:(When no one touches, the screensaver function is automatically activated, and the screensaver time can be freely set)

6. Appointment function:(You can schedule a power on/off time)

7. Gate control function:After the door is opened, the "Heating, Rotation, UV Sterilization Lamp" will automatically turn off to prevent UV damage to the human body and provide customers with a better safety experience. If door control is not required, the door control function can also be turned off. The door opening temperature control function can also be set

8. Standard USB interface:(Free upgrade)USB interface, can export historical data with a USB flash drive)

9. Password management:(Three layer management login (operator, debugger, administrator) to prevent arbitrary setting of operations)

10. Curve:(Real time curves and different historical curves can be viewed)

11. Data management:（The controller can save 120W data records and view instrument temperature and speed records in real time (can be set to record temperature and speed every few seconds). It also supports exporting files in a USB flash drive format for viewing and backup. The interval time for recording temperature and speed data can be set and viewed in real time）

12. Forward and reverse:(1: The forward or reverse time can be set separately. 2: The forward and reverse time can be set to run simultaneously3: Can set the interval time for forward and reverse switching)

13. Alarm records can be viewed:(Door opening, over temperature, low temperature alarm, etc.),Upgraded version of sound and light alarm environment scanning microcomputer chip,asHaving stable data processing capabilities）

14. Instruction manual:(The screen comes with instructions for using the controller to prevent the loss of the paper version. It cannot be operated, and video teaching can also be provided.)

15. After sales:(After sales guaranteed, with after-sales service available throughout the country)

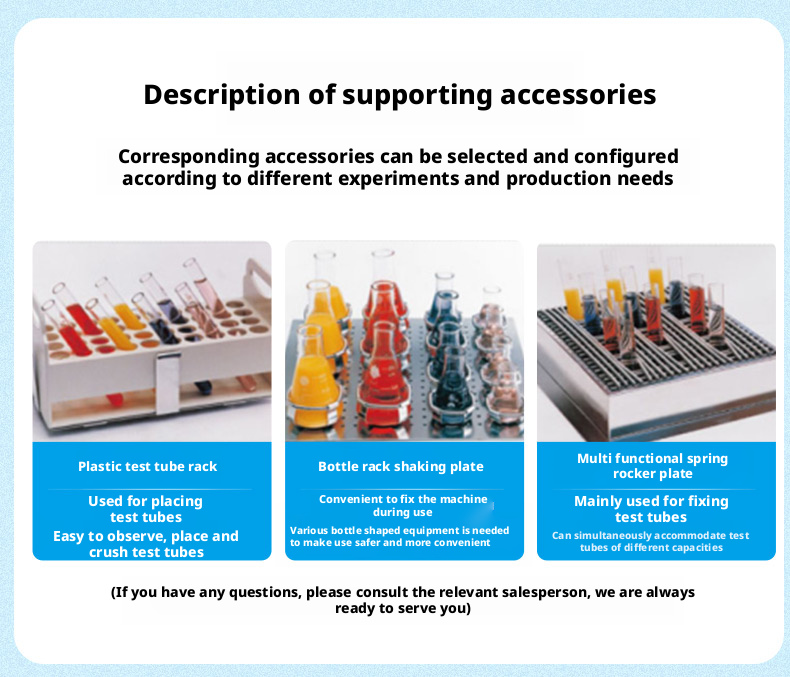

16. Shake board:(Detachable) Flexible and convenient, tray, fixture, detachable）

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc.

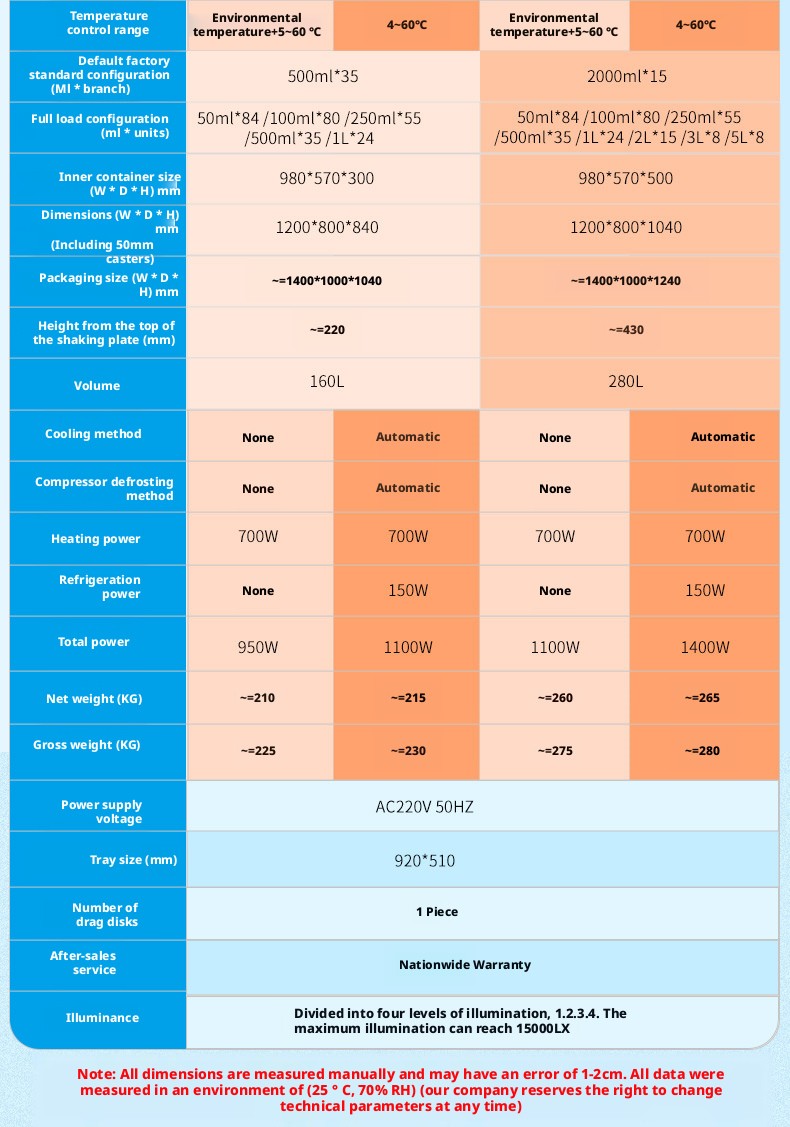

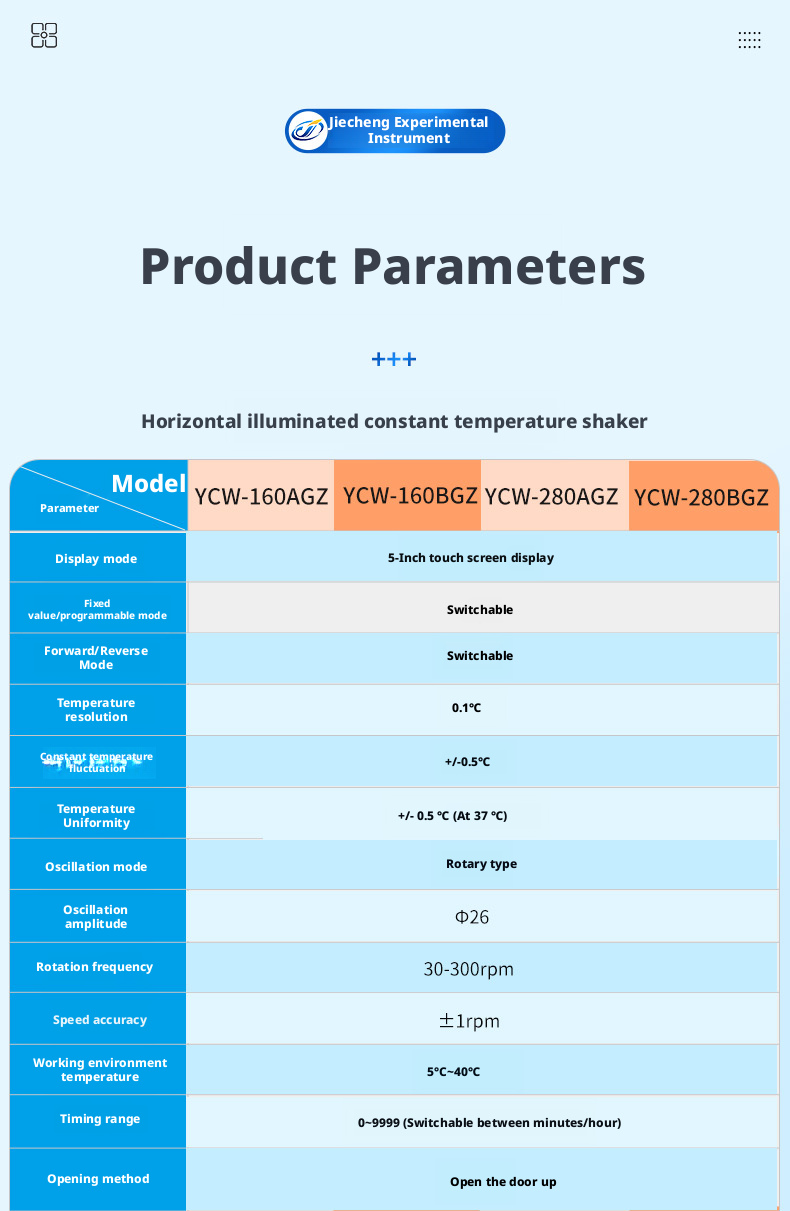

Parameter Introduction：
