Product Introduction:

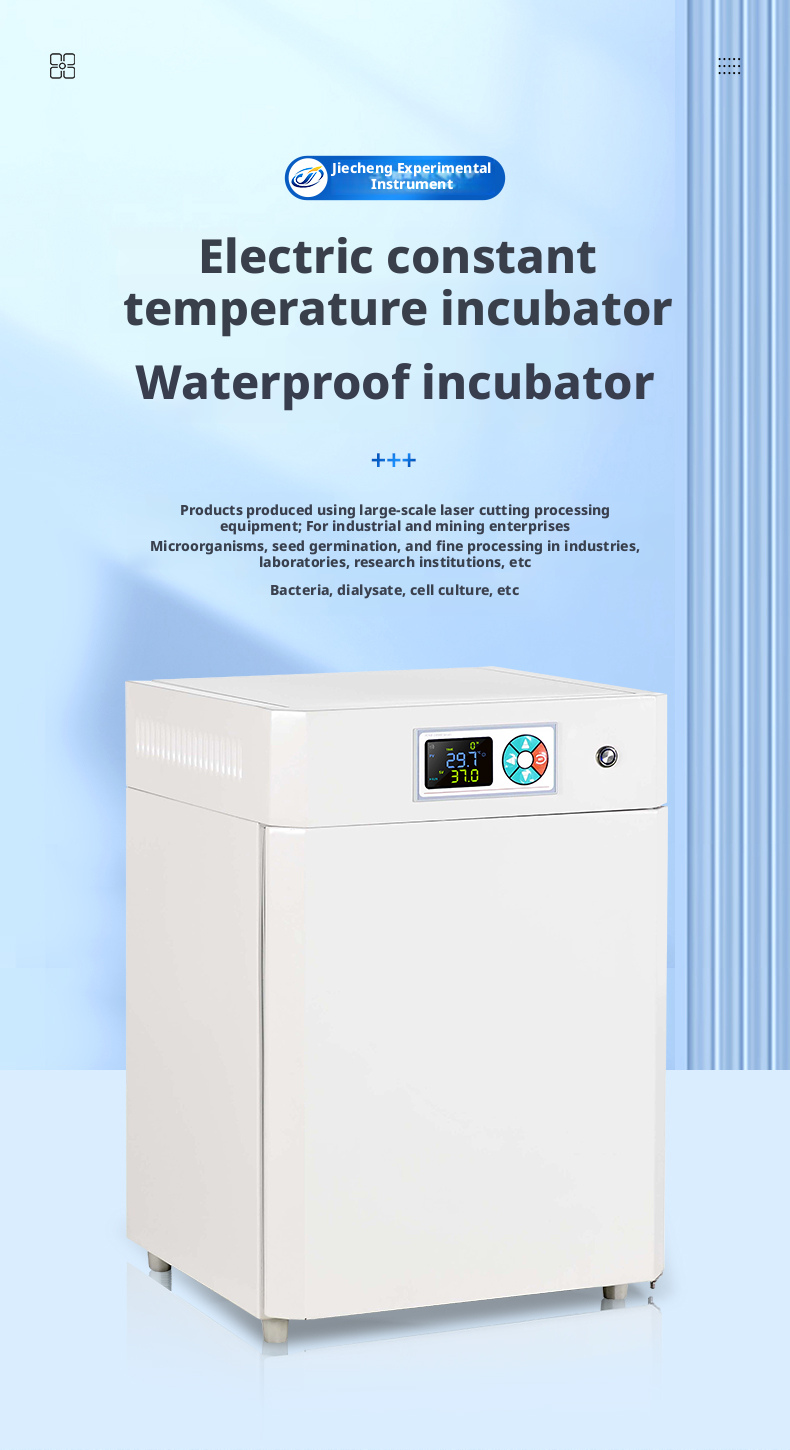

The waterproof constant temperature incubator is produced using large-scale laser cutting processing equipment; For use in industrial and mining enterprises, laboratories, scientific research institutions, etc. for microorganisms, seed germination, bacteria, dialysate, cell culture, etc.
Instrument selling points:

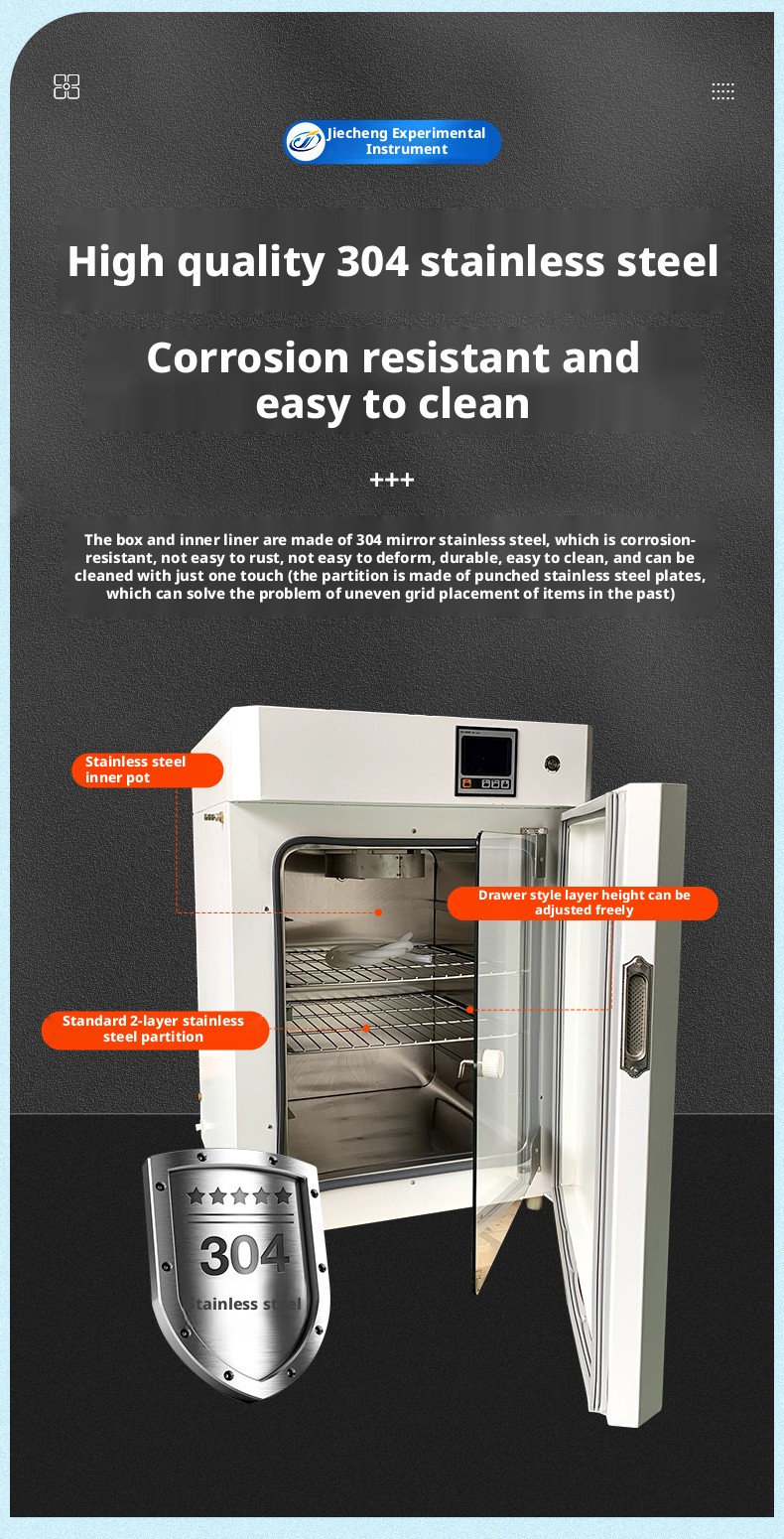

1. The inner liner is made of 304 stainless steel,
2. Intelligent controller with good temperature control effect;
3. One screen LCD display, temperature, time and other parameters
4. Manufacturing with integrity, products are durable, and parameters are presented without reservation.
5. After sales guarantee, after-sales service is available throughout the country (except for towns and villages)
6. Provide video tutorials to reduce users' time spent reading instruction manuals.
user-friendly design:
★ A streamlined luxury whole machine shape with aesthetic design concept, electrostatic spray box body, double-layer door structure
★ Made of mirror stainless steel argon arc welding, the box body is made of high-quality steel plate, with a beautiful and innovative shape. Mirror stainless steel lining, corrosion-resistant instrument.

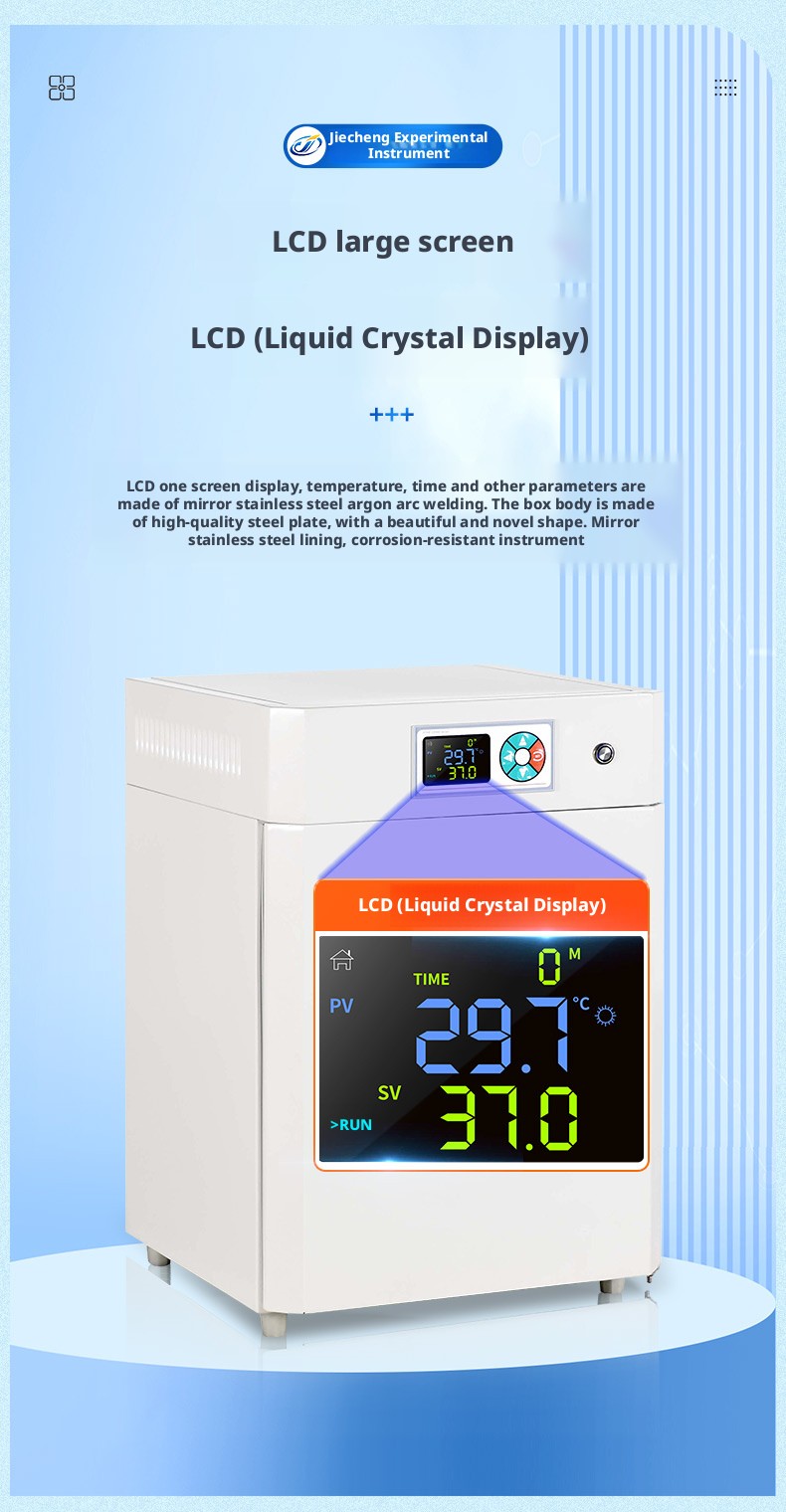

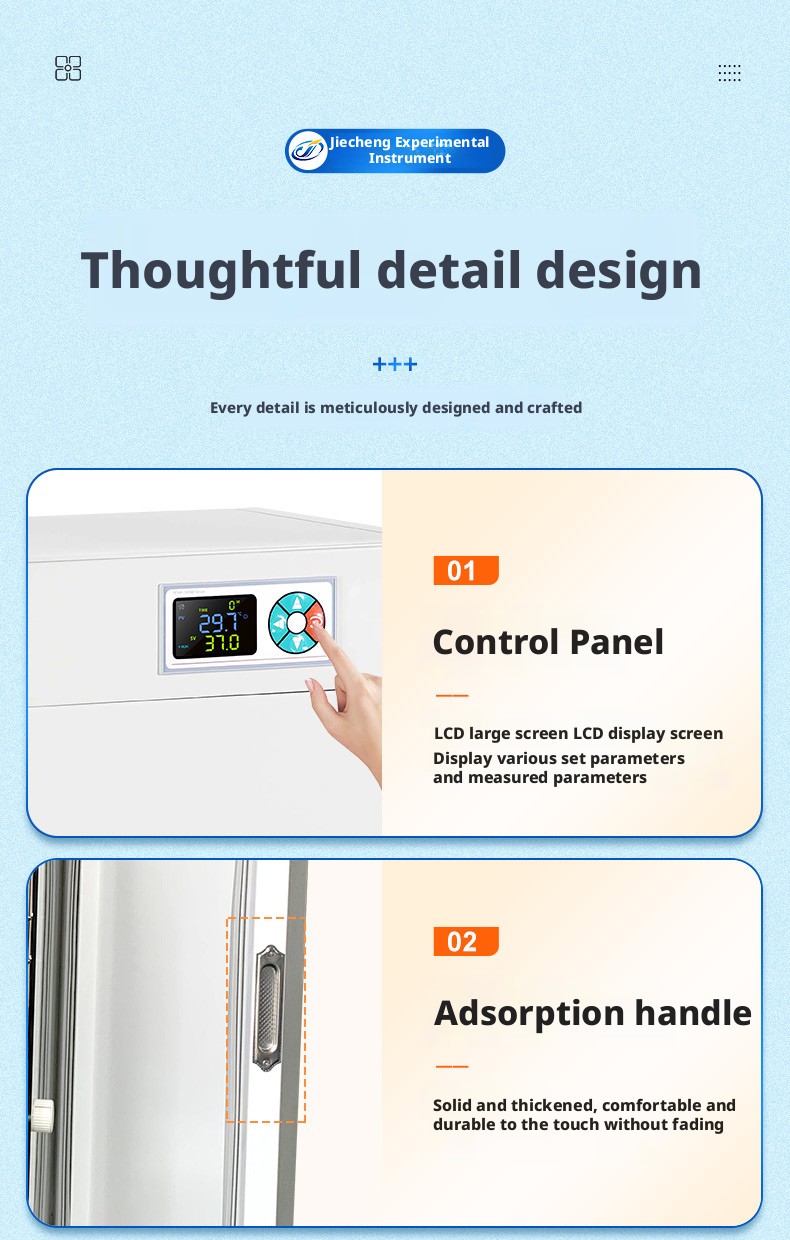

★ LCD large screen LCD display shows various set parameters and measured parameters
★ Stable constant temperature function to avoid sample evaporation and drying up
★ Automatic water level recognition system, which can achieve low water level sound and light alarm.

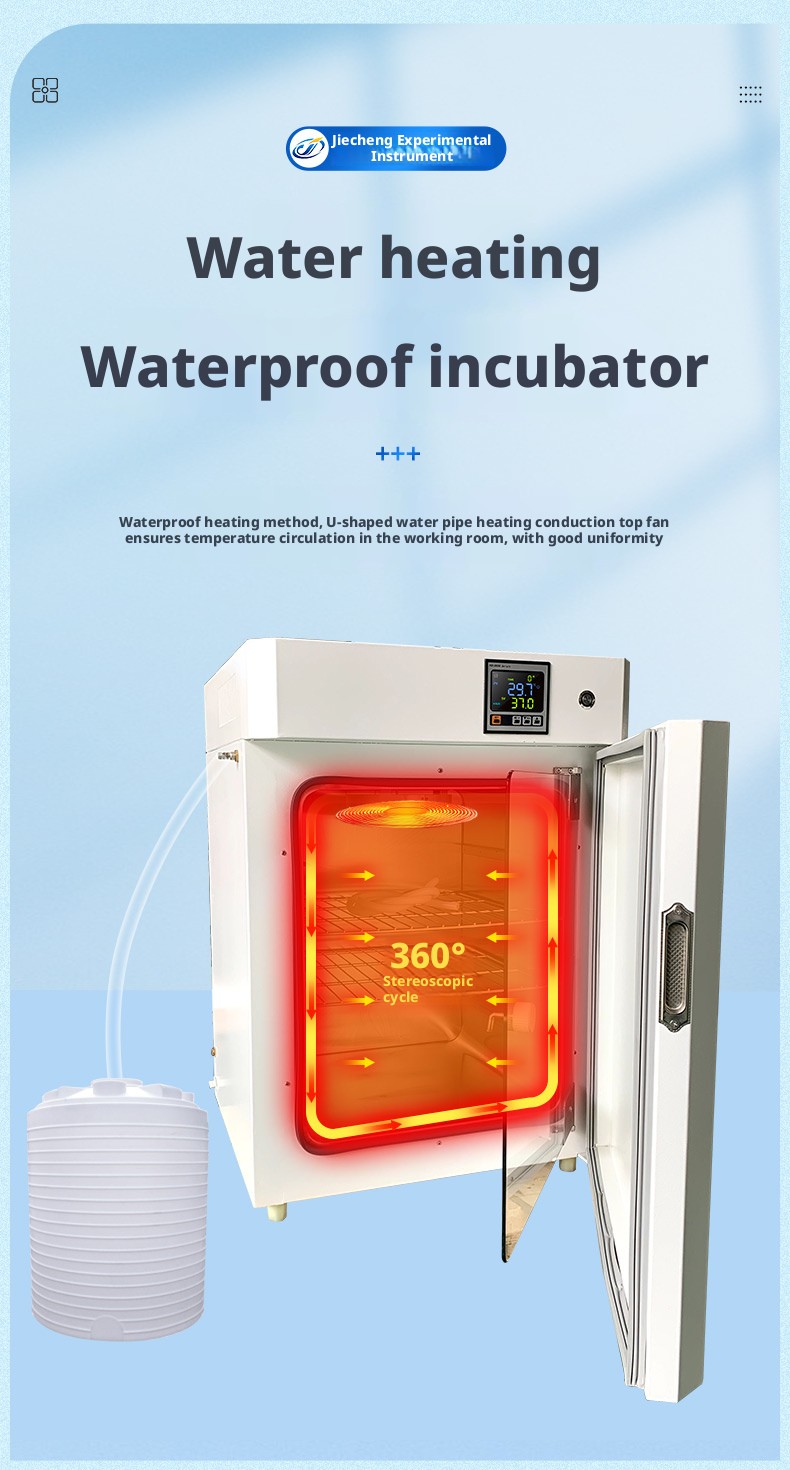

The box comes with an inlet and outlet, which can be connected to water pipes.
This product has the advantages of long-term insulation and uniform temperature during power outages

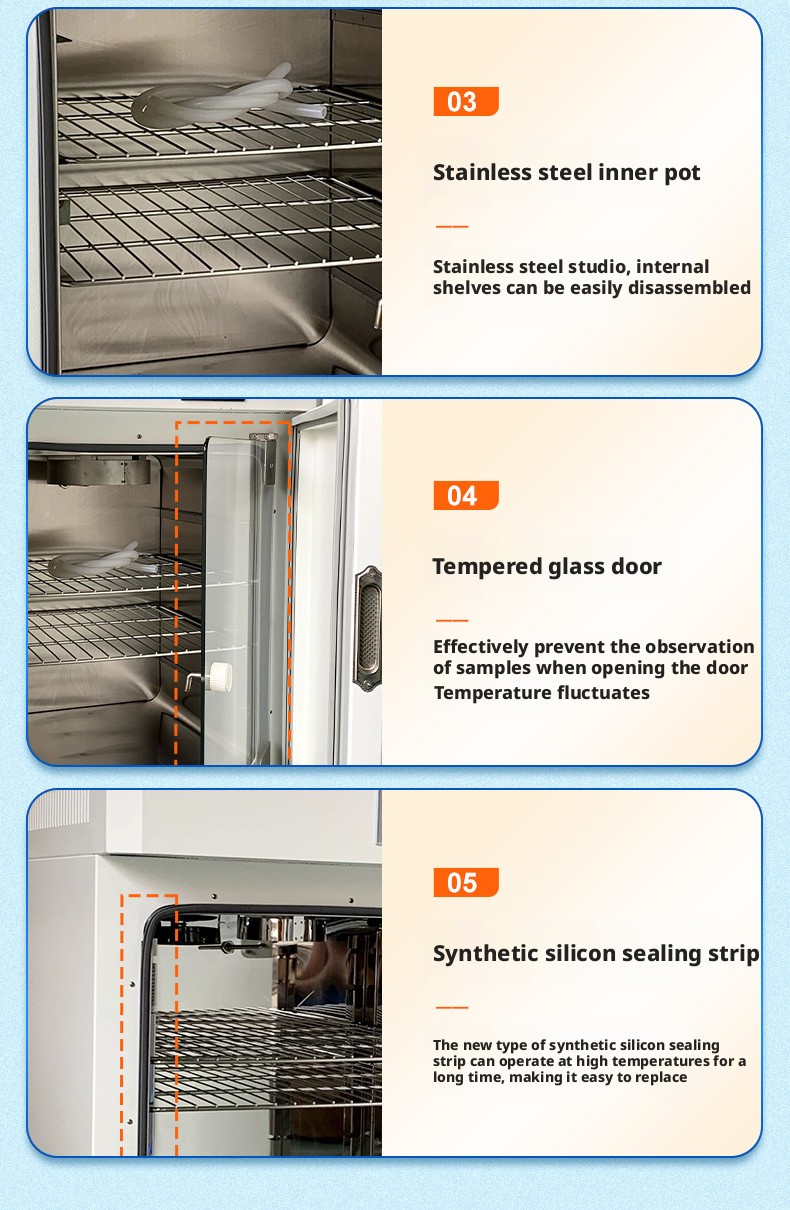

★ Adopting a new type of synthetic silicon sealing strip, it can operate at high temperatures for a long time, has a long service life, and is easy to replace.

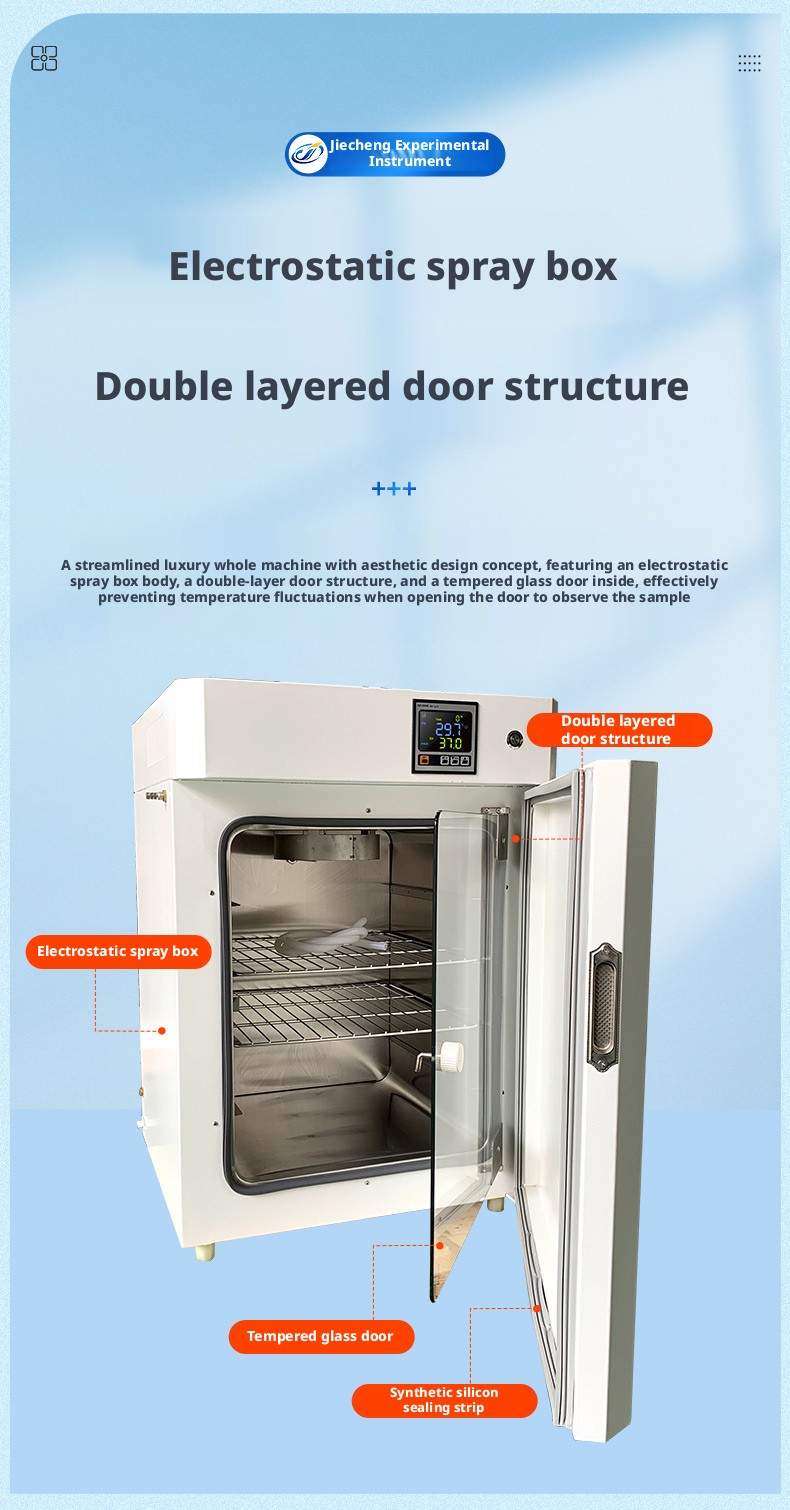

★ Adopting a double-layer door structure, with a tempered glass door inside, effectively preventing temperature fluctuations when opening the door to observe the sample.

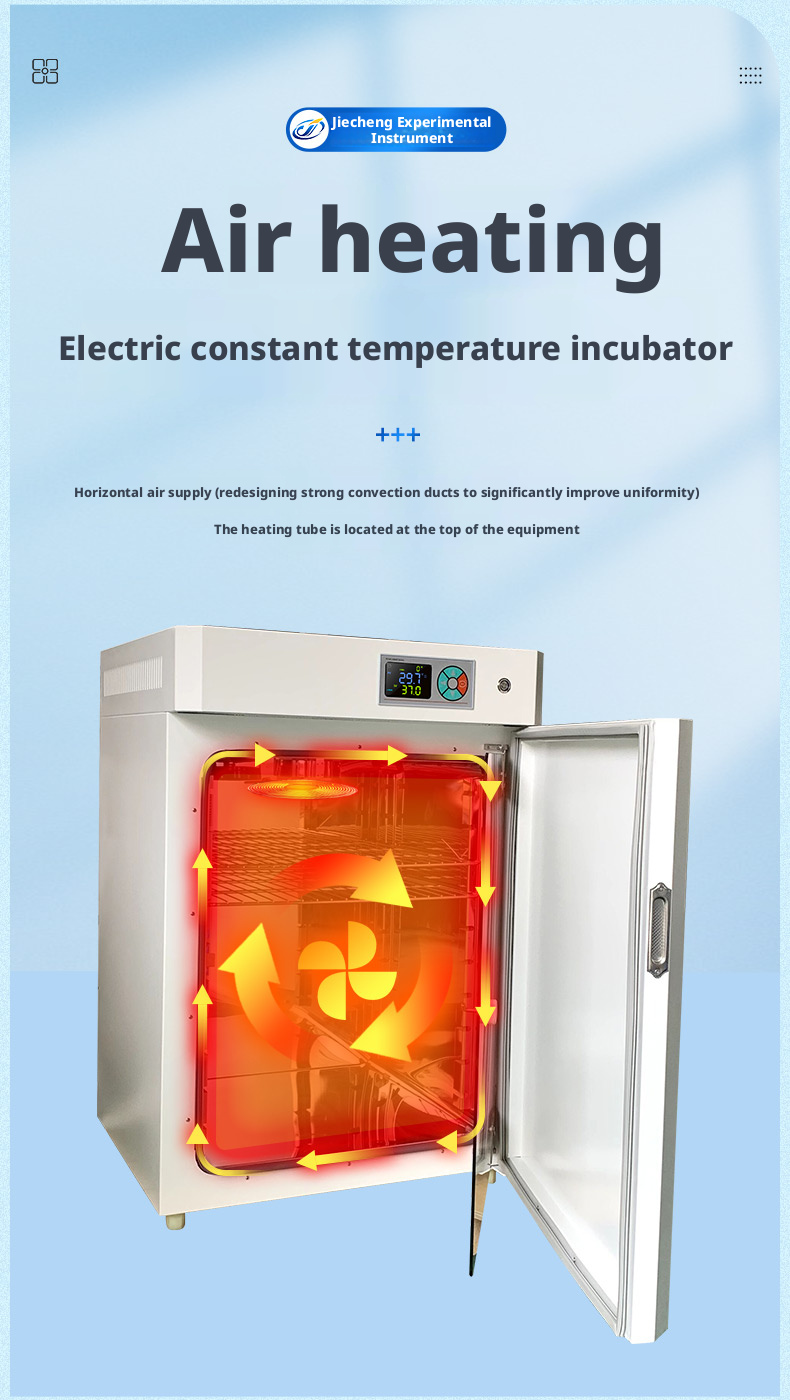

The hot air circulation system consists of a fan that can operate continuously at high temperatures and a suitable air duct, which improves the temperature uniformity in the working room.
★ The cargo tray inside the box can be freely adjusted
Introduction to Control System:
★ Adopting a microcomputer P.I.D temperature controller with over temperature deviation protection and digital display, with timing function, stable and reliable temperature control.
★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function
★ Functions such as over temperature alarm, scheduled shutdown, call recovery, parameter encryption, temperature correction, etc.
★ Equipped with power-off recovery function, the device can automatically resume operation according to the original set program after the external power supply suddenly loses power and then resumes power
safety function:
★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment
★ Safety functions: sensor fault alarm, over temperature alarm, separate over rise protector, separate over temperature protector, over-current trip protection, etc

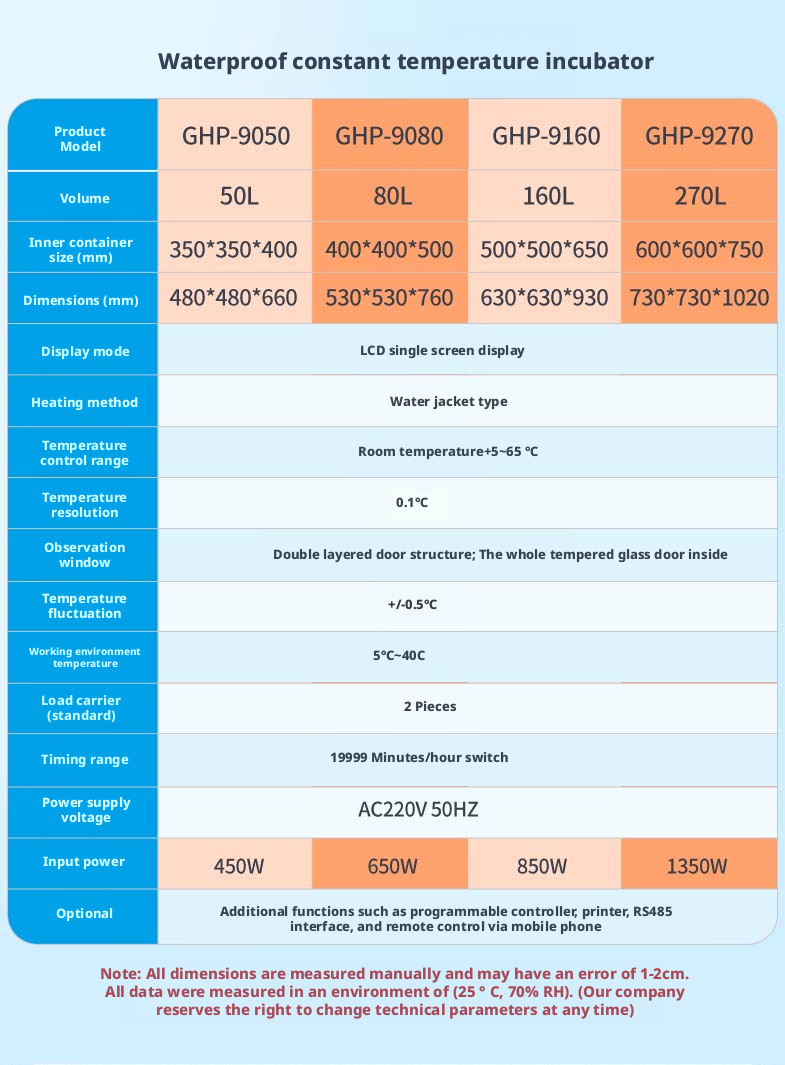

Parameter Introduction:
product name |
Waterproof constant temperature incubator |
Product Model |
GHP-9270 |
display mode |
LCD single screen display |
Heating method |
Water jacket type |
power supply voltage |
AC220V 50HZ |
Temperature control range |
room temperature+5~65℃ |
temperature resolution |
0.1℃ |
volatility |
±0.5℃ |
Working environment temperature |
5℃~40℃ |
input power |
1350W |
Inner container size(W*D*H) |
600*600*750mm |
External dimensions(W*D*H) |
730*730*1020mm |
Load carrier (standard) |
2 pieces |
timing range |
1~9999min |
after-sales service |
National Joint Insurance Service |
Opening method |
Manual door opening |
observation window |
Double layered door structure; The whole tempered glass door inside |
volume |
270L |
Inventory status |
spot |
optional |
PrinterRS485 interface, mobile remote control and other ancillary functions. |
