Vertical blast drying oven, also known as vertical blast drying oven, is a product produced using large-scale laser cutting processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research institutions, etc.

Product Introduction:

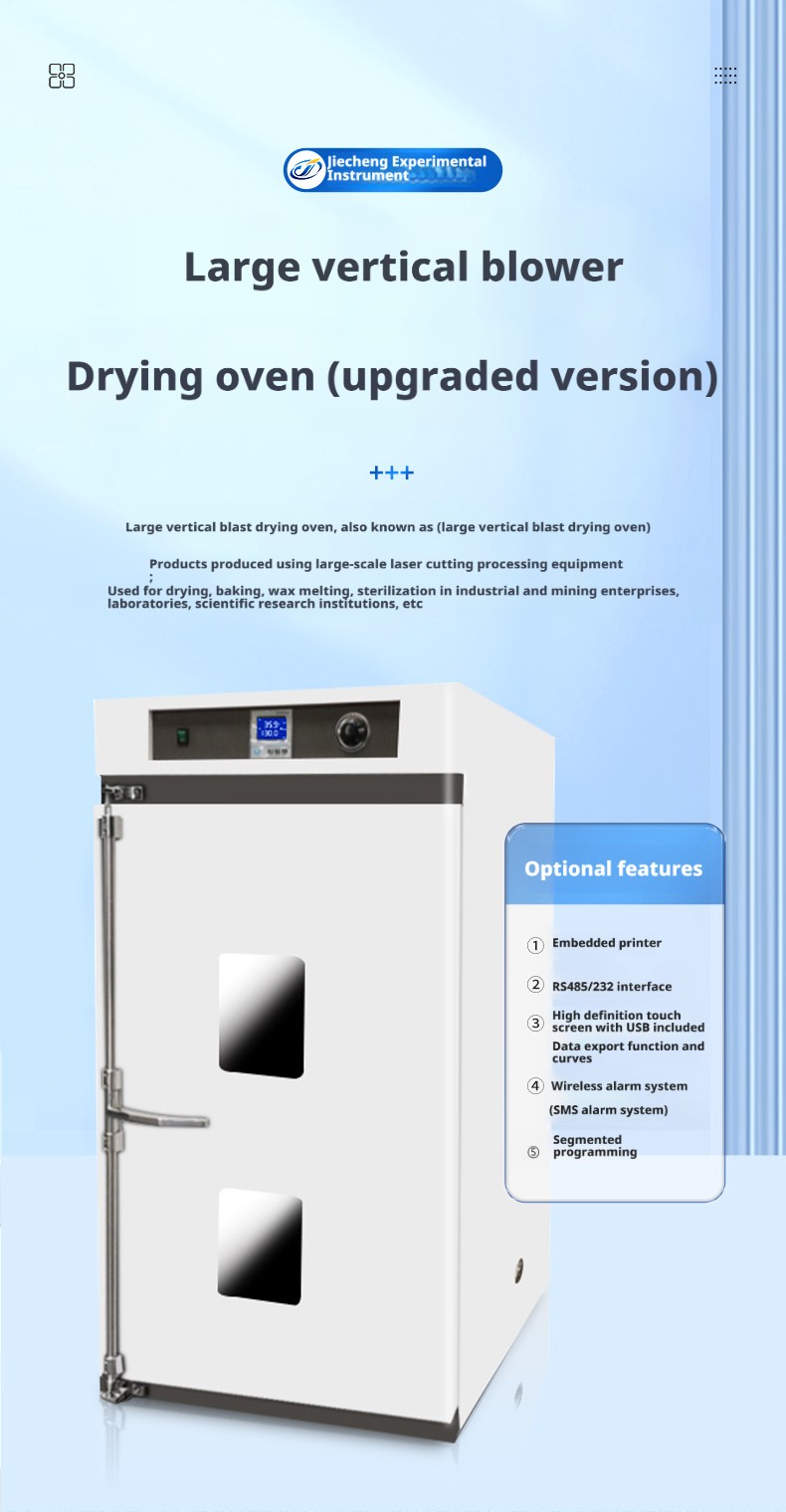

large-scaleVertical blast drying oven, also known as（large-scaleThe vertical blast oven is a product produced using large-scale laser cutting processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research institutions, etc.

structural characteristics：

shellThe whole machine is stillelectricitydesignThe outer box is made of cold-rolled steel plateElectrostatic spray box,Strong corrosion resistance.

door handle：upgradepull rod typeDoor handle, open and close the doorsealdurable.

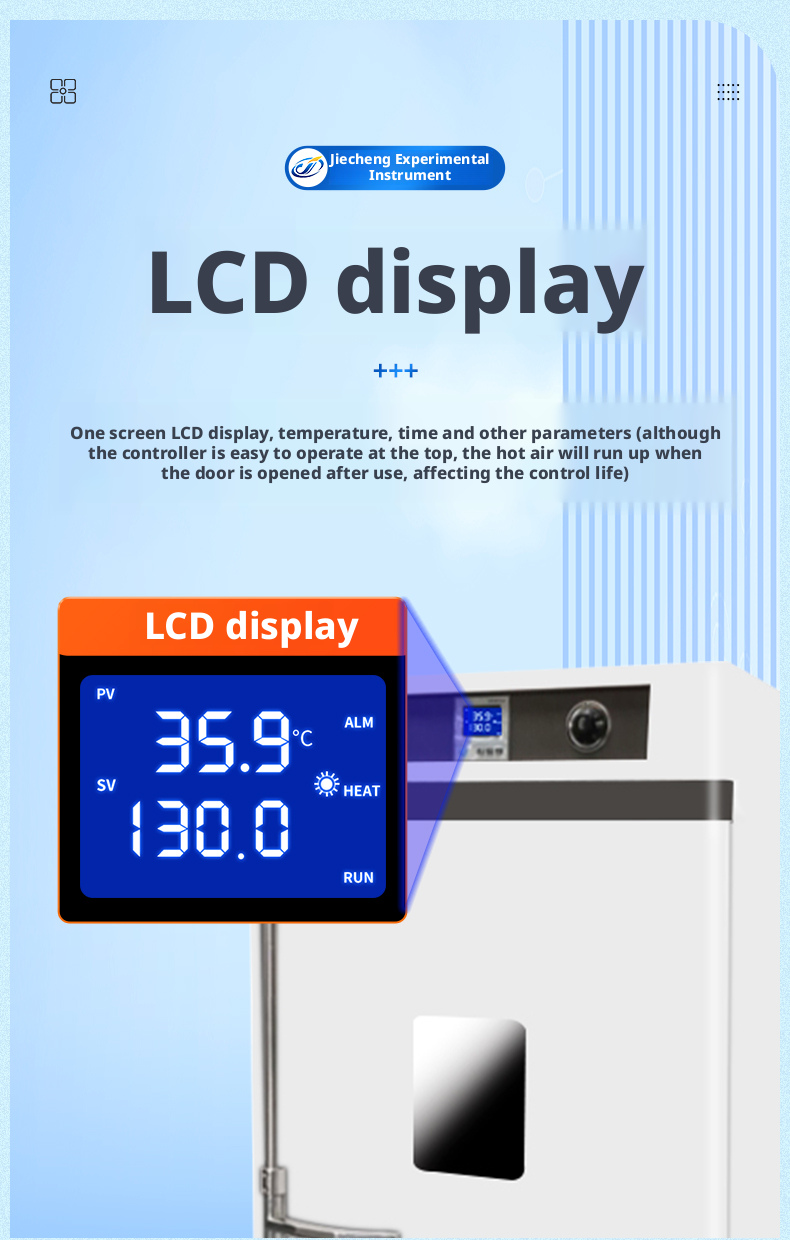

control panel:Display parameters such as temperature and timeAlthough the controller is easy to operate at the top, it opens the door and heats up the air after use.Gas will run upwards, affecting the control life, increasing the appearance of the heat transfer plate, and effectively protecting the controller.

sealing strip：The manufacturer independently molds silicone sealing strips,Material thickening production.

Observation window:Glass upgrade, double-layer tempered glass has a long service life and excellent insulation effect.

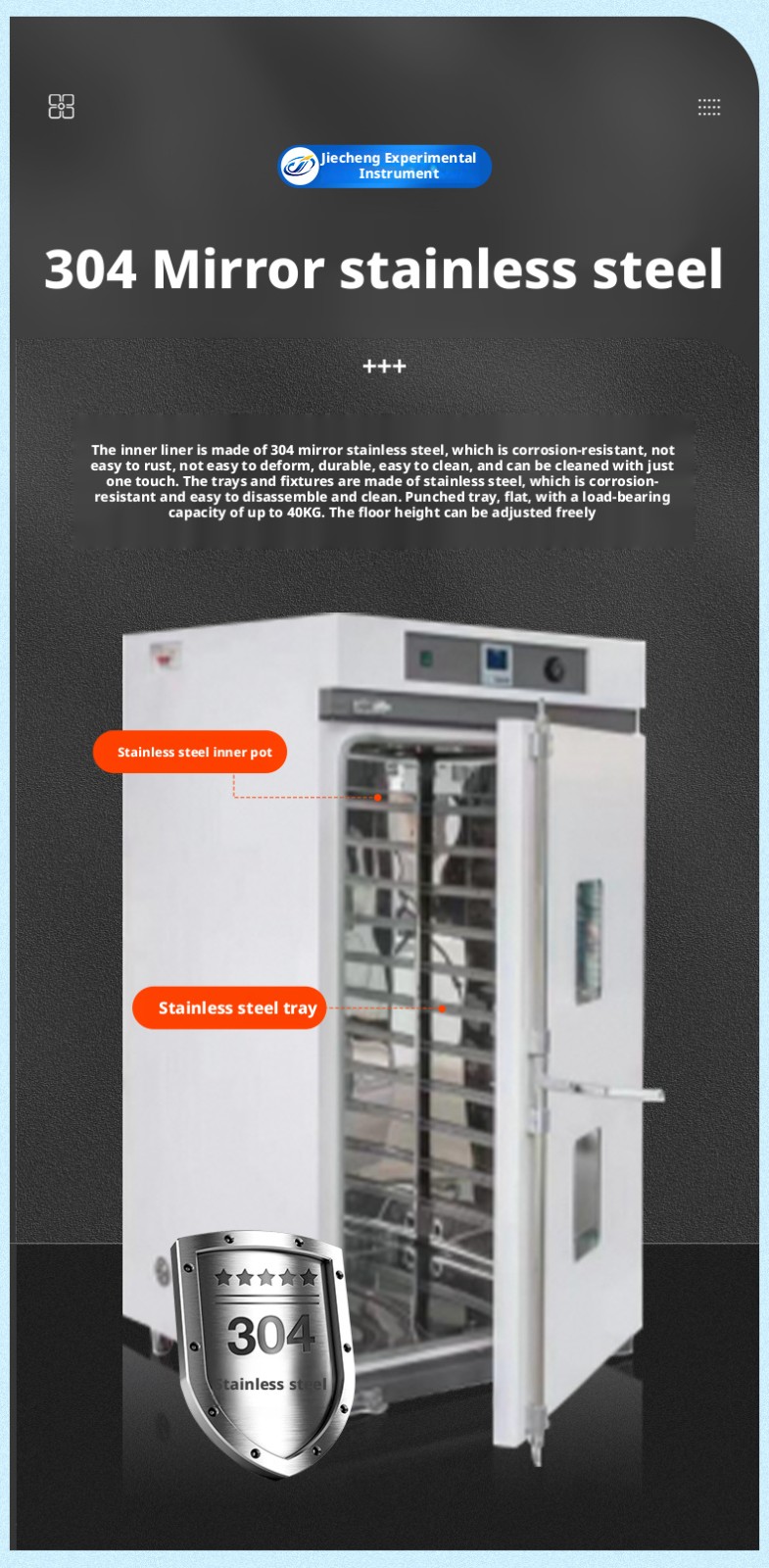

Inner container:adopt304Mirror-finished stainless steel，Using circular arcsR-angle, easy to clean.

partitionBoard:Punching typepallet，Flat and capable of bearing weight up to40KG. The floor height can be adjusted freely.

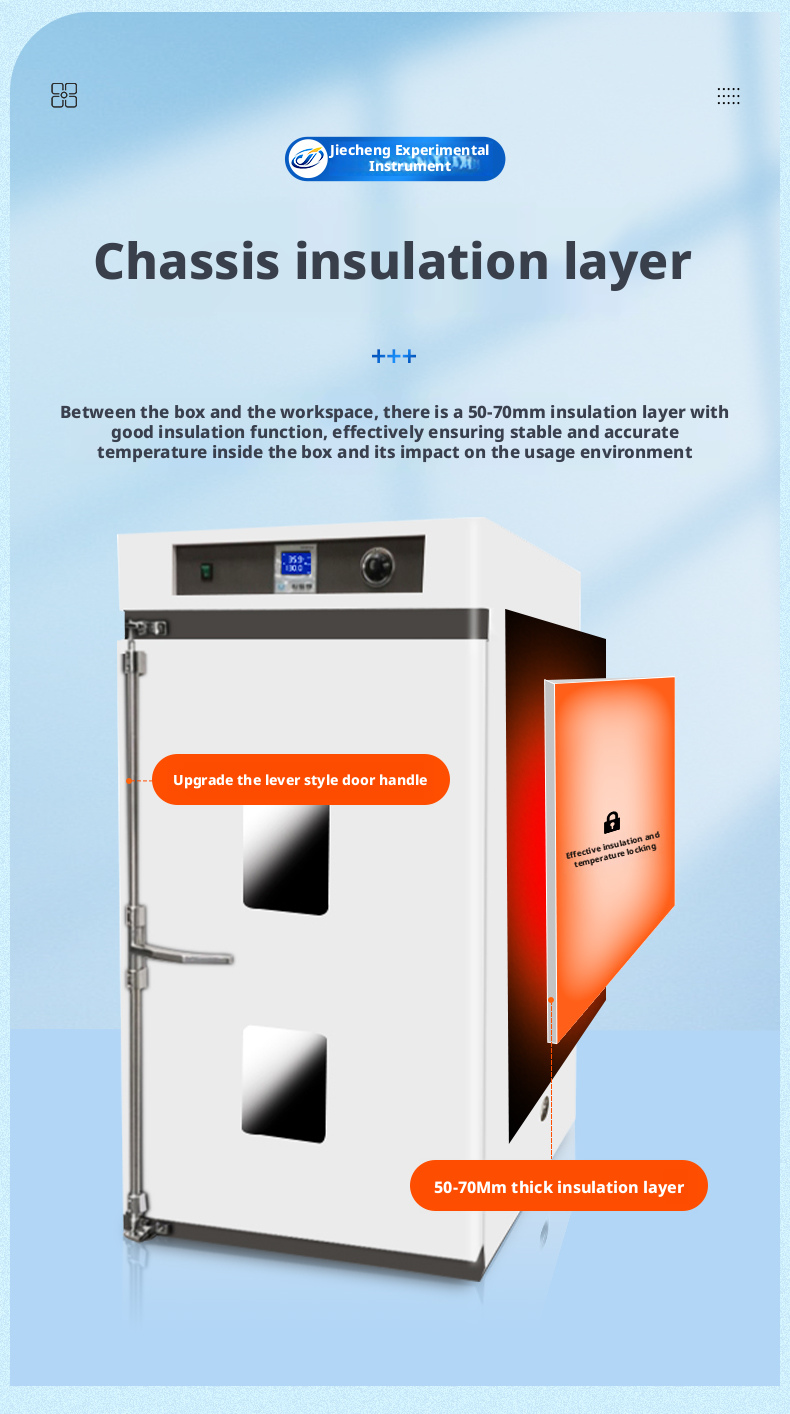

Insulation layer:Between the box and the studio,5-7CM insulation layerHas good insulation function.

sealing strip：The manufacturer independently molds silicone sealing strips,Material thickening production.

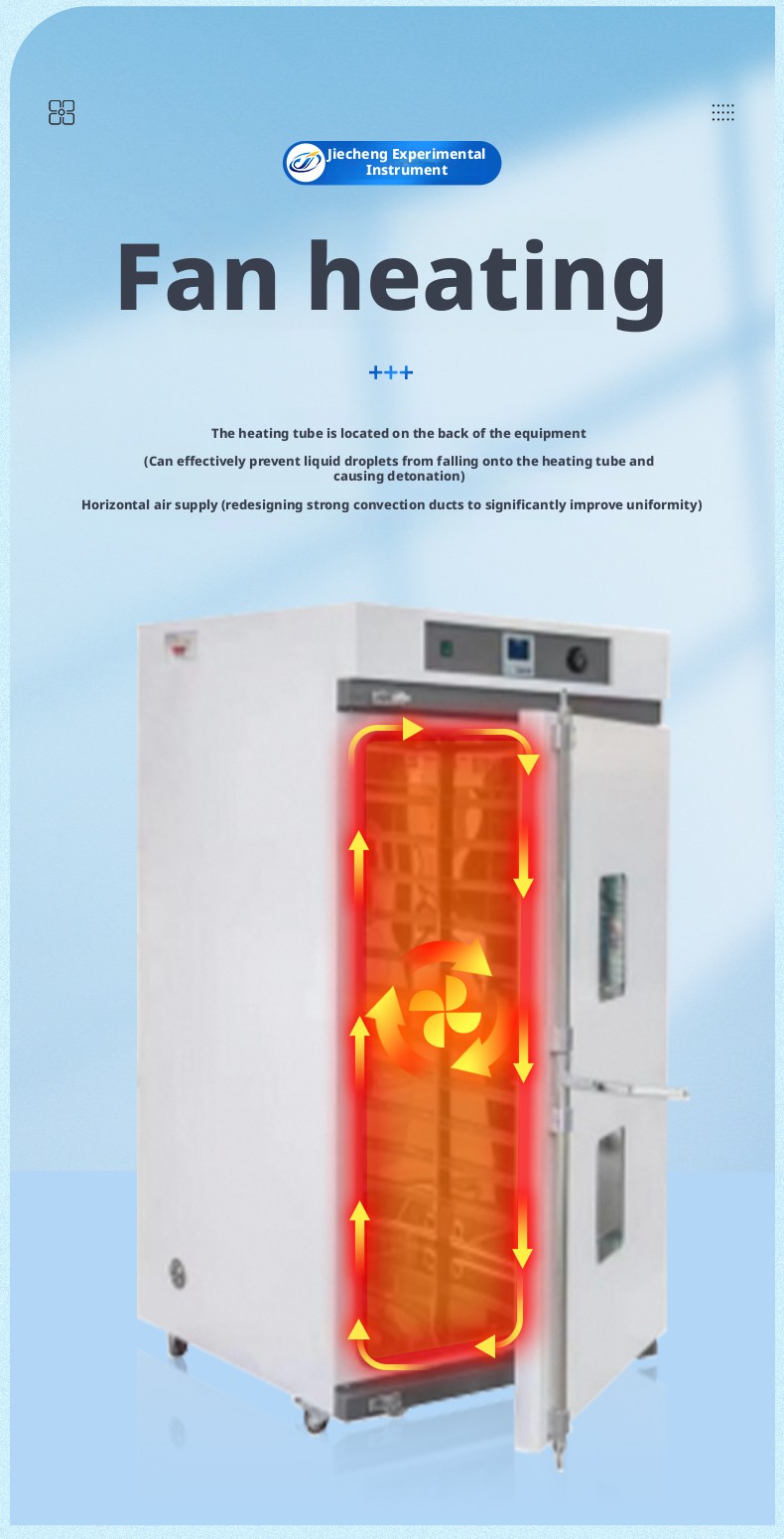

heatTube:The heating tube is located on the back of the device (which can effectively prevent liquid droplets from falling onto the heating tube and causing detonation).

Improvement of air duct structure：Horizontal air supply(Redesigning strong convection ducts to significantly improve uniformity).

air switch:Stable and highly repetitive Instead of traditional fuses, fuses need to be replaced after melting.

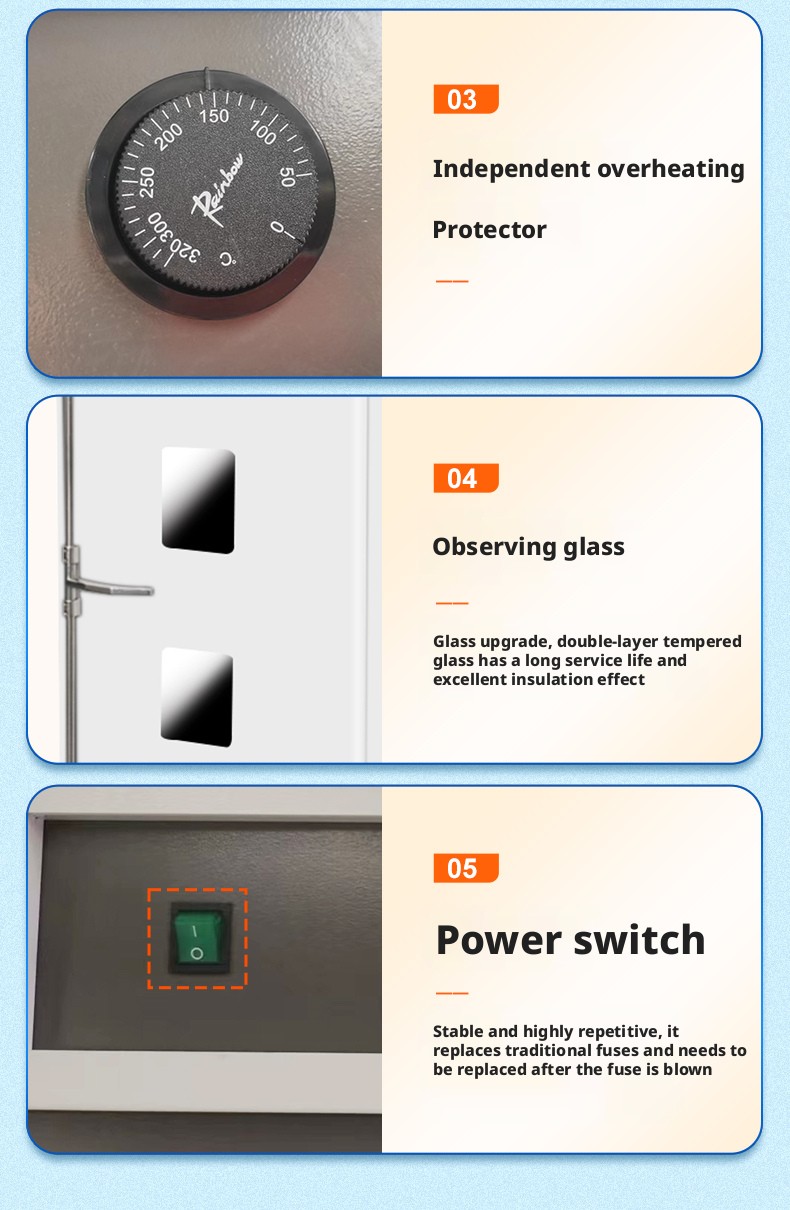

Independent over temperature protector:Temperature can be set, and over temperature sound and light alarms can be triggered.

Introduction to Control System：

★ Personalized program design：Fixed value mode,PID processing controller, capable ofDisplay parameters such as temperature and time

★ Equipped with over temperature deviation protection, over speed protectiontouch screenMicrocomputer P.I.D temperature controller with timing function displayed.

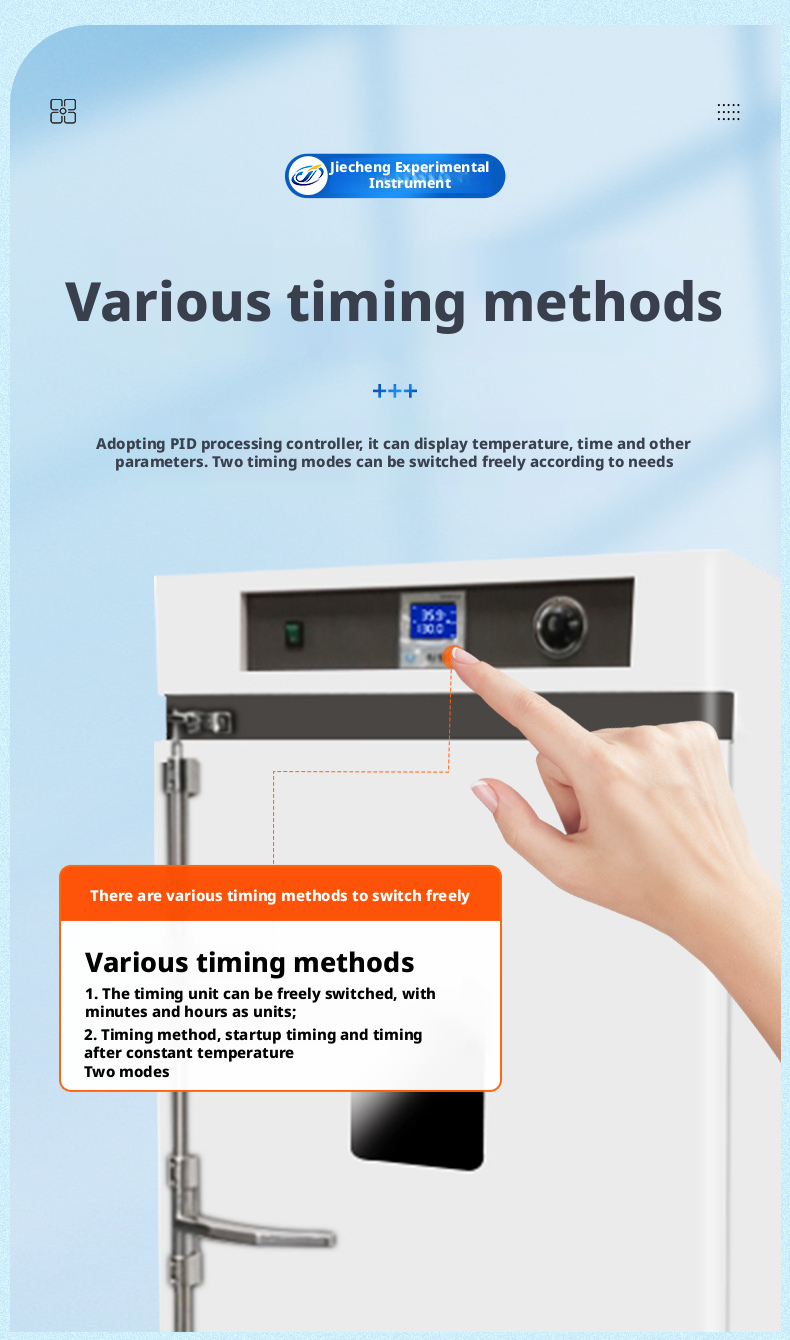

★There are various timing methods:1. The timing unit can be freely switched, with minutes and hours as units;2.There are two timing modes: startup timing and constant temperature timing.

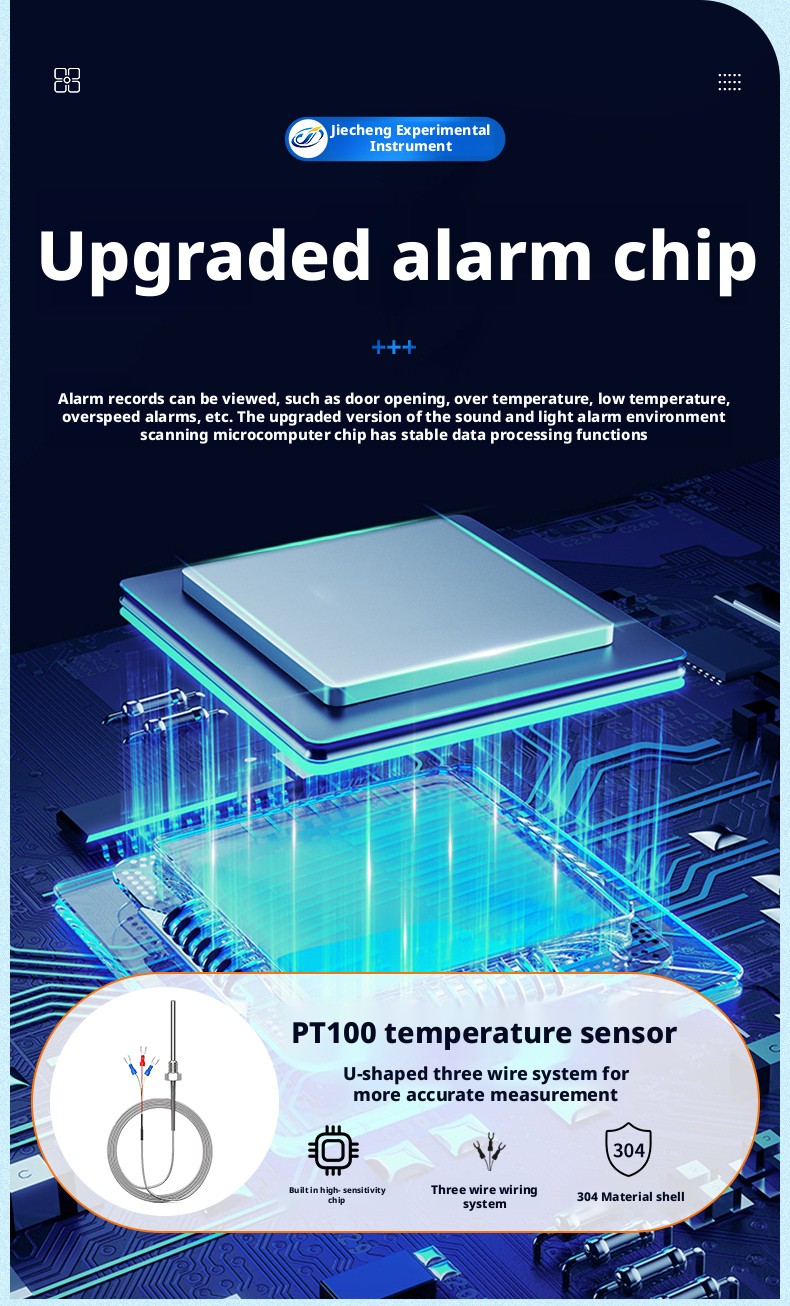

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★ Over temperature alarm, scheduled shutdown, power recovery, parameter encryption, temperature correction.

★ Equipped with power-off recovery function：After the external power supply suddenly loses power and returns to power, the device can automatically resume operation according to the original set program

★ Self tuning function:When the temperature control is abnormal, the self-tuning function can be used, and the controller will calculate reasonable parameters on its own.

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, overtemperature alarm, separate over rise protector, overcurrent trip protection, etc.

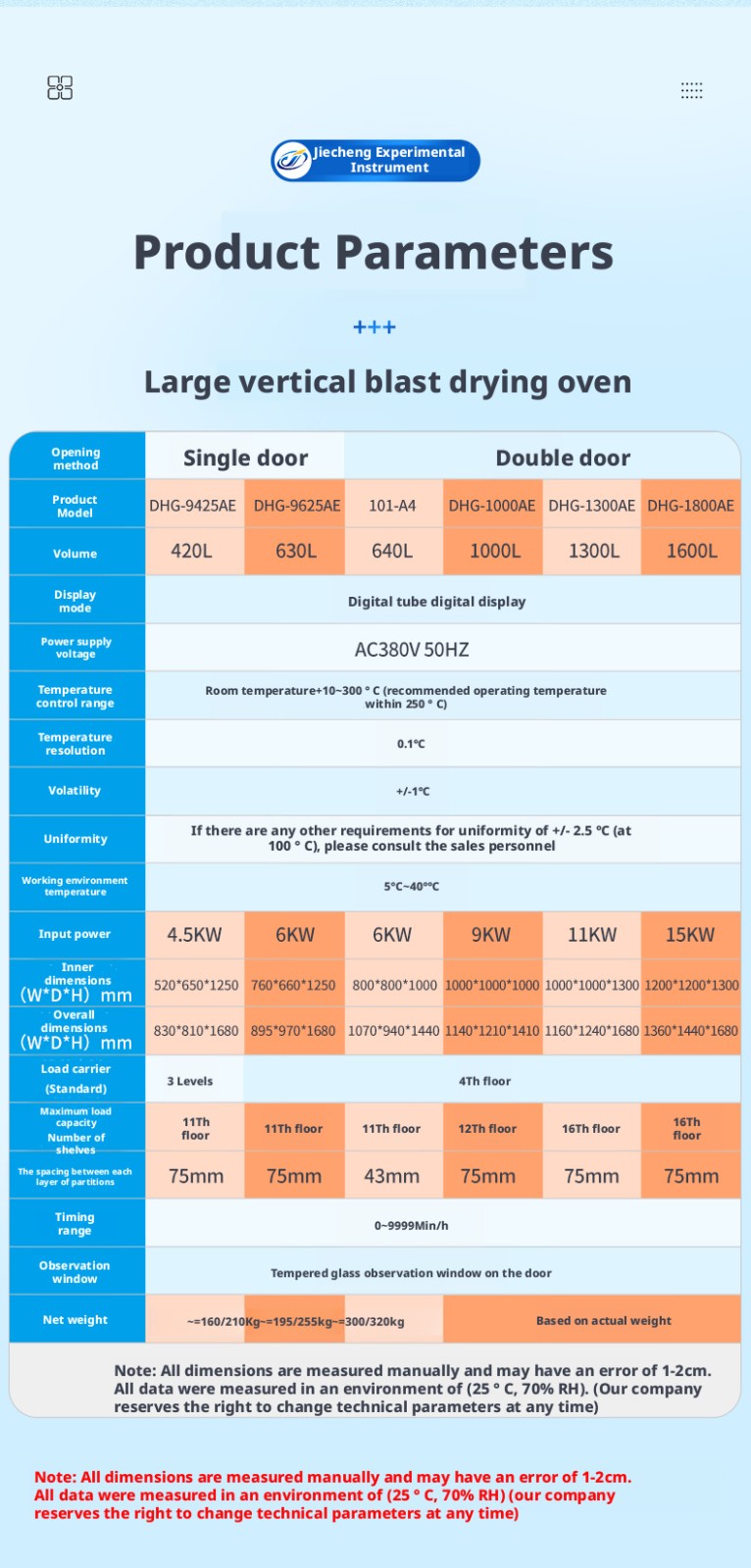

Parameter Introduction：
