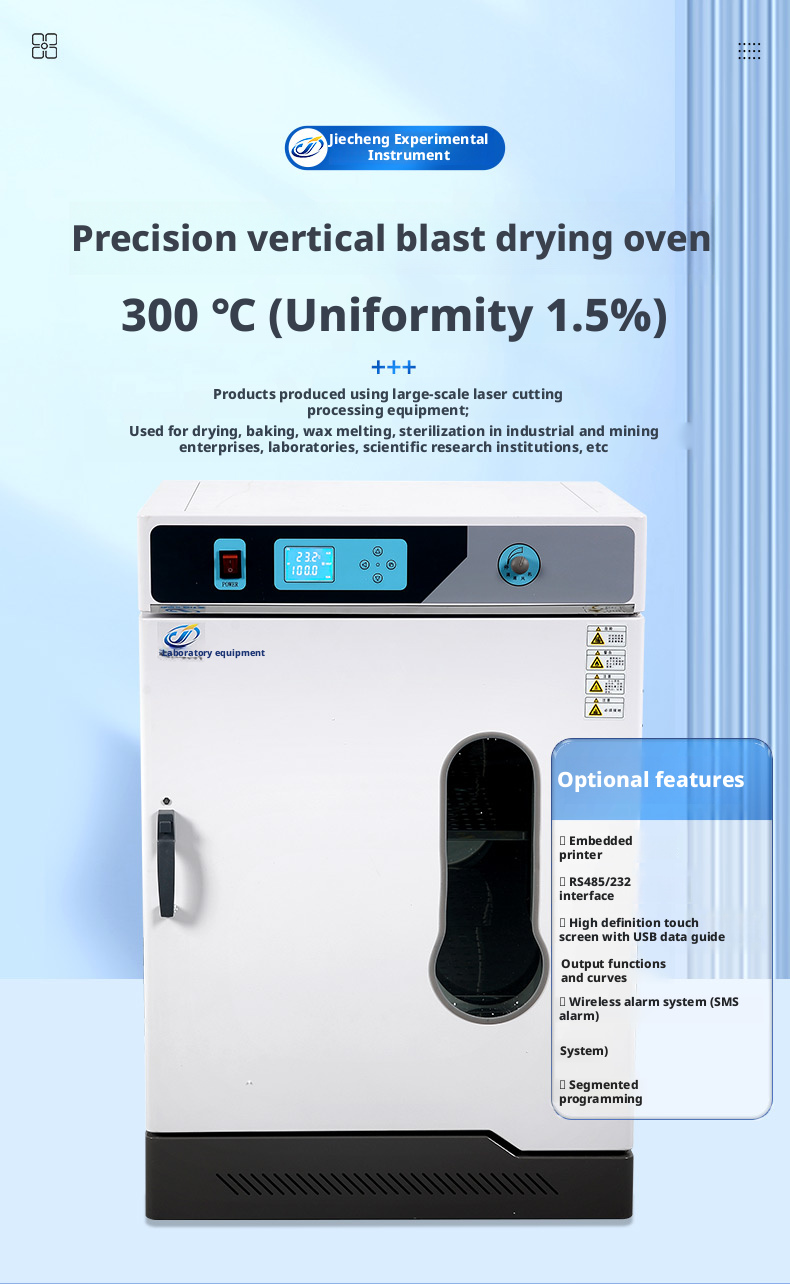

Jiecheng Instrument, a manufacturer of vertical blast drying oven, produces precision vertical blast drying oven products using large-scale laser cutting processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research institutions, etc.

Product Introduction:

precision typecirculation oven，Products produced using large-scale laser cutting processing equipment; Used for drying, baking, wax melting, and sterilization in industrial and mining enterprises, laboratories, research institutions, etc.

structural characteristics：

shellThe whole machine is stillelectricitydesignThe outer box is made of cold-rolled steel plateElectrostatic spray box,Strong corrosion resistance.

★door handle：Upgraded attachment door handle, simple, lightweight and durable for opening and closing doors

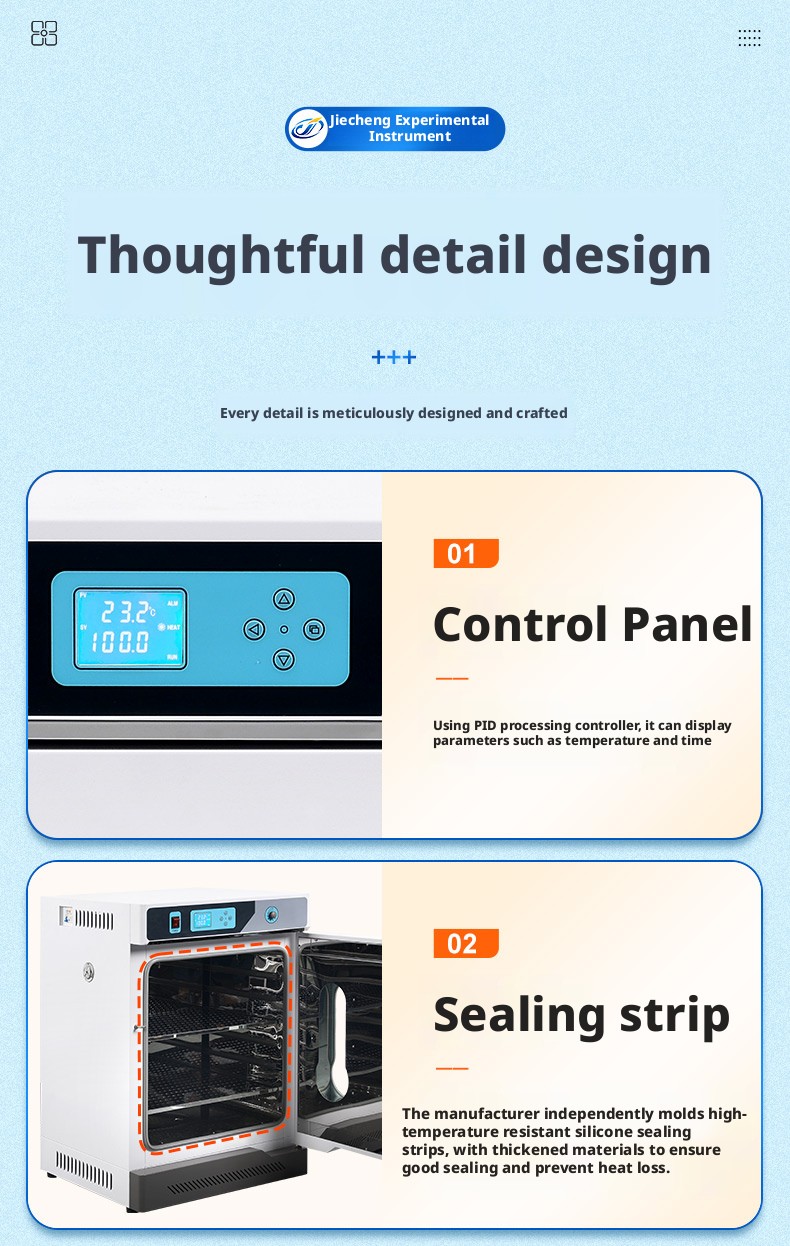

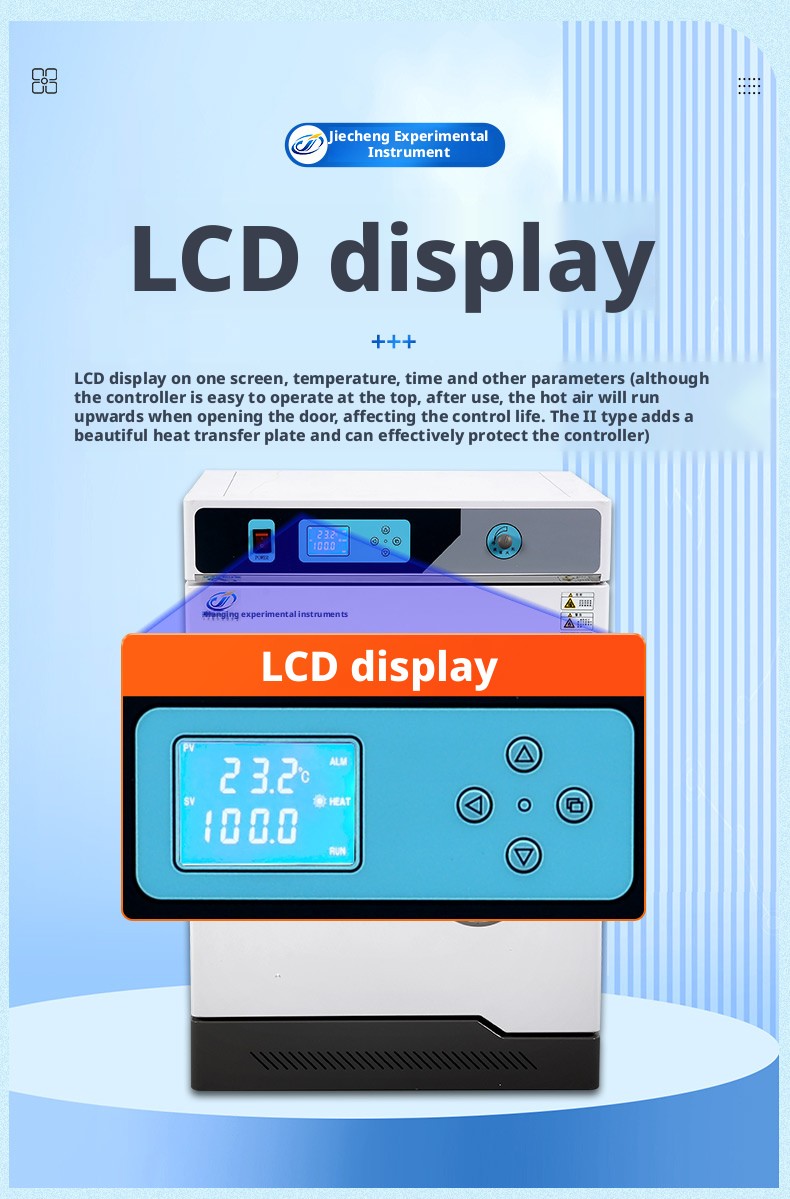

★control panel:adoptPIDliquid crystalScreen display, temperature, time and other parameters

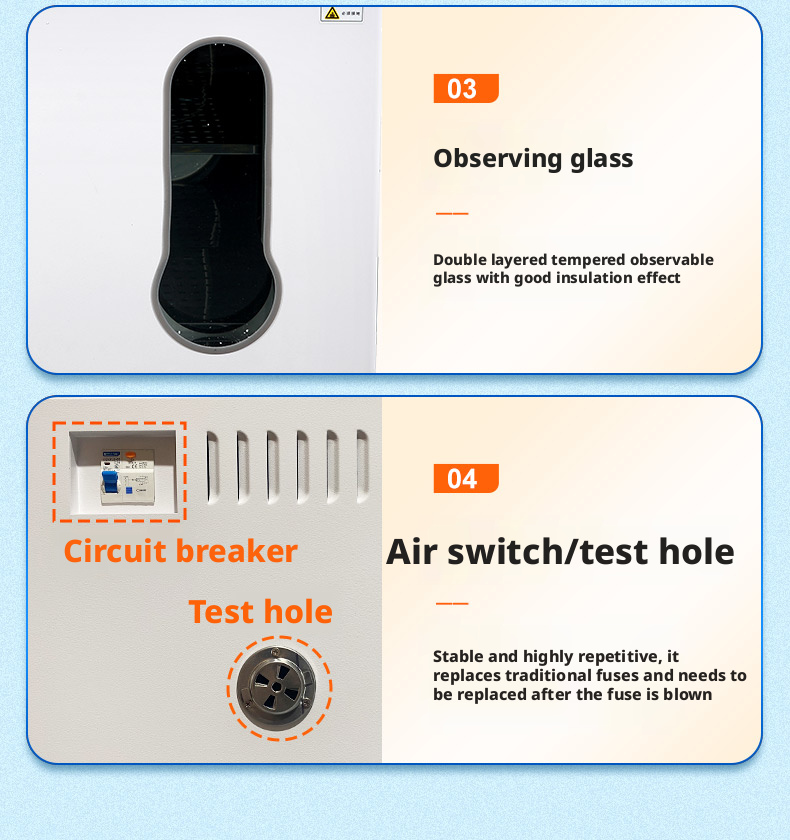

★Observation window:double-layerThick tempered glass,The entire working state of the wide-angle observation window is clear and distinct.

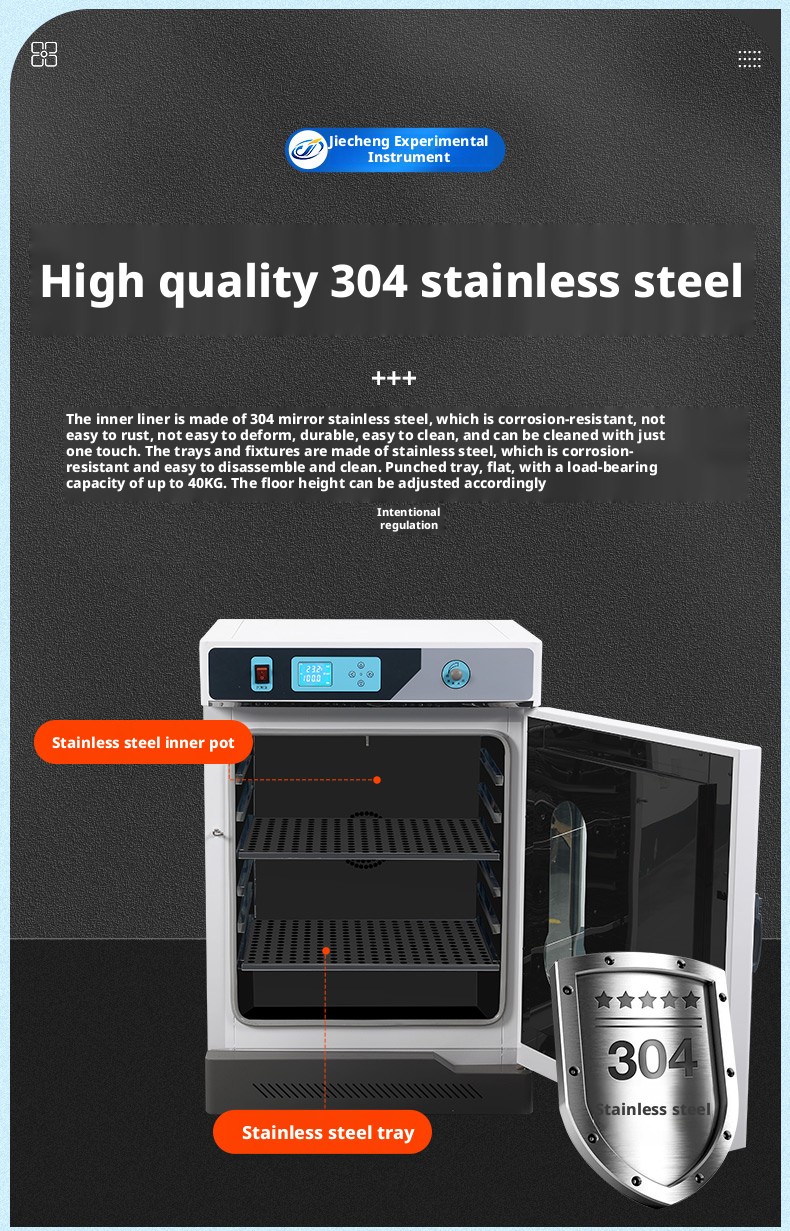

★Inner container:adoptMirror-finished stainless steel，Using circular arcsR-angle, easy to clean.

★partitionBoard:Punching typepallet，Flat and capable of bearing weight up to40KG， The floor height can be adjusted freely.

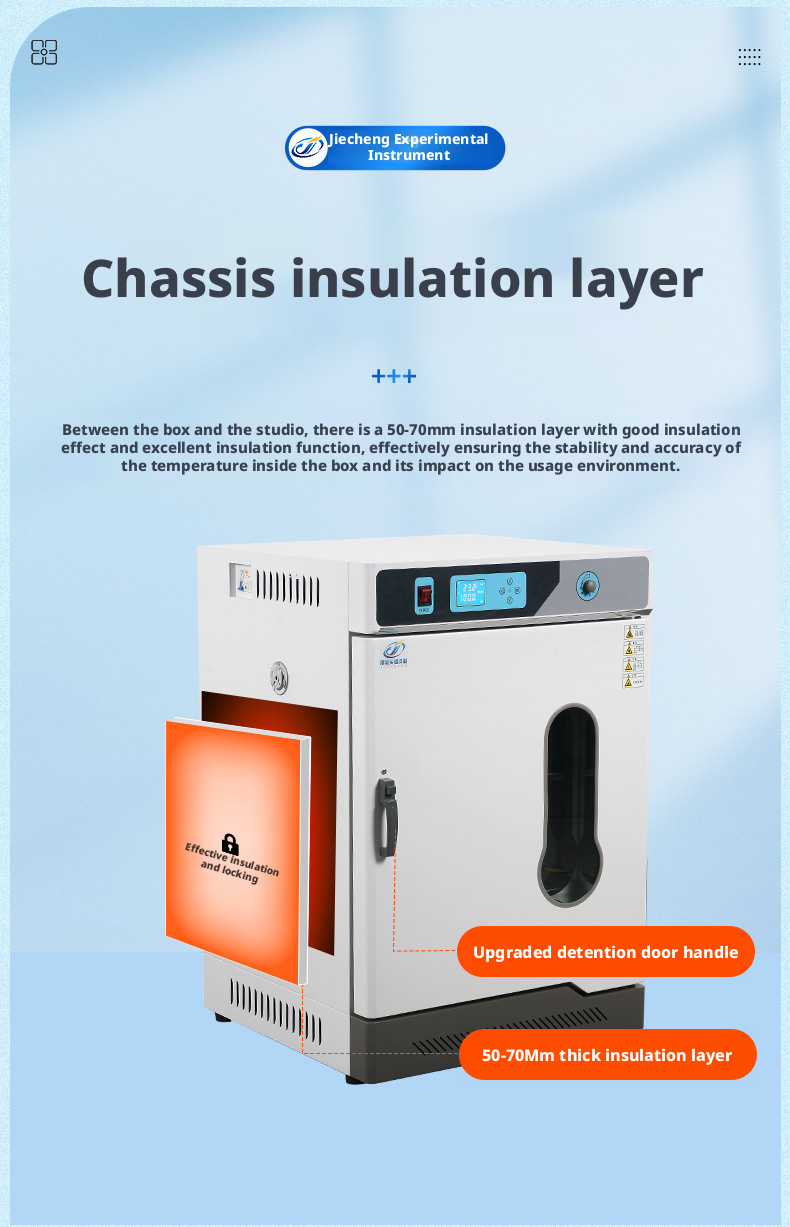

Insulation layer:Between the box and the studio,5-7CM insulation layerHas good insulation function.

★sealing strip：The manufacturer independently opens the moldHigh temperature resistant silicone sealing strip，Thickened material production,Ensure good sealing to prevent heat loss.

★heatTube:The heating tube is located on the back of the device (which can effectively prevent liquid droplets from falling onto the heating tube and causing detonation)

★air switch:Stable and highly repetitive Instead of traditional fuses, fuses need to be replaced after melting

★Wind speed regulation:Intelligent adjustment4-speed wind speed function.

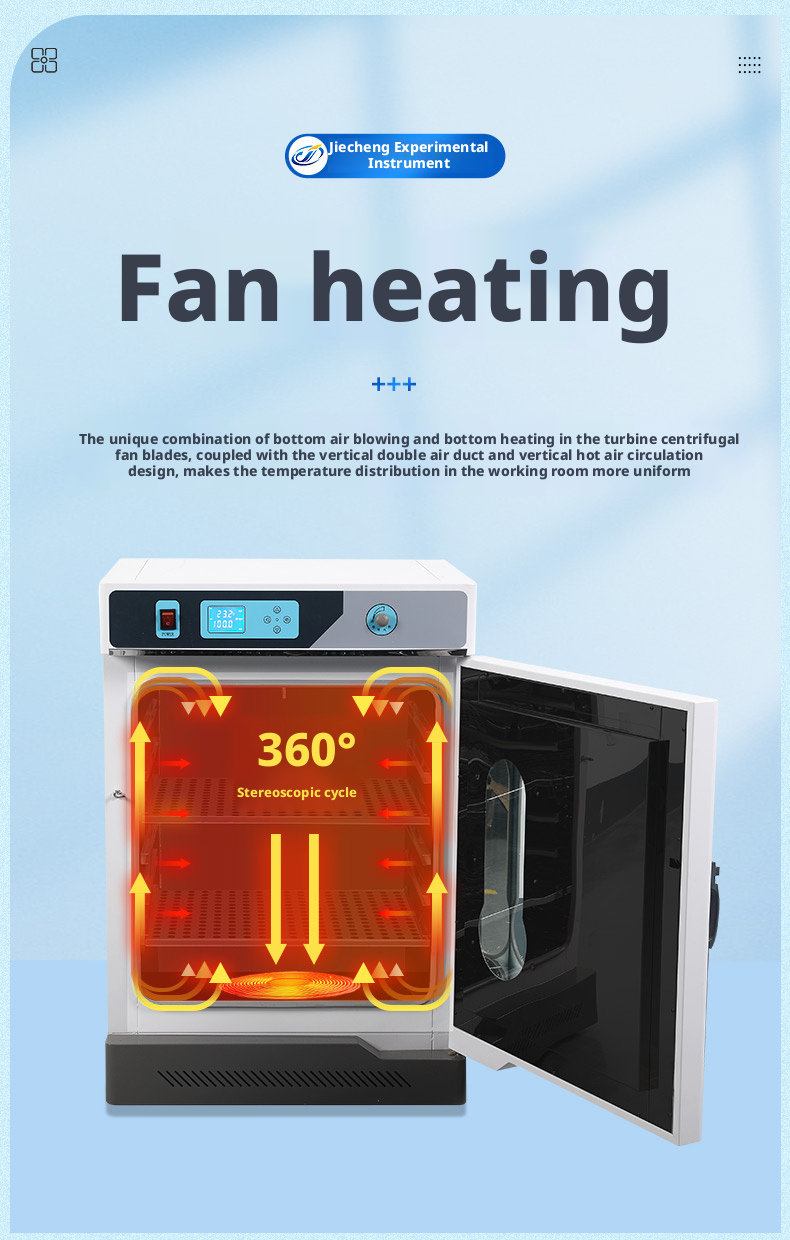

★Improvement of air duct structure：The unique combination of bottom air blowing and bottom heating in turbo centrifugal fan blades,Vertical dual duct vertical hot air circulation design, making the temperature distribution in the studio more uniform

★After-sales service is guaranteed.：After sales service is available throughout the country (excluding townships)

★Provide video teaching：Reduce the time for users to read the manual.

Introduction to Control System：

★ Personalized program design：Fixed value mode,PID processing controller, capable ofDisplay parameters such as temperature and time

★ Equipped with over temperature deviation protection, over speed protectiontouch screenMicrocomputer P.I.D temperature controller with timing function displayed.

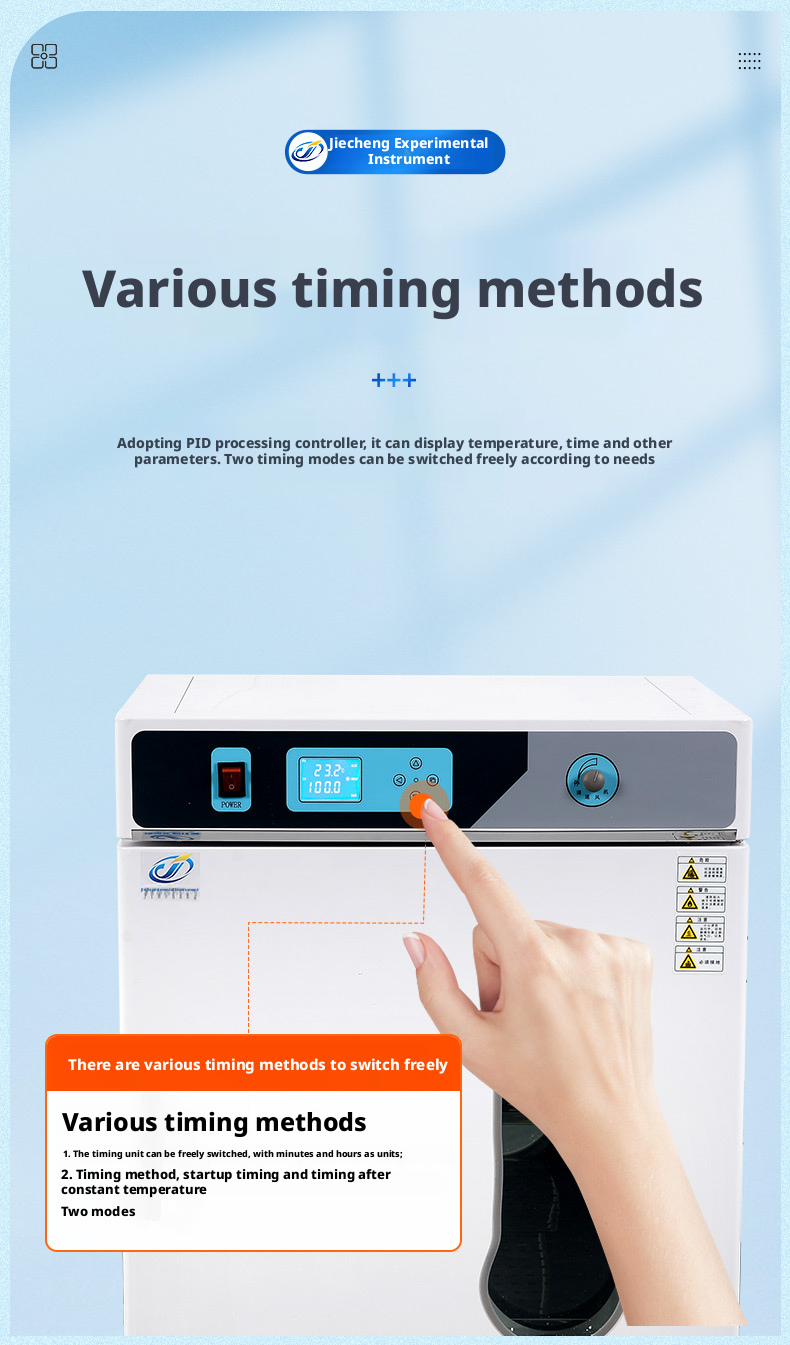

★There are various timing methods:1. The timing unit can be freely switched, with minutes and hours as units;

2.There are two timing modes: startup timing and constant temperature timing.

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★ Over temperature alarm, scheduled shutdown, power recovery, parameter encryption, temperature correction.

★ Equipped with power-off recovery function：After the external power supply suddenly loses power and returns to power, the device can automatically resume operation according to the original set program

★ Self tuning function:When the temperature control is abnormal, the self-tuning function can be used, and the controller will calculate reasonable parameters on its own.

safety function：

★ Thoroughly considered security protection design, achieving triple security protection for personnel, samples, and equipment

★ Safety functions: sensor fault alarm, overtemperature alarm, separate over rise protector, overcurrent trip protection, etc.

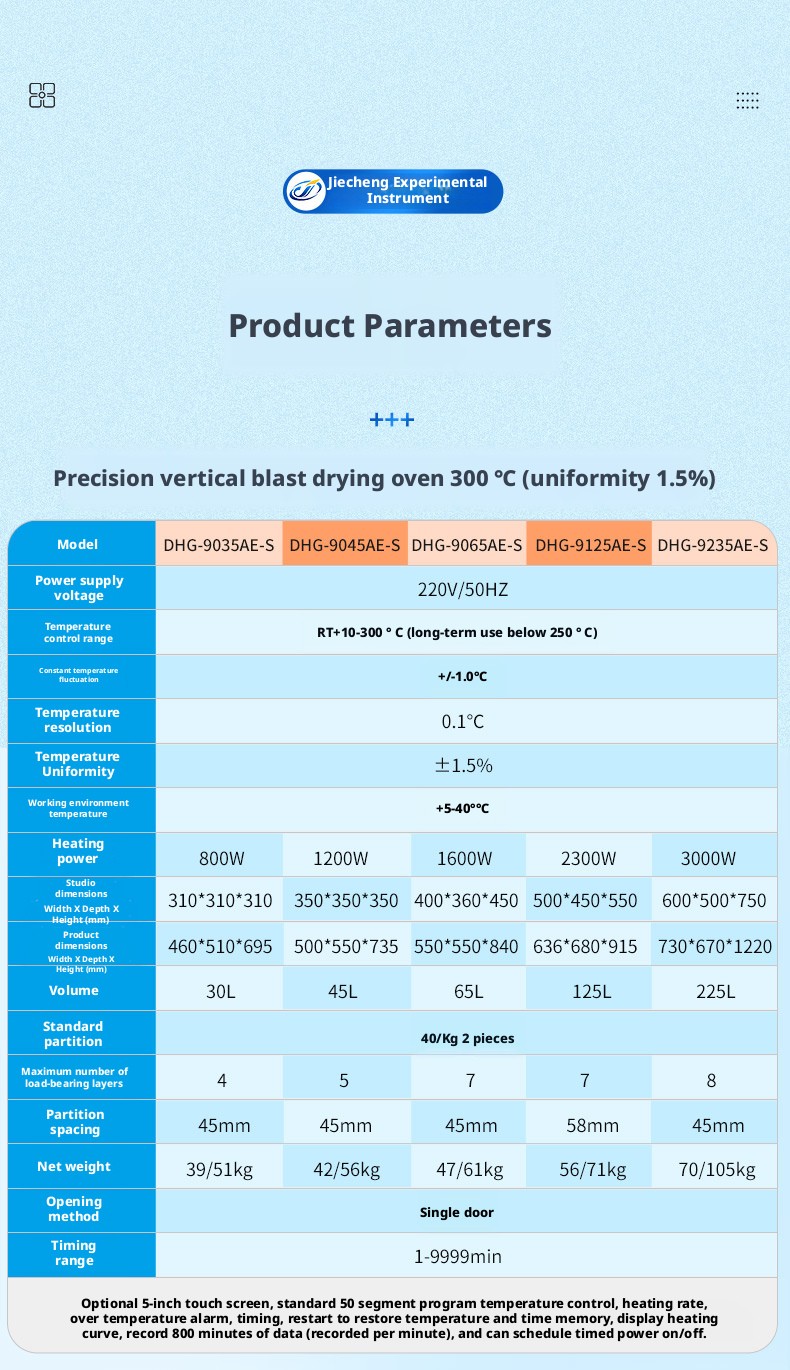

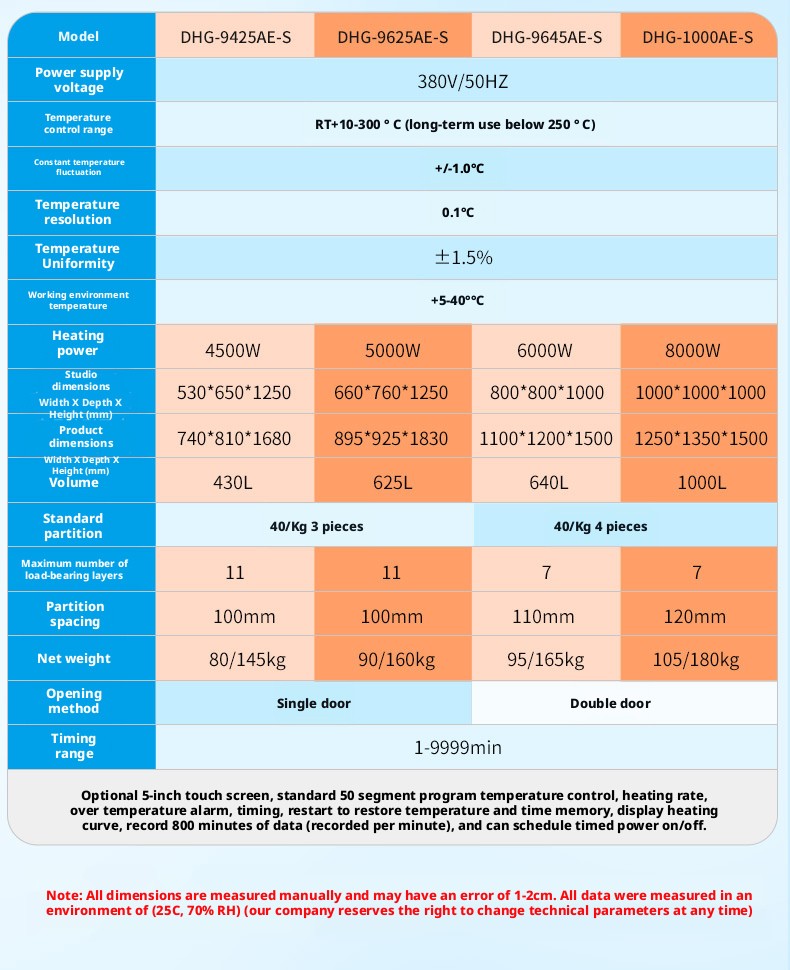

Parameter Introduction：
