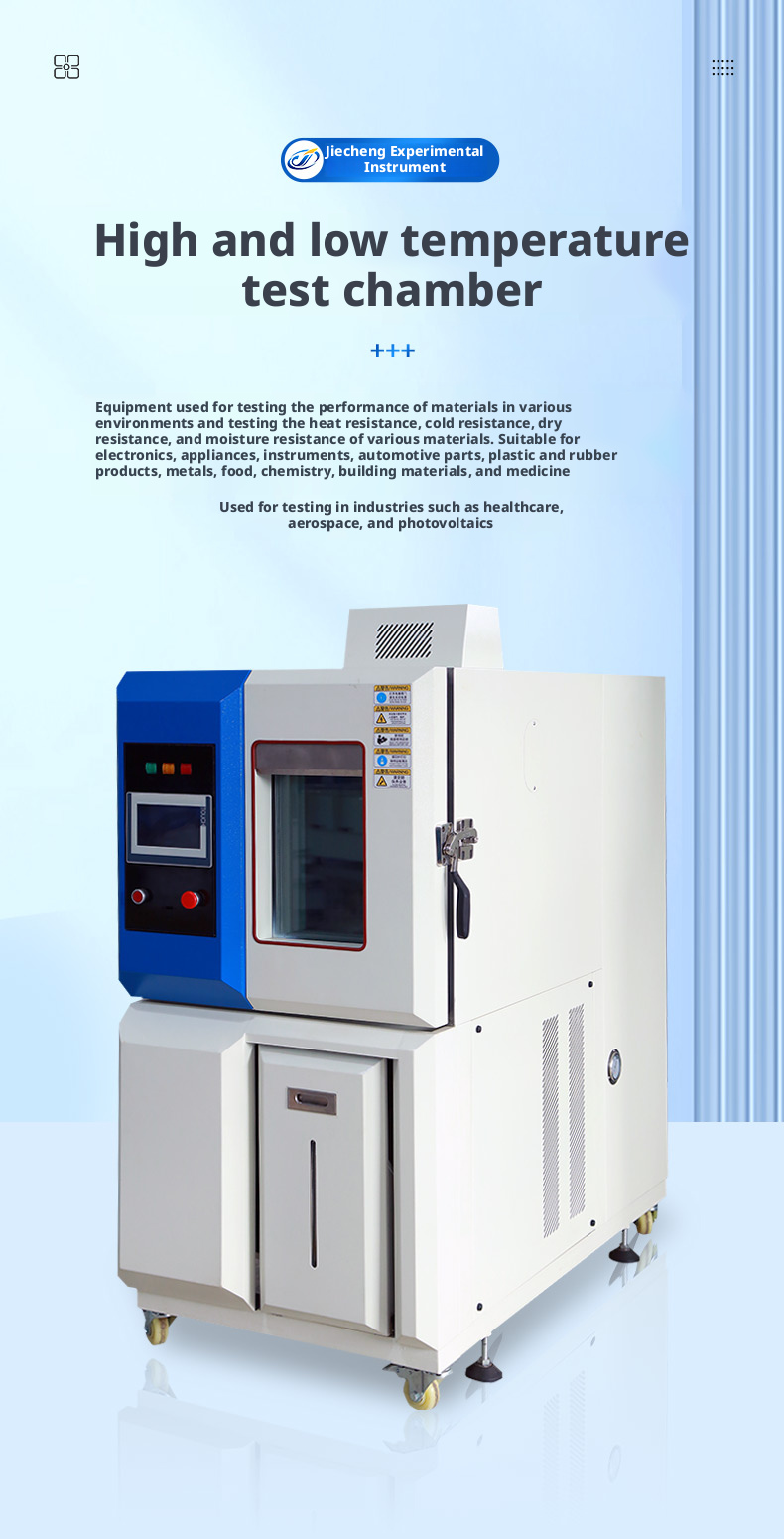

The rapid temperature change test chamber is a device used to test the performance of materials in various environments and to test the heat resistance, cold resistance, dry resistance, and moisture resistance of various materials. Suitable for testing in industries such as electronics, electrical appliances, instruments, automotive parts, plastic and rubber products, metals, food, chemistry, building materials, medical, aerospace, photovoltaics, etc.

Product Overview:

Equipment used for testing the performance of materials in various environments and testing the heat resistance, cold resistance, dry resistance, and moisture resistance of various materials. Suitable for testing in industries such as electronics, electrical appliances, instruments, automotive parts, plastic and rubber products, metals, food, chemistry, building materials, medical, aerospace, photovoltaics, etc.

This series of environmental test chambers can provide a simulated environment for users to inspect and test electronic and electrical components, spare parts, or experimental departments in related industries, providing essential conditions for the accuracy and consistency (repeatability) of test data. This product has simple operational performance and reliable equipment performance, a convenient measuring device, a temperature and humidity controller, and an advanced Chinese LCD touch screen that can perform various complex program settings. The program settings are set in a dialogue mode, and the operation is simple and fast. It can achieve automatic operation of the refrigeration machine, maximize automation, reduce the working time of operators, and can automatically start, stop, and operate at any time. The work of each system (fan, refrigeration dehumidification, heating, humidification) is centrally controlled by the touch screen human-machine interface. The overall assembly is carried out by the customer, with convenient transportation and placement, and on-site debugging and acceptance are carried out by the customer to ensure the performance of use at the customer's end; High degree of structural integration, short assembly and debugging time on the client side, scientific air circulation design, ensuring uniform indoor temperature and avoiding any dead corners; The safety protection device of the equipment avoids any potential safety hazards and ensures the long-term reliability of the equipment; Each device is customized according to customer requirements, ensuring high efficiency and energy efficiency of the equipment.

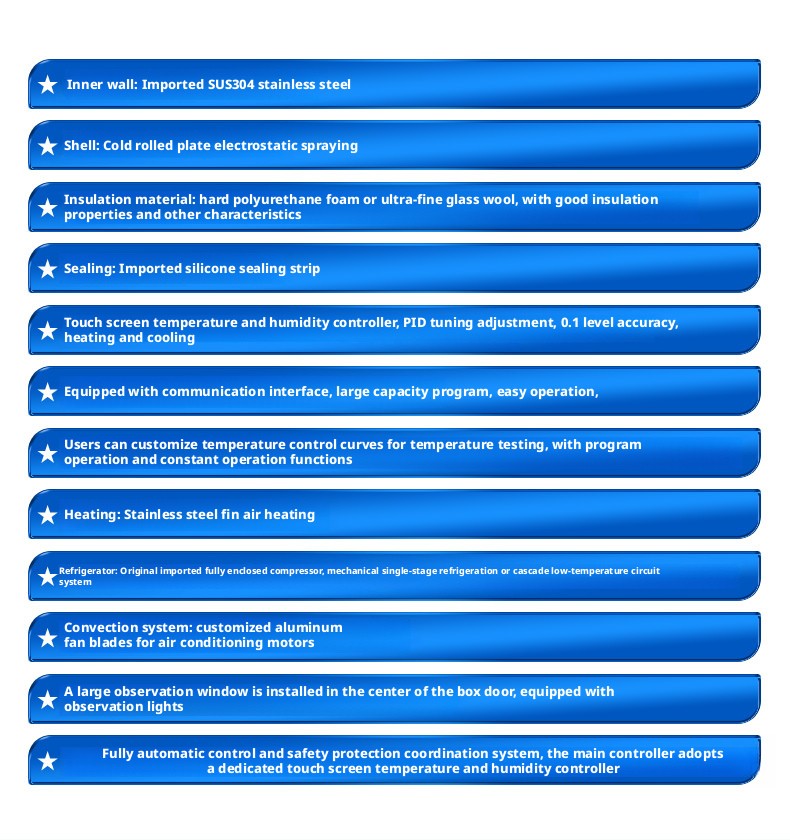

Product Features ：

1. Inner wall: SUS304 stainless steel

2. Shell: Cold rolled plate electrostatic spraying

3. Insulation material: hard polyurethane foam or ultra-fine glass wool, with good insulation properties and other characteristics

4. Sealing: Silicone sealing strip

5. Temperature and humidity control method: BTHC balance temperature and humidity control

6. Touch screen temperature and humidity controller, PID tuning adjustment, 0.1 level accuracy, independent heating, cooling, humidification, and dehumidification,

7Equipped with communication interface, large capacity program, easy operation,

8Users can customize temperature and humidity control curves for temperature and humidity testing, with program operation and constant operation functions

9Heating: Stainless steel fin air heating

10Humidification: Shallow groove steam humidification

11、refrigerationMachine: Original imported fully enclosed compressor, mechanical single-stage refrigeration or cascade low-temperature circuit system

12Equipment water supply purifier

13Convection system: customized aluminum fan blades for air conditioning motors

14A large observation window is installed in the center of the box door, equipped with observation lights

15Fully automatic control and safety protection coordination system, with the main control instrument adoptinguseDedicated touch screen temperature and humidity controller

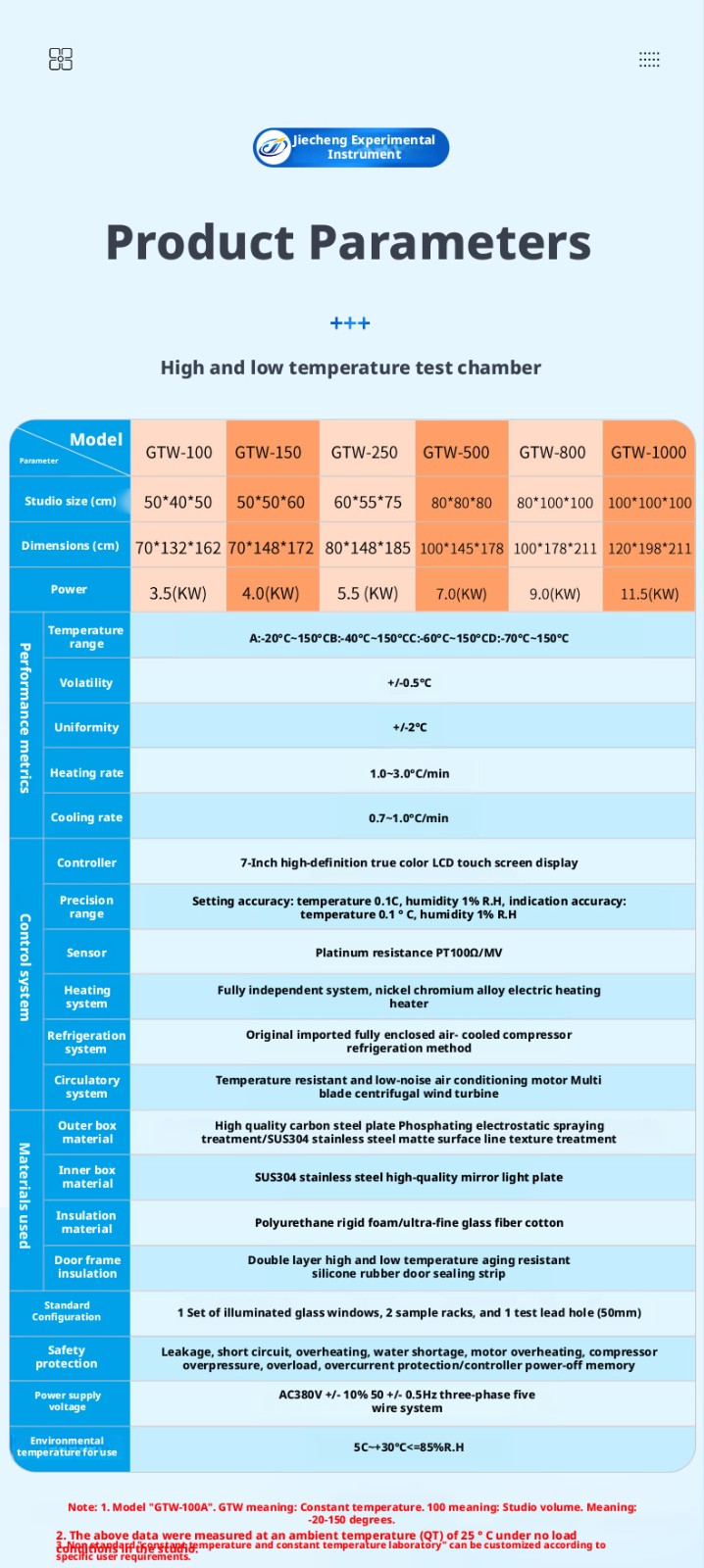

Technical Specifications:
