Ultra high vacuum drying oven, also known as ultra-high vacuum drying oven, is designed for industries such as defoaming of glue, silicone and other items, side leakage of cosmetics, and drying of heat sensitive, easily decomposable and oxidizable substances, crystals, chips, etc. It can be filled with inert gas inside and mainly meets the needs of users in industries with high vacuum requirements.

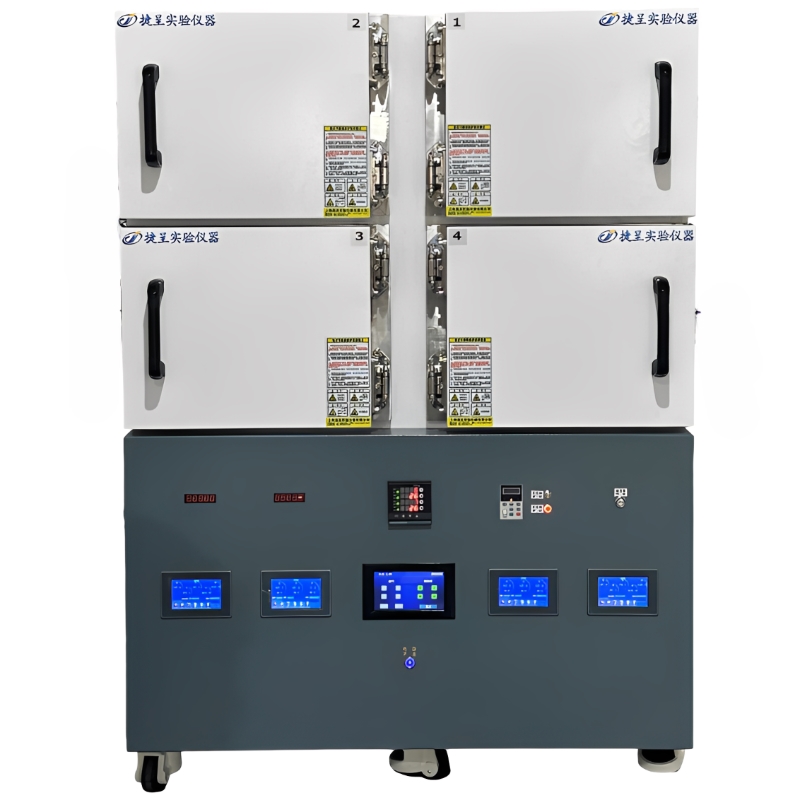

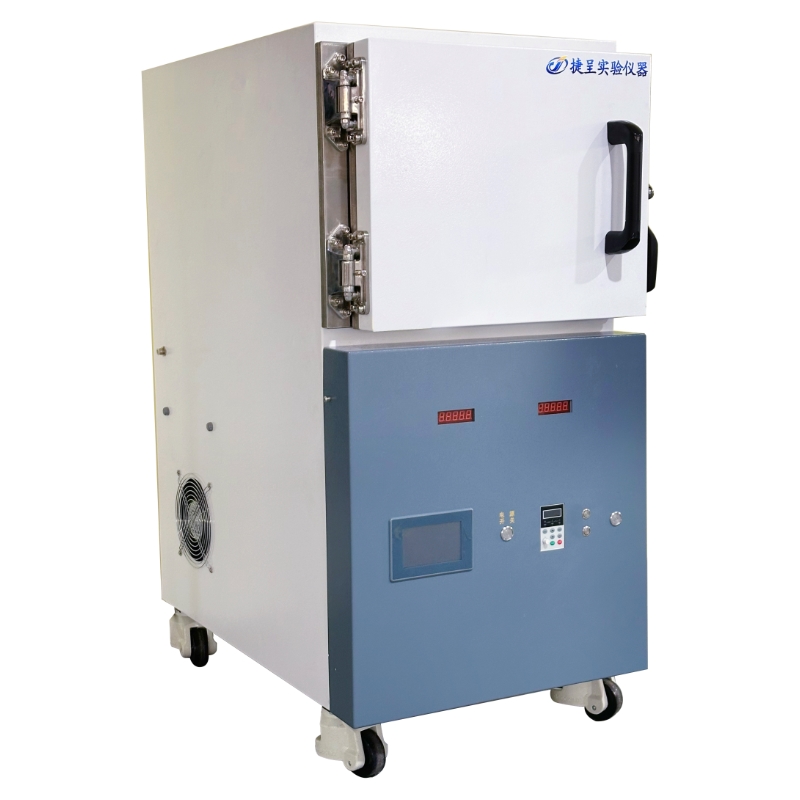

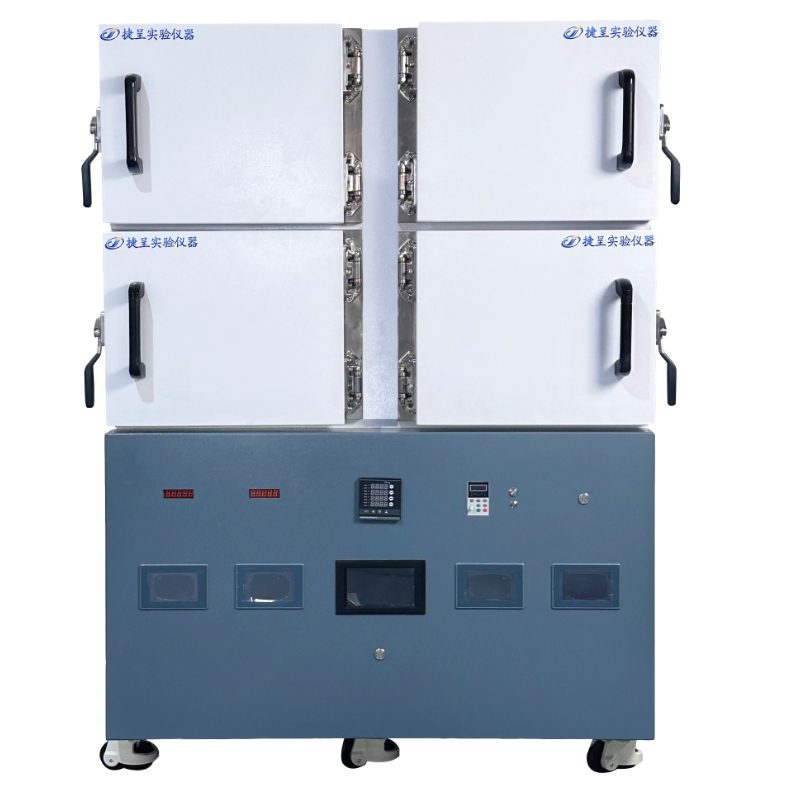

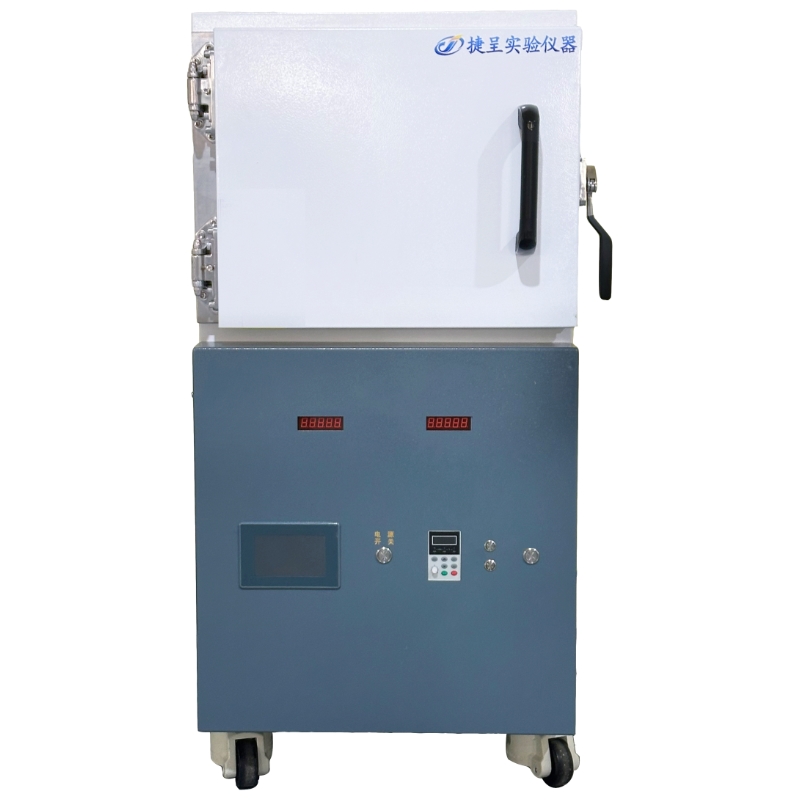

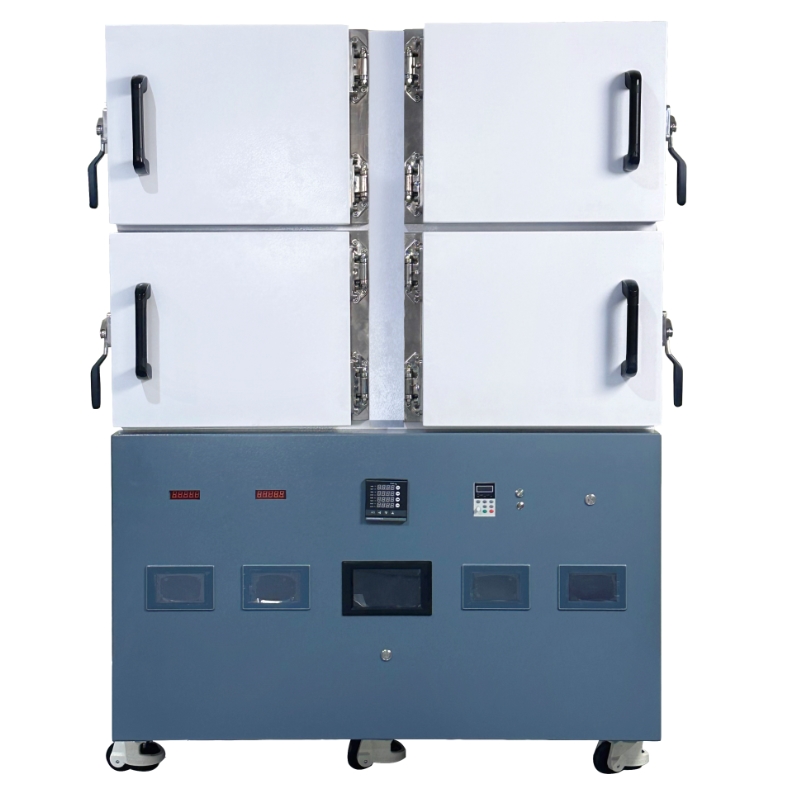

Ultra high vacuum drying oven Model:DZF-E210C

Product Introduction:

Ultra high vacuum drying ovenAlso known as（ultra-highVacuum oven)Specially designed for defoaming of adhesives, silicone and other items, side leakage of cosmetics, and drying of heat sensitive, easily decomposable and oxidizable substances、Crystal, chip and other industriesAnd the design can be filled with inert gas inside,Mainly satisfyingsomeIndustry users with high vacuum requirements.

structural characteristics：

shellThe whole machine is designed with thickening, and the outer box is made of cold-rolled steel plate with electrostatic spraying, which has strong corrosion resistance.

temperaturecontrol panel:5-inch high-definition touch screen, displaying temperature, time, scheduled power on/off functions, standard 9999 cycles, 10 segment programming, customized mode/programmable mode switching.

Inner container:Adopting a thickened inner liner304wire drawingStainless steel material.

a partition:Tray adopts304wire drawingStainless steel material, high strength.

Insulation layer:Fill between the box and the studio10CM thick ceramic fiber cotton has good insulation function, effectively ensuring stable and accurate temperature inside the box and its impact on the usage environment.

Heating tube:Using stainless steel heating tubes, heating is fast and the uniformity is stable.

Heating method: external heating (bundled heating around the inner liner)Conducting heat internally）.

intake valve:Adopting a high vacuum valve body, the intake flow can be controlled.

Composite vacuum gauge:The molecular pump unit is set to a vacuum degree and can be individually controlled to start/Shut down the unit.

Extraction solenoid valve:Adopt high vacuum solenoid valve.

Optional molecular pump unit: selected according to customer needs Rotary vane oil pump+Molecular pump/screw pump+molecular pump（≤1*10^-3）

Introduction to Control System：

★ Personalized program design：Fixed value mode and programmable mode can be switched.Programmable programs with up to ten pre-set segmentsAnd you can choose whether to loop the program or notTo achieve temperature and time controlautomaticrun

★ Adopting over temperature deviation protection and over temperatureWenProtectiontouch screenDisplay microcomputerP. I.D temperature controller with timing function.

★There are various timing methods:1. The timing unit can be freely switched, with minutes and hours as units;

★ Upgraded version of sound and light alarm environment scanning microcomputer chip, with stable data processing function

★Set parameters with password lock to prevent personnel from tampering with set values and other information.

★ Over temperature alarm, timed shutdown, power recovery, parameter additionFeatures such as encryption, temperature correction, etc.

★ Safety functions: sensor fault alarm, overtemperature alarm, standalone over rise protector, overcurrent trip protection, etc.

Parameter Introduction：
